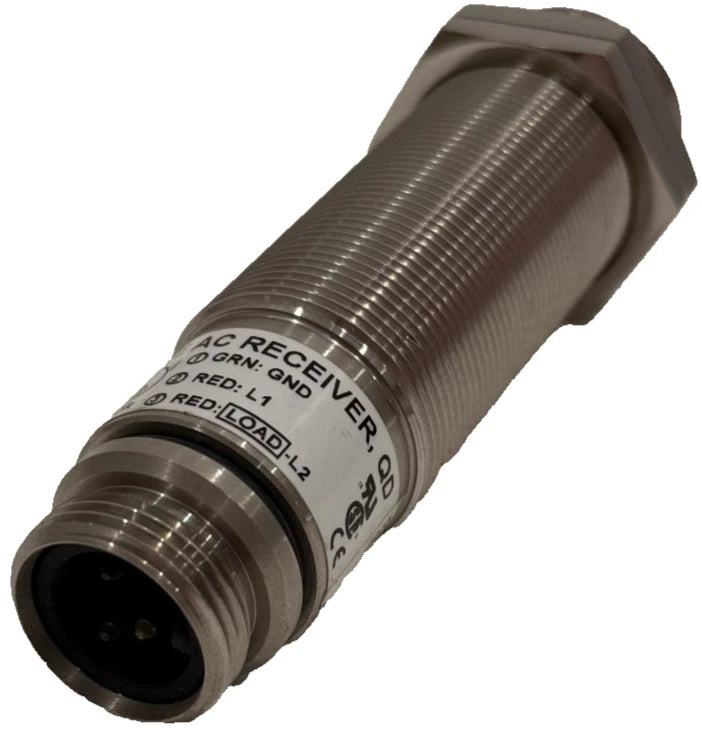

Banner Engineering SM2A30SRLQD 150m Opposed Mode Photoelectric Receiver
- Regular price
- $849.00
- Sale price
- $849.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SM2A30SRLQD
Description
The Banner Engineering SM2A30SRLQD is an SM30 Series opposed-mode photoelectric receiver designed for long-distance object detection. It provides a 150 m sensing range, operates from 24–240 VAC, and uses a solid-state AC output with light-operate functionality. The receiver has a stainless-steel barrel housing and a 3-pin 7/8-inch mini quick-disconnect connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | SM2A30SRLQD |
| Subcategory | Photoelectric Sensors |
| Series | SM30 |
| Sensor Type | Opposed-Mode Receiver |
| Sensing Range | 150 m / 492 ft |
| Sensing Beam | Infrared LED |
| Supply Voltage | 24–240 VAC |
| Output | SPST Solid-State AC Switch |
| Operation | Light Operate |
| Housing Material | Stainless Steel |
| Housing Style | 30 mm Barrel |
| Connection | 3-Pin Integral Quick Disconnect |
| QD Type | 7/8 in. Mini |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Response Time | 10 ms |
| Operating Temperature | -40°C to +70°C |
| PC Interface | Yes |
| USB | No |
| Weight | 0.66 lb |
Information About SM2A30SRLQD
The SM2A30SRLQD is a Banner Engineering SM30 Series receiver for opposed-mode photoelectric sensing applications. It uses an infrared LED sensing beam and is designed for a maximum sensing distance of 150 m. The unit operates from 24–240 VAC and provides an SPST solid-state AC switch output in light-operate mode. Its stainless-steel 30 mm barrel housing, IP67 protection, and 3-pin integral quick-disconnect make it suitable for industrial sensing installations.
Key Features:
- 150 m Sensing Range: Provides long-distance opposed-mode detection for industrial applications.
- AC Power Input: Operates from a wide 24–240 VAC supply range.
- Solid-State AC Output: Uses an SPST solid-state AC switch output with light-operate functionality.
- Stainless-Steel Housing: 30 mm barrel construction provides a durable enclosure for industrial installation.
- Infrared Sensing Beam: Uses infrared LED technology for opposed-mode photoelectric detection.
- 3-Pin Quick Disconnect: Includes an integral 7/8-inch mini quick-disconnect connection.
- Environmental Protection: Rated IP67 and NEMA 4X for protection in demanding industrial environments.
- Wide Temperature Range: Designed for operation from -40°C to +70°C.
The SM2A30SRLQD delivers the reliability and precision required for long-range industrial photoelectric detection and machine automation applications.
