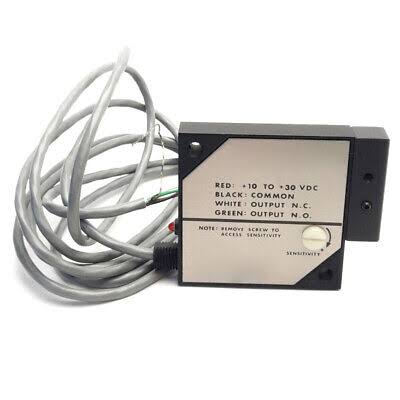

Banner Engineering SM512LBFO Infrared Glass Fiber Optic Photoelectric Sensor
- Regular price
- $447.00
- Sale price
- $447.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SM512LBFO
Description
The Banner Engineering SM512LBFO is a photoelectric sensor from the SM512 Series designed for high-speed industrial object detection using glass fiber optics. It operates on 10–30 VDC and uses an infrared 940 nm sensing beam with complementary NPN outputs. The sensor is intended for demanding industrial automation applications where fast optical detection and fiber-optic sensing are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | SM512LBFO |
| Subcategory | Photoelectric Sensors |
| Series | SM512 |
| Sensor Type | Photoelectric Sensor |
| Sensing Mode | Glass Fiber Optic / Opposed Mode |
| Light Source | Infrared |
| Wavelength | 940 nm |
| Supply Voltage | 10–30 VDC |
| Output Type | Complementary NPN |
| Response Time | 1 ms ON/OFF |
| Output Rating | Up to 250 mA continuous sinking |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Housing Material | Die-Cast Metal |
| Environmental Rating | NEMA 1, 2, 3, 3S, 4, 4X, 12, 13 |
| Cable Length | 2 m (6.5 ft) |
| Weight | 0.45 lb |
Information About SM512LBFO
The SM512LBFO is a glass fiber-optic photoelectric sensor in Banner Engineering's SM512 Series of rugged industrial sensors. It provides a 1 ms on/off response time and uses complementary NPN transistor outputs, with one normally open and one normally closed output. The sensor operates from 10–30 VDC and is compatible with Banner fiber-optic assemblies, with sensing range dependent on the selected fiber optics. The SM512 Series uses a die-cast metal housing with encapsulated circuitry and is rated for demanding industrial environments.
Key Features:
- Glass Fiber Optic: Designed for use with glass fiber optics for flexible optical sensing in industrial applications.
- Infrared Sensing: Uses a 940 nm infrared beam for object detection.
- Fast Response: Provides approximately 1 ms on/off response for high-speed sensing applications.
- 10–30 VDC Supply: Operates from a broad DC supply voltage range suitable for industrial control systems.
- Complementary NPN Outputs: Provides normally open and normally closed transistor outputs for control-system integration.
- Rugged Housing: Uses a die-cast metal housing with encapsulated circuitry for resistance to moisture and physical abuse.
- LED Indication: Includes a rear red LED indicator showing when the sensor is receiving a light signal.
- Fiber-Optic Sensing: Provides sensing performance that varies according to the fiber-optic assembly being used.
The SM512LBFO delivers the reliability and precision required for high-speed optical detection, machine automation, inspection, and industrial control applications.
