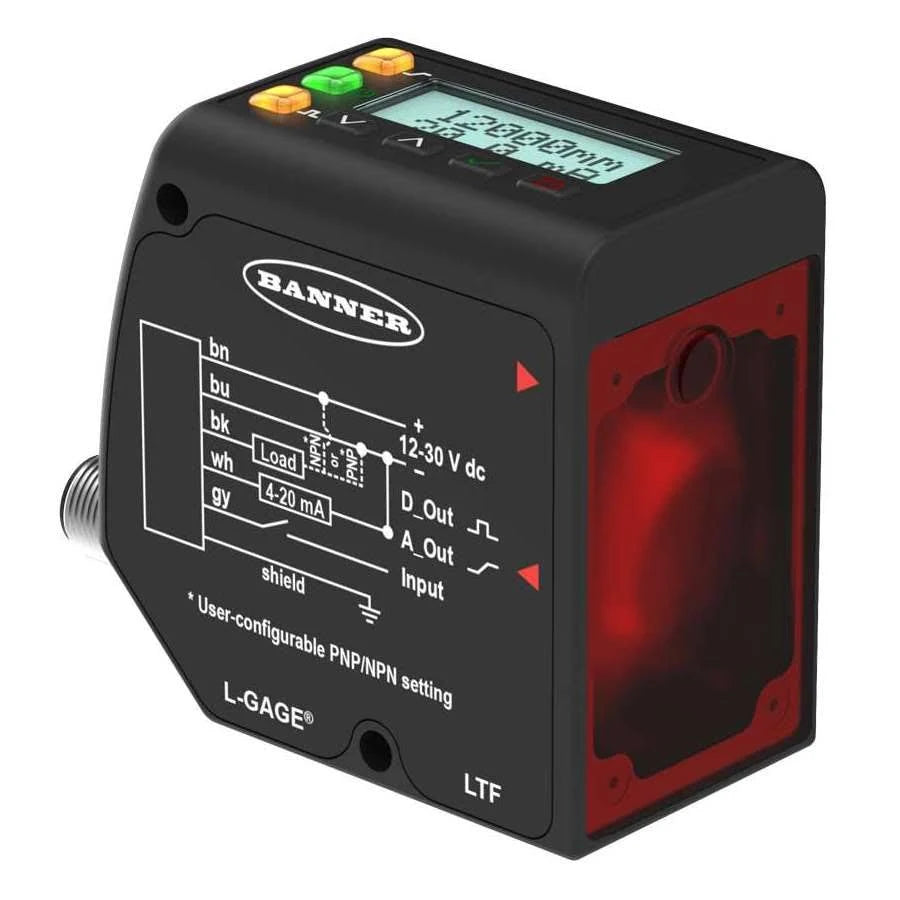

LTF12IC2LDQ | Banner LTF Series Long-Range Photoelectric Laser Sensor
- Regular price
- $687.00
- Sale price
- $687.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LTF12IC2LDQ
Description
The Banner LTF12IC2LDQ photoelectric sensor is a long-range laser time-of-flight device designed for precise proximity and distance detection up to 12,000 mm. It operates on a 12–30 VDC supply and uses a visible red Class 2 laser for accurate sensing in industrial environments. This sensor supports both analog and discrete outputs for flexible integration into automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | LTF12IC2LDQ |
| Subcategory | Photoelectric Sensors |
| Series | LTF Series |
| Sensor Type | Laser Time-of-Flight Photoelectric Sensor |
| Sensing Range | 50 to 12,000 mm |
| Sensing Beam | Visible Red Laser |
| Laser Classification | Class 2 |
| Output Type | Analog & Discrete |
| Analog Output Configuration | 4–20 mA |
| Discrete Output | 1 NPN/PNP Configurable |
| Supply Voltage | 12–30 V DC |
| Current Consumption | Approx. 85 mA |
| Connection Type | 5-pin M12 Integral QD |
| Housing Material | Zinc Alloy Die-Cast |
| Ingress Protection | IP67 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -20 to 55 °C |
| Response Time | Minimum 1.5 ms |
| Weight | Approx. 0.85 lb (0.39 kg) |
Information About LTF12IC2LDQ
The LTF12IC2LDQ is part of Banner Engineering’s LTF Series, engineered for extended-range optical sensing using time-of-flight laser technology. It features a rugged zinc alloy die-cast rectangular housing suitable for demanding industrial conditions. The sensor supports 4–20 mA analog output along with a configurable NPN/PNP discrete output, allowing versatile control system interfacing. Push-button and remote teach capabilities enable straightforward setup and precise adjustment across a wide range of applications.
Key Features:
- Long-Range Time-of-Flight Sensing: Accurately detects targets from 50 mm to 12,000 mm.
- Visible Red Class 2 Laser: Enables precise sensing and simplified alignment.
- Hybrid Output Capability: Supports 4–20 mA analog output with one configurable NPN/PNP discrete output.
- Fast Response Performance: Minimum response time of 1.5 ms for high-speed detection.
- Rugged Metal Housing: Zinc alloy die-cast construction for industrial durability.
- High Ambient Light Immunity: Operates reliably in environments up to 40,000 lux.
- Integral M12 Quick Disconnect: Provides secure and efficient electrical connection.
The LTF12IC2LDQ delivers the reliability and precision required for long-range industrial photoelectric sensing applications.
