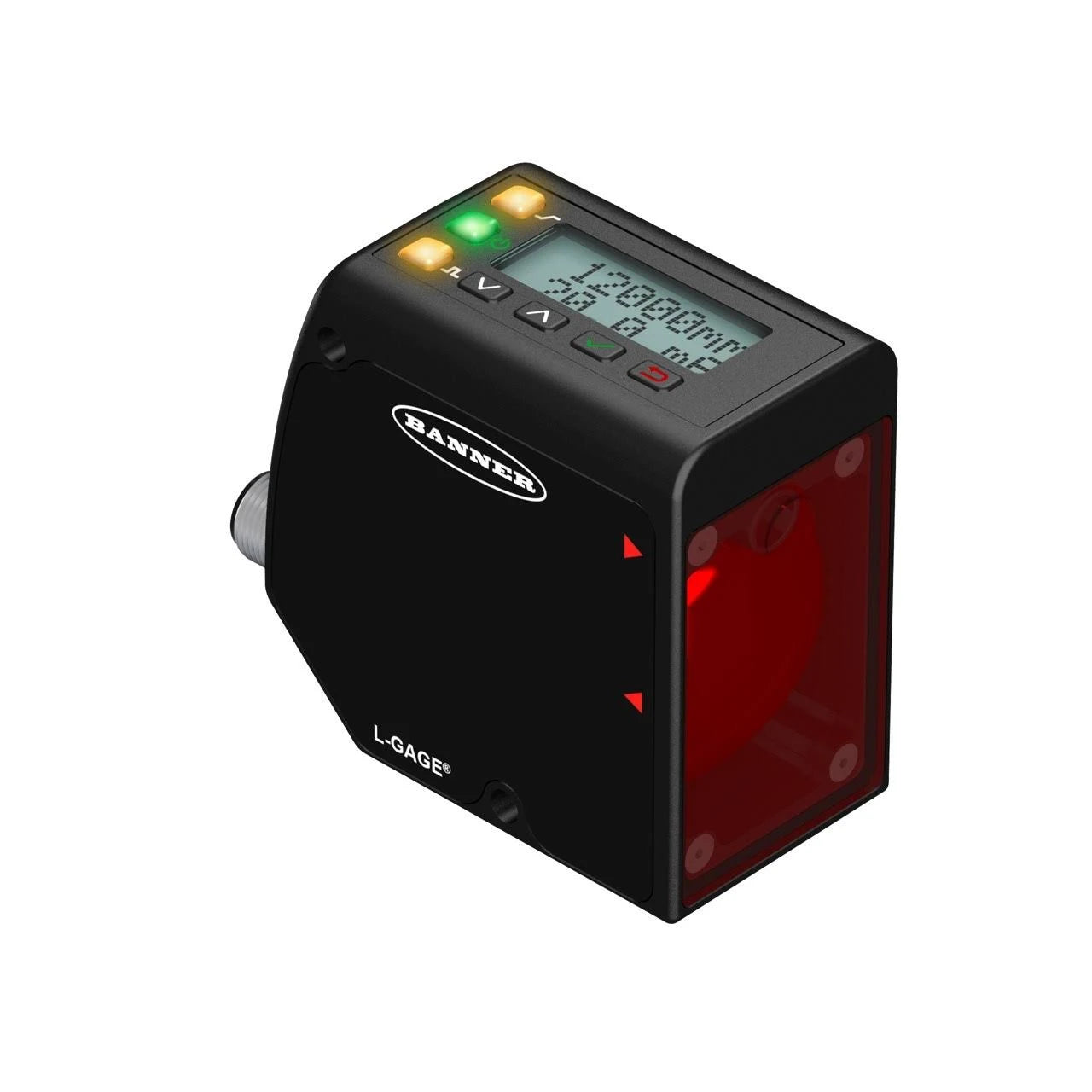

LTF12KC2LDQ | Banner LTF Series Long-Range Optical Laser Sensor
- Regular price
- $617.00
- Sale price
- $617.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LTF12KC2LDQ
Description
The Banner LTF12KC2LDQ optical sensor is a long-range laser time-of-flight device designed for precise proximity detection over distances up to 1200 cm. It uses a visible red Class 2 laser to provide fast and accurate object detection in industrial automation environments. This sensor is engineered for reliable operation in applications requiring extended sensing range and high ambient light immunity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | LTF12KC2LDQ |
| Subcategory | Optical Sensors |
| Series | LTF Series |
| Sensor Type | Laser Time-of-Flight Optical Sensor |
| Sensing Range | 50 to 12,000 mm |
| Sensing Beam | Visible Red Laser |
| Laser Classification | Class 2 |
| Output Type | Discrete |
| Discrete Outputs | 2 NPN/PNP Configurable |
| Supply Voltage | 12–30 V DC |
| Current Consumption | 85 mA |
| Connection Type | 5-pin M12 Integral QD |
| Housing Material | Zinc Alloy Die-Cast |
| Ingress Protection | IP67 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -20 to 55 °C |
| Response Time | Minimum 1.5 ms |
| Weight | Not specified by manufacturer |
Information About LTF12KC2LDQ
The LTF12KC2LDQ is part of Banner Engineering’s LTF Series, which is designed for long-distance optical sensing using laser time-of-flight technology. It features a rugged rectangular housing constructed from zinc alloy die-cast material for durability in industrial settings. The sensor supports configurable NPN/PNP discrete outputs and includes push-button and remote teach functionality for flexible setup. Its design allows dependable performance in proximity sensing applications where precise distance-based detection is required.
Key Features:
- Long-Range Laser Sensing: Detects targets from 50 mm up to 12,000 mm using time-of-flight technology.
- Visible Red Class 2 Laser: Provides accurate sensing with clear beam visibility for alignment.
- Configurable Discrete Outputs: Supports two configurable NPN/PNP switched outputs.
- Fast Response Time: Offers a minimum response time of 1.5 ms for high-speed applications.
- Rugged Industrial Housing: Zinc alloy die-cast construction designed for harsh environments.
- High Ambient Light Immunity: Operates reliably with ambient light levels up to 40,000 lux.
- Integral M12 Quick Disconnect: Uses a 5-pin M12 connector for secure and convenient wiring.
The LTF12KC2LDQ delivers the reliability and precision required for long-range industrial optical proximity sensing applications.
