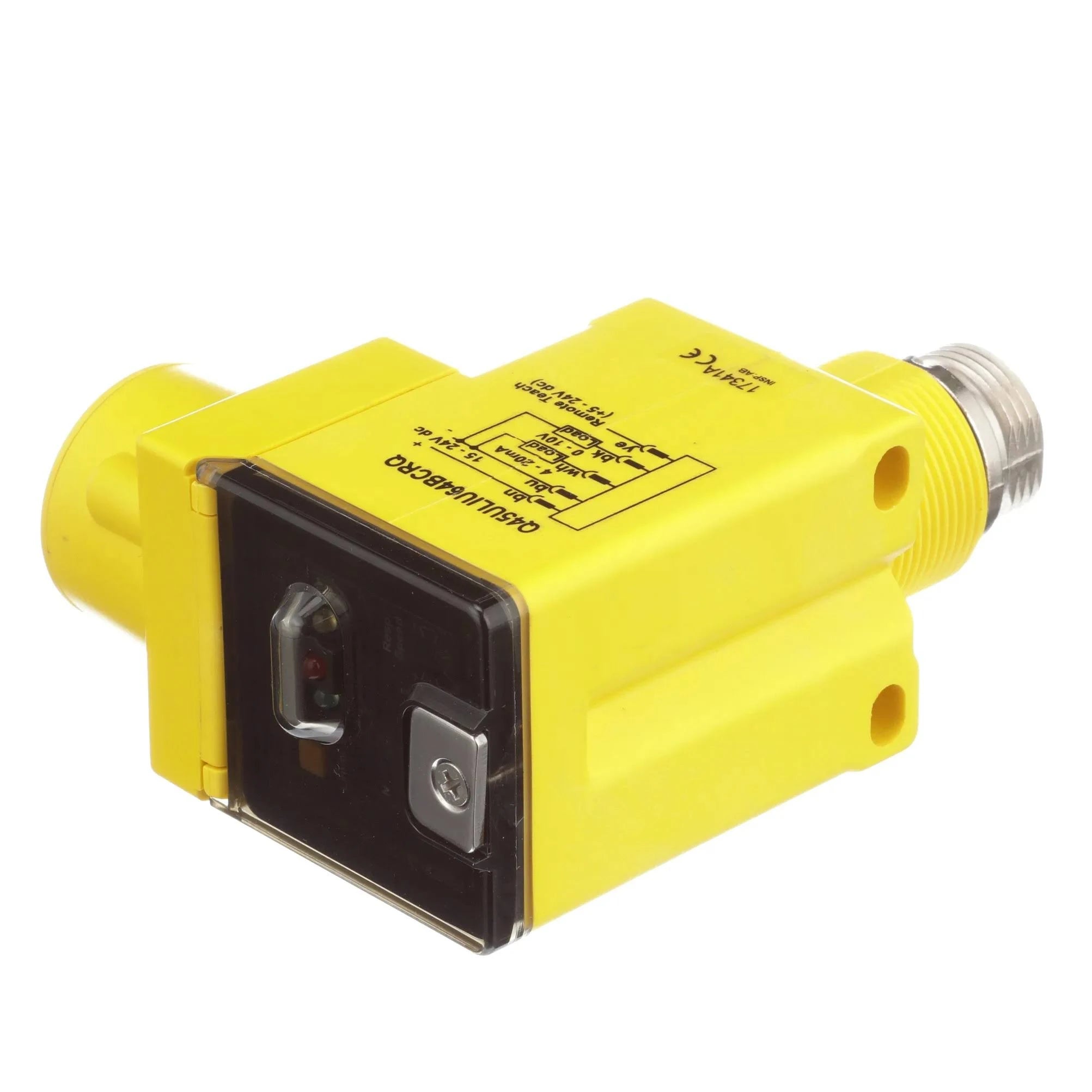

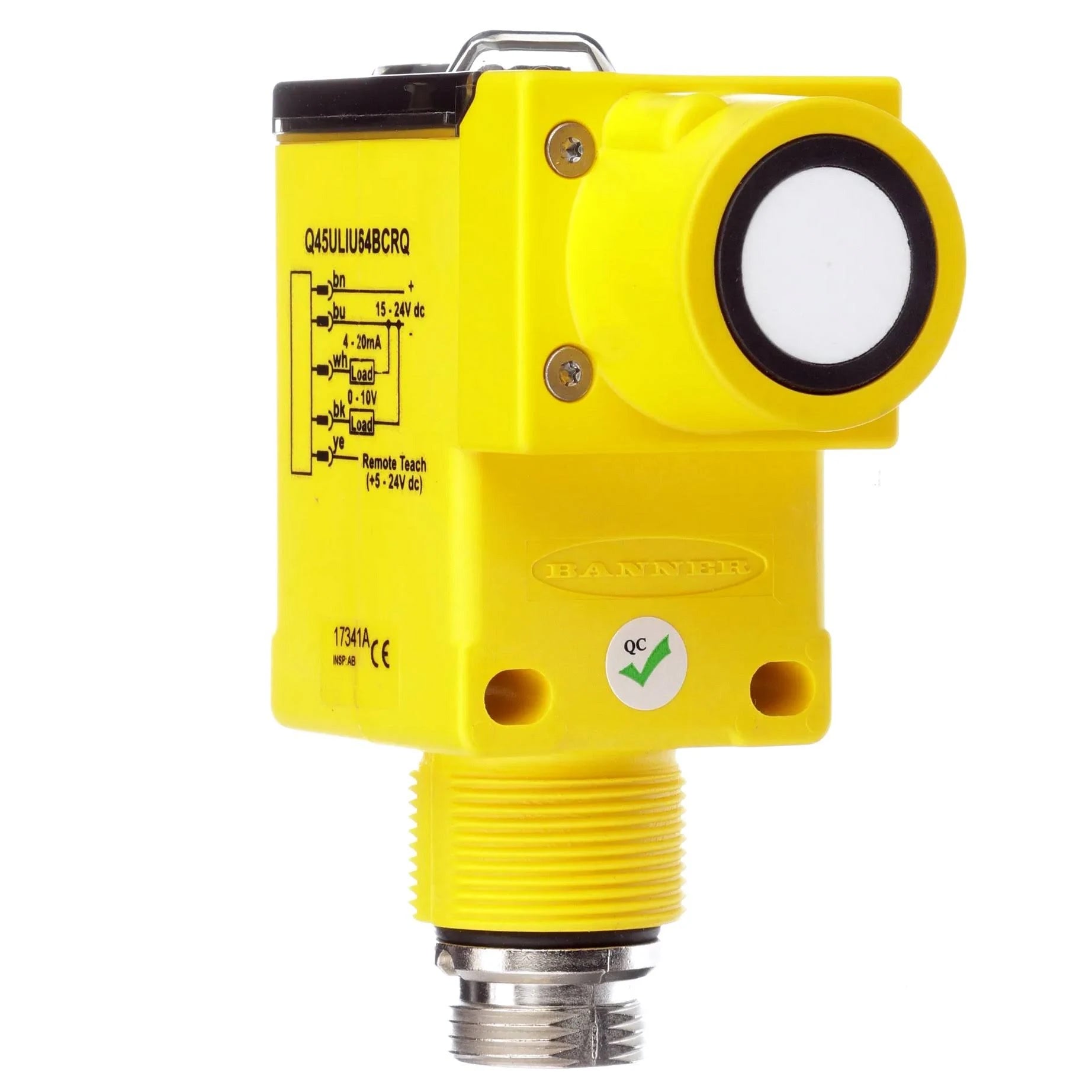

Q45ULIU64ACRQ | Banner Q45U Series Ultrasonic Proximity Sensor, 100–1400 mm
- Regular price
- $752.00
- Sale price
- $752.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q45ULIU64ACRQ
Description
The Banner Q45ULIU64ACRQ ultrasonic sensor is a Q45U Series proximity device designed for accurate analog distance measurement in industrial environments. It operates using ultrasonic time-of-flight technology to detect targets within a range of 100 mm to 1.4 m. This sensor provides flexible analog output options for integration with control and monitoring systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | Q45ULIU64ACRQ |
| Subcategory | Ultrasonic Sensors |
| Series | Q45U Series |
| Sensor Type | Ultrasonic Proximity Sensor |
| Sensing Technology | Ultrasonic Time-of-Flight |
| Sensing Range | 100 to 1400 mm |
| Output Type | Analog |
| Analog Output Configuration | Selectable 0–10 V dc or 4–20 mA |
| Supply Voltage | 15–24 V DC |
| Connection Type | 7/8 in. 5-pin Integral QD |
| Housing Material | PBT |
| Mounting Type | 30 mm Threaded |
| Ingress Protection | IP67 |
| NEMA Rating | NEMA 4X / 6P |
| Operating Temperature | -25 to 70 °C |
| Ultrasonic Frequency | 230 kHz |
| Indicators | LED Indicators |
| Weight | 3.26 lbs |
Information About Q45ULIU64ACRQ
The Q45ULIU64ACRQ is an ultrasonic proximity sensor from Banner Engineering’s Q45U Series, engineered for versatile industrial sensing applications. It features a rectangular PBT housing with a rugged design suitable for harsh operating conditions. The sensor supports selectable analog outputs and includes teach button and DIP switch adjustments for straightforward configuration. Its ultrasonic sensing technology enables reliable detection of clear, reflective, or irregular targets where optical sensors may be ineffective.
Key Features:
- Ultrasonic Time-of-Flight Sensing: Provides reliable proximity detection independent of target color or transparency.
- Wide Sensing Range: Detects objects from 100 mm up to 1.4 m.
- Selectable Analog Output: Configurable for either 0–10 V dc or 4–20 mA sourcing signals.
- Q45U Series Design: Built for industrial applications requiring stable analog measurement.
- Integral Quick Disconnect: Uses a 7/8-inch 5-pin mini-style integral QD for secure connectivity.
- Flexible Configuration Options: Supports teach button, DIP switch, and remote teach adjustments.
- Industrial Environmental Rating: Rated IP67 and NEMA 4X/6P for protection against dust and moisture.
The Q45ULIU64ACRQ delivers the reliability and precision required for industrial ultrasonic proximity and distance measurement applications.
