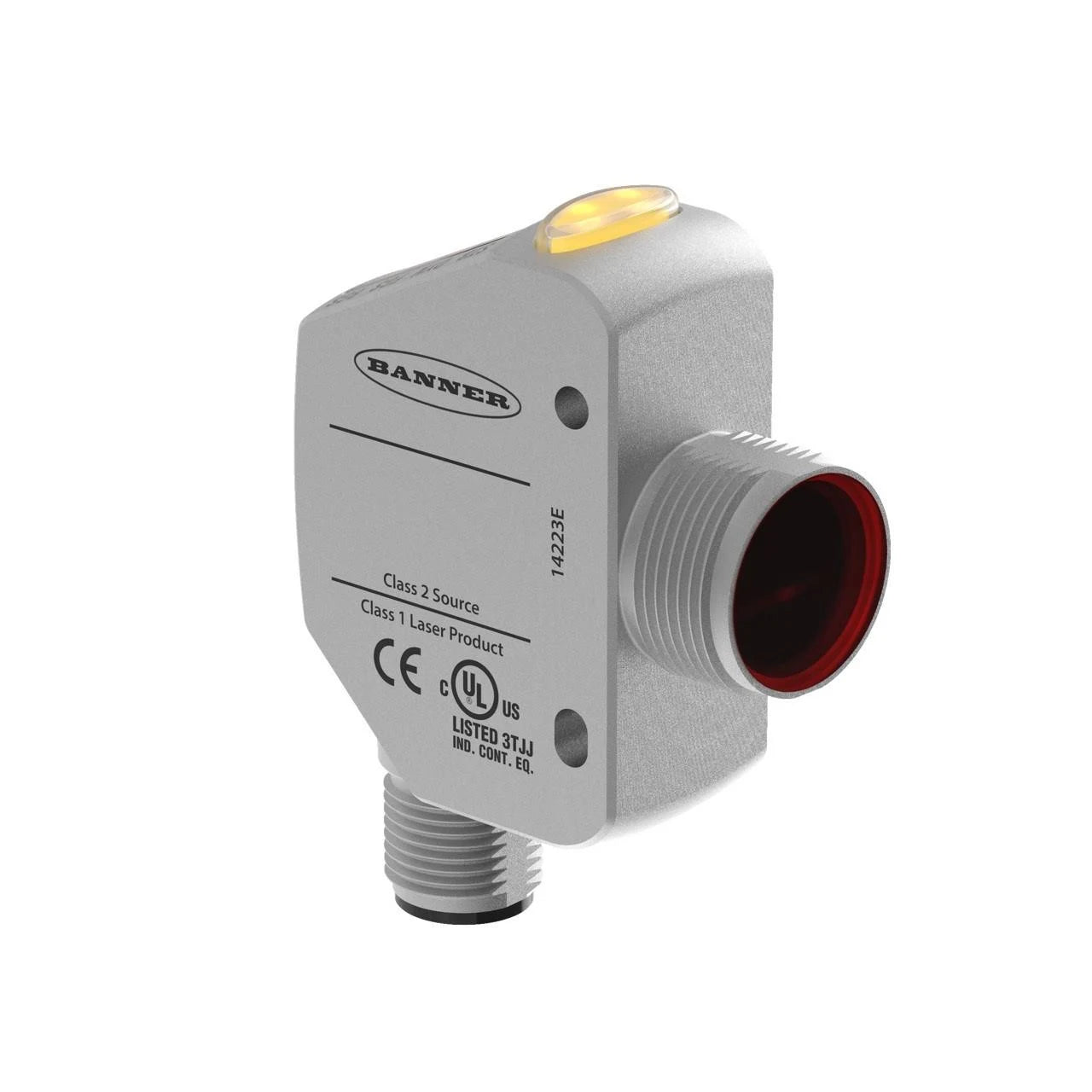

Q4XTBLAF500-Q8 | Banner Q4X Series Laser Distance Sensor, 500 mm Range
- Regular price
- $494.00
- Sale price
- $494.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: Q4XTBLAF500-Q8
Description
The Banner Q4XTBLAF500-Q8 laser distance sensor is a compact Q4X Series device designed for precise proximity and distance detection up to 500 mm. It uses a visible red Class 1 laser to deliver reliable sensing with background and foreground suppression. This sensor is suited for industrial automation applications requiring stable detection across varying target surfaces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | Q4XTBLAF500-Q8 |
| Subcategory | Laser Distance Sensors |
| Series | Q4X Series |
| Sensor Type | Laser Adjustable Field Sensor |
| Sensing Mode | Proximity with Background/Foreground Suppression |
| Sensing Range | 25 to 500 mm |
| Output Type | Bipolar Discrete (1 NPN, 1 PNP) |
| Supply Voltage | 10–30 V DC |
| Connection Type | 5-pin M12 Integral QD |
| Housing Material | Stainless Steel |
| Laser Class | Class 1 |
| Laser Wavelength | 655 nm |
| Ingress Protection | IP67, IP68, IP69K |
| Operating Temperature | -10 to 50 °C |
| Indicators | Display and LED Indicators |
| Weight | 0.35 lb |
Information About Q4XTBLAF500-Q8
The Q4XTBLAF500-Q8 is a laser adjustable-field sensor from Banner Engineering’s Q4X Series, featuring a rugged stainless steel housing for harsh industrial environments. It supports both NPN and PNP discrete outputs, allowing flexible integration with modern control systems. The sensor incorporates push-button and remote teach functionality for fast setup and adjustment. With high ingress protection ratings and robust shock and vibration resistance, it is designed for dependable operation in demanding automation settings.
Key Features:
- Adjustable Laser Sensing Field: Supports precise distance detection from 25 mm up to 500 mm.
- Bipolar Discrete Outputs: Provides one NPN and one PNP output for versatile system compatibility.
- Q4X Series Construction: Stainless steel housing designed for industrial durability.
- Push Button and Remote Teach: Enables quick configuration and fine adjustment.
- High Environmental Protection: Rated IP67, IP68, and IP69K for washdown and harsh environments.
- Visible Red Class 1 Laser: Ensures safe, accurate sensing with clear beam visibility.
- Integrated M12 QD Connection: Uses a 5-pin M12 interface requiring a mating cordset.
The Q4XTBLAF500-Q8 delivers the reliability and precision required for industrial proximity and distance sensing applications.
