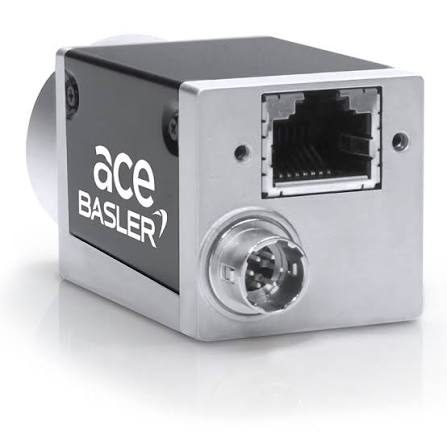

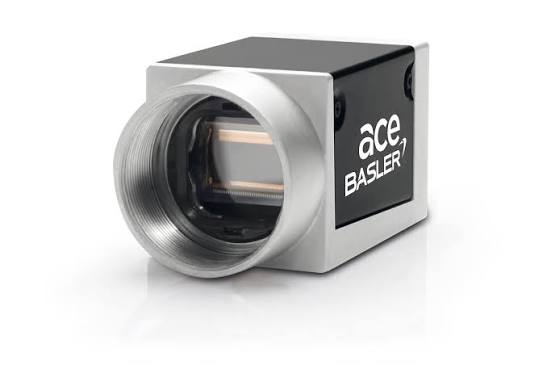

Basler A2A1920-51GCPRO ace 2 R Pro Color GigE Camera
- Regular price
- $2,992.00
- Sale price
- $2,992.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: A2A1920-51GCPRO
Description
The Basler A2A1920-51GCPRO is an ace 2 R Pro color GigE camera designed for industrial inspection and automated image acquisition. Its Sony IMX392 CMOS sensor delivers 2.3 MP images at 51 frames per second, with a global shutter that supports imaging of moving products.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | A2A1920-51GCPRO |
| Subcategory | Camera Head |
| Manufacturer Order Number | 107964 |
| Series / Product Line | ace 2 R / ace 2 R Pro |
| Image Sensor | Sony IMX392LQR-C, color progressive scan CMOS |
| Sensor Format | 1/2.3 inch |
| Resolution | 2.3 MP; 1920 × 1200 default; 1936 × 1216 full sensor resolution |
| Pixel Size | 3.45 × 3.45 µm |
| Shutter Type | Global shutter |
| Frame Rate | 51 fps at default settings; up to 100 fps with Compression Beyond under suitable conditions |
| Interface | Gigabit Ethernet, 1000 Mbit/s; RJ45 connector |
| Pixel Bit Depth | 8, 10, or 12 bits |
| Exposure and Synchronization | Hardware-controlled or API-programmable exposure; hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input; 2 GPIO lines; M8 6-pin connector |
| Power Requirements | PoE or 12–24 V DC; approximately 4.8 W typical via PoE / 3.4 W via DC |
| Housing and Lens Mount | 48.9 × 29 × 29 mm (L × W × H), excluding lens mount and connectors; C-mount |
| Protection Rating | IP30 |
| Weight | <105 g |
Information About A2A1920-51GCPRO
The A2A1920-51GCPRO is part of the Basler ace 2 R family and uses a 1/2.3-inch progressive scan sensor. Its 3.45 µm pixels provide a default resolution of 1920 × 1200 pixels. Compression Beyond supports frame rates up to 100 fps when enabled under suitable acquisition conditions. Gigabit Ethernet connectivity, configurable triggering, and a C-mount lens interface support integration into machine vision equipment.
Key Features:
- Color Imaging: Captures 2.3 MP color images using a Sony IMX392 CMOS sensor.
- Global Shutter: Exposes all pixels simultaneously to reduce motion-related geometric distortion.
- Standard Frame Rate: Delivers 51 frames per second at default settings.
- Compression Beyond: Supports frame rates up to 100 fps with compression enabled under suitable conditions.
- GigE Interface: Transfers image data through a Gigabit Ethernet connection.
- Flexible Power: Operates using either Power over Ethernet or a separate 12–24 V DC supply.
- Configurable Synchronization: Supports hardware triggering, software triggering, and free-running acquisition.
- Industrial I/O: Provides one opto-coupled input and two GPIO lines for interaction with external equipment.
The A2A1920-51GCPRO delivers the reliability and precision required for synchronized color inspection and automated production monitoring.
