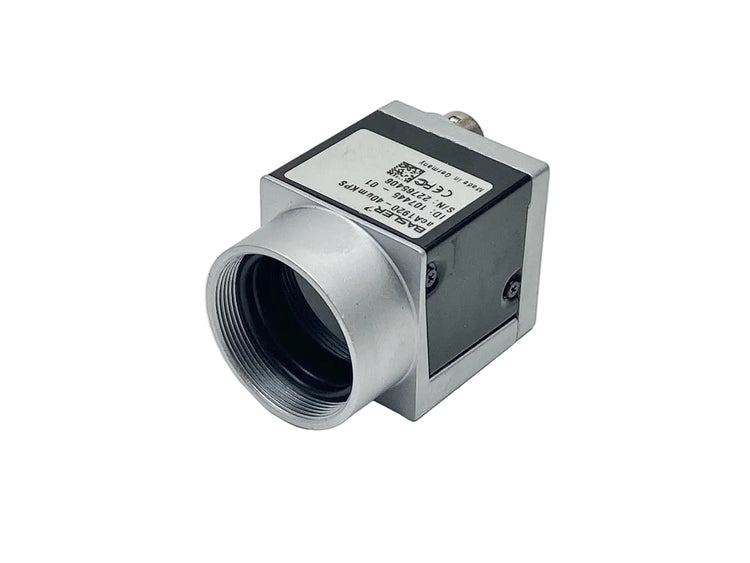

Basler ACA1920-40UM Monochrome USB 3.0 Camera with Global Shutter
- Regular price
- $717.00
- Sale price
- $717.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA1920-40UM
Description
The Basler ACA1920-40UM is a monochrome USB 3.0 camera designed for industrial inspection and image acquisition. Its Sony IMX249 CMOS sensor captures 2.3 MP images at 41 frames per second, while a global shutter supports imaging of moving components without rolling-shutter distortion.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | ACA1920-40UM |
| Subcategory | Camera Head |
| Series | ace U |
| Camera Type | Monochrome area scan camera |
| Image Sensor | Sony IMX249LLJ-C, progressive scan CMOS |
| Sensor Format | 1/1.2 inch |
| Resolution | 2.3 MP; 1920 × 1200 default; 1936 × 1216 full sensor resolution |
| Pixel Size | 5.86 × 5.86 µm |
| Shutter Type | Global shutter |
| Frame Rate | 41 fps at default settings |
| Interface | USB 3.0, nominal maximum 5 Gbit/s; screw-lock Micro-B connector |
| Lens Mount | C-mount |
| Exposure Control | Hardware-controlled or programmable through the camera API |
| Synchronization | Hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input, 1 opto-coupled output, 2 GPIO lines |
| Power Requirements | 5 V DC via USB; approximately 2.5 W typical, 2.7 W maximum |
| Housing Dimensions | 29.3 × 29 × 29 mm excluding lens mount and connectors; 48.2 × 29 × 29 mm including them (L × W × H) |
| Environmental Ratings | IP30; operating housing temperature 0–50 °C |
| Weight | <0.18 lbs |
Information About ACA1920-40UM
The ACA1920-40UM is part of the Basler ace U family and uses a 1/1.2-inch progressive scan sensor. Its 5.86 µm pixels provide a default image resolution of 1920 × 1200 pixels. A screw-lock USB 3.0 Micro-B connection carries image data and supplies camera power. C-mount lens compatibility, programmable exposure, and configurable triggering support integration into automated imaging equipment.
Key Features:
- Monochrome Imaging: Captures grayscale images using a Sony IMX249 CMOS sensor.
- Global Shutter: Exposes all pixels simultaneously to reduce motion-related geometric distortion.
- Image Resolution: Provides 2.3 MP images at a default resolution of 1920 × 1200 pixels.
- Frame Rate: Delivers 41 frames per second at default settings.
- USB 3.0 Interface: Transfers image data through a SuperSpeed connection with a nominal maximum rate of 5 Gbit/s.
- Flexible Synchronization: Supports hardware triggering, software triggering, and free-running acquisition.
- Digital I/O: Provides one opto-coupled input, one opto-coupled output, and two GPIO lines.
- Compact Construction: Combines a 29 × 29 mm housing cross-section with a C-mount lens interface.
The ACA1920-40UM delivers the reliability and precision required for monochrome visual inspection and synchronized industrial image acquisition.
