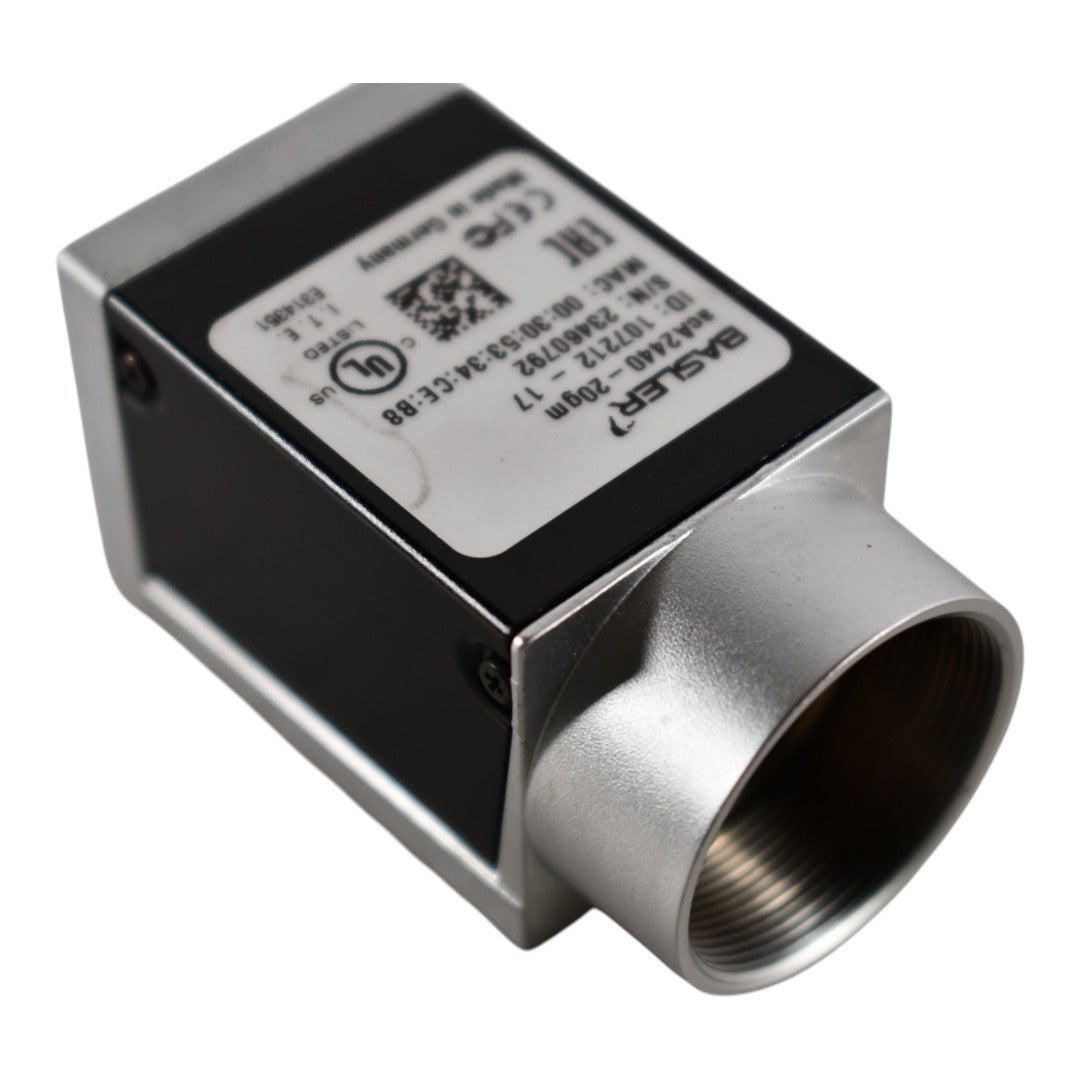

Basler ACA2440-20GM Monochrome GigE Camera with Global Shutter
- Regular price
- $932.00
- Sale price
- $932.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA2440-20GM
Description
The Basler ACA2440-20GM is a monochrome GigE camera equipped with a Sony IMX264 CMOS sensor for industrial image acquisition. Its 5 MP resolution and global shutter support detailed inspection of components and moving products at approximately 23 frames per second.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | ACA2440-20GM |
| Subcategory | Camera Head |
| Series | ace U |
| Camera Type | Monochrome area scan camera |
| Image Sensor | Sony IMX264LLR-C, progressive scan CMOS |
| Sensor Format | 2/3 inch |
| Resolution | 5 MP; 2448 × 2048 default; 2464 × 2056 full sensor resolution |
| Pixel Size | 3.45 × 3.45 µm |
| Shutter Type | Global shutter |
| Frame Rate | 22.7 fps at default settings, approximately 23 fps |
| Interface | Gigabit Ethernet, 1000 Mbit/s |
| Lens Mount | C-mount |
| Exposure and Synchronization | API-programmable or hardware-controlled exposure; hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input, 1 opto-coupled output, 1 GPIO |
| Power Requirements | PoE, IEEE 802.3af, or 12–24 V DC; typical consumption 3.3 W via PoE / 2.7 W via DC |
| Housing Dimensions | 42 × 29 × 29 mm (L × W × H), excluding lens mount and connectors |
| Environmental Ratings | IP30; operating housing temperature 0–50 °C |
| Weight | <0.20 lbs |
Information About ACA2440-20GM
The ACA2440-20GM is part of the Basler ace U family of industrial area scan cameras. Its 2/3-inch sensor uses 3.45 µm pixels and provides a default resolution of 2448 × 2048 pixels. A C-mount interface allows compatible lenses to be selected for the required inspection area and working distance. Hardware triggering, software triggering, and free-running acquisition support integration into automated imaging systems.
Key Features:
- Monochrome Imaging: Uses a Sony IMX264 CMOS sensor to capture detailed grayscale images.
- Global Shutter: Exposes all pixels simultaneously to reduce motion-related geometric distortion.
- Image Resolution: Provides 5 MP images with a default resolution of 2448 × 2048 pixels.
- Frame Rate: Captures 22.7 frames per second at default settings, approximately 23 fps.
- GigE Interface: Transfers image data over a Gigabit Ethernet connection to compatible host systems.
- Flexible Power: Supports either Power over Ethernet or a separate 12–24 V DC supply.
- Configurable Acquisition: Offers hardware trigger, software trigger, and free-running operating modes.
- Compact Construction: A 29 × 29 mm housing cross-section supports installation in confined equipment spaces.
The ACA2440-20GM delivers the reliability and precision required for monochrome visual inspection and automated image acquisition.
