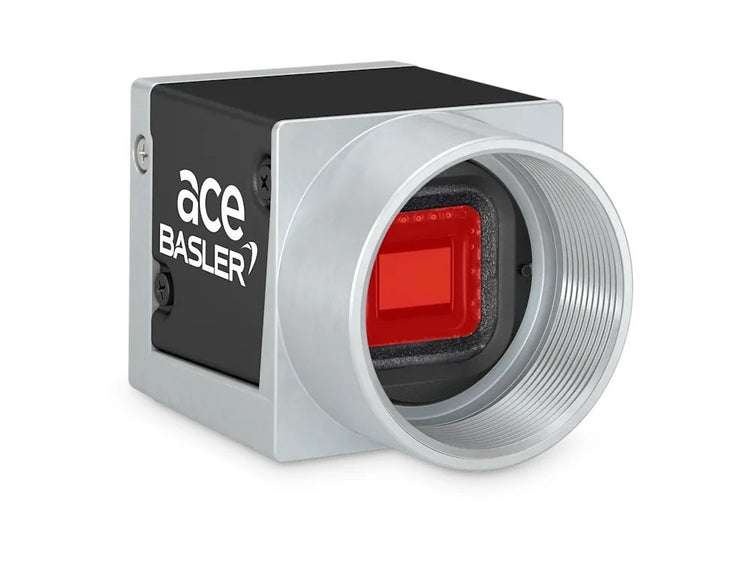

Basler ACA2440-35UC USB 3.0 Color Area Scan Camera
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA2440-35UC
Description
The Basler ACA2440-35UC is a USB 3.0 color area scan camera equipped with a Sony IMX264 CMOS sensor. It captures 5 MP images at 35 frames per second, supporting detailed visual inspection and image acquisition in industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Machine Vision |
| Part Number | ACA2440-35UC |
| Subcategory | Industrial Cameras |
| Manufacturer Order Number | 107209 |
| Series | ace U |
| Camera Type | Color area scan camera |
| Image Sensor | Sony IMX264LQR-C, progressive scan CMOS |
| Sensor Format | 2/3 inch |
| Resolution | 5 MP; 2448 × 2048 default; 2464 × 2056 full sensor resolution |
| Pixel Size | 3.45 × 3.45 µm |
| Shutter Type | Global shutter |
| Frame Rate | 35 fps at default settings |
| Interface | USB 3.0, nominal maximum 5 Gbit/s; screw-lock Micro-B connector |
| Lens Mount | C-mount |
| Power Requirements | 5 V DC via USB; approximately 2.7 W typical consumption |
| Synchronization | Hardware trigger, software trigger, or free run |
| Dimensions | 29.3 × 29 × 29 mm (L × W × H), excluding lens mount and connectors |
| Operating Housing Temperature | 0–50 °C |
| Weight | 0.18 lbs |
Information About ACA2440-35UC
The ACA2440-35UC is part of the Basler ace U camera family and uses a 2/3-inch global shutter sensor. Its 3.45 µm pixels provide a default image resolution of 2448 × 2048 pixels. The USB 3.0 interface carries image data and supplies camera power through a screw-lock Micro-B connection. Compatibility with Basler pylon software supports camera configuration and integration into custom imaging applications.
Key Features:
- Color Imaging: Captures 5 MP color images using a Sony IMX264 CMOS sensor.
- Global Shutter: Exposes all pixels simultaneously to reduce motion-related geometric distortion.
- Frame Rate: Delivers 35 frames per second at the default image settings.
- USB 3.0 Interface: Transfers image data through a SuperSpeed connection with a nominal maximum rate of 5 Gbit/s.
- Adjustable Image Region: Allows the image region of interest to be configured for the inspection area.
- C-Mount Connection: Accepts compatible C-mount lenses for application-specific fields of view.
- Compact Housing: A 29 × 29 mm cross-section supports installation in confined equipment spaces.
- pylon Compatibility: Supports setup and software integration through the Basler pylon Software Suite.
The ACA2440-35UC delivers the reliability and precision required for industrial color imaging and automated visual inspection.
