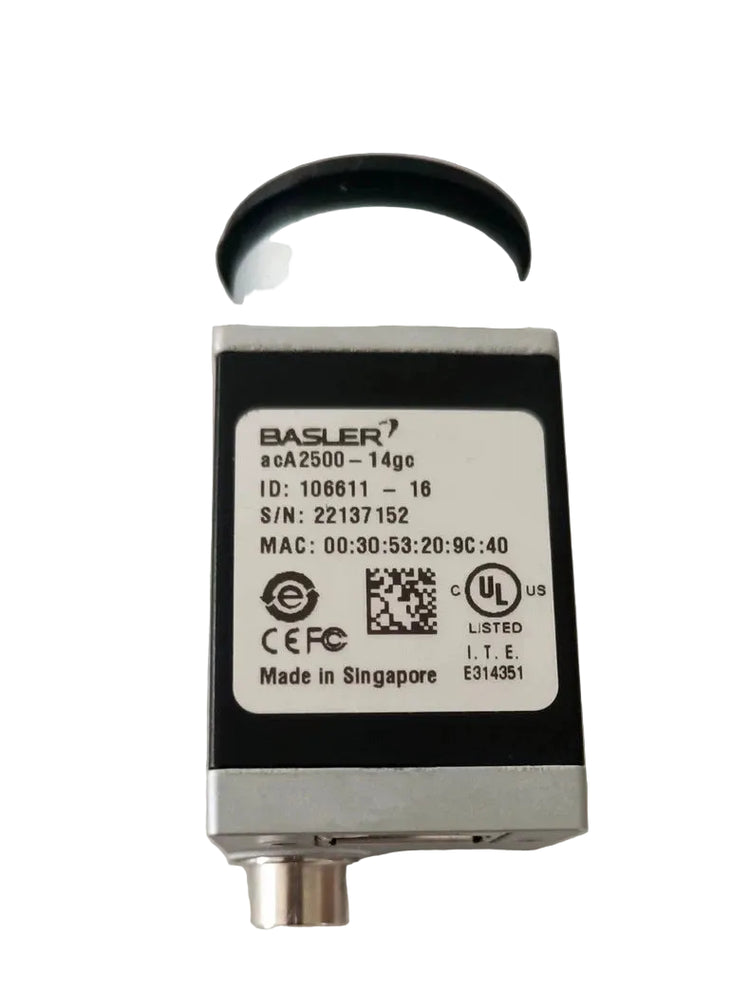

Basler ACA2500-14GC Color GigE Camera with MT9P031 CMOS Sensor
- Regular price
- $735.00
- Sale price
- $735.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA2500-14GC
Description
The Basler ACA2500-14GC is a color GigE camera designed for industrial inspection and detailed image acquisition. Its onsemi MT9P031 CMOS sensor provides 5 MP resolution with a rolling shutter, making it suitable for imaging stationary or slowly moving products under controlled lighting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | ACA2500-14GC |
| Subcategory | Camera Head |
| Series | ace Classic |
| Camera Type | Color area scan camera |
| Image Sensor | onsemi MT9P031, progressive scan CMOS |
| Sensor Format | 1/2.5 inch |
| Resolution | 5 MP; 2592 × 1942 pixels |
| Pixel Size | 2.2 × 2.2 µm |
| Shutter Type | Rolling shutter |
| Frame Rate | 14.6 fps at default settings |
| Interface | Gigabit Ethernet, 1000 Mbit/s; GigE Vision |
| Pixel Bit Depth | 12 bits |
| Lens Mount | C-mount or CS-mount, depending on configuration |
| Exposure and Synchronization | API-programmable exposure; hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input; 1 opto-coupled output |
| Power Requirements | PoE or 12 V DC; approximately 2.7 W via PoE / 2.2 W via DC |
| Housing Dimensions | 42 × 29 × 29 mm excluding lens mount and connectors; 60.3 × 29 × 29 mm including them (L × W × H) |
| Operating Housing Temperature | 0–50 °C |
| Weight | 0.20 lbs |
Information About ACA2500-14GC
The ACA2500-14GC is part of the Basler ace Classic family and uses a 1/2.5-inch progressive scan sensor. Its 2.2 µm pixels provide a documented image resolution of 2592 × 1942 pixels. Gigabit Ethernet connectivity transfers image data to compatible host systems, while PoE or a separate 12 V DC connection supplies power. Programmable exposure and hardware, software, or free-running synchronization support integration into automated inspection equipment.
Key Features:
- Color Imaging: Uses an onsemi MT9P031 CMOS sensor to capture product appearance and color information.
- Image Resolution: Provides 5 MP images at a documented resolution of 2592 × 1942 pixels.
- Rolling Shutter: Exposes sensor rows sequentially for image acquisition in controlled-motion applications.
- Frame Rate: Delivers 14.6 frames per second at default settings.
- GigE Interface: Transfers image data through a Gigabit Ethernet connection.
- Flexible Power: Supports either Power over Ethernet or a separate 12 V DC supply.
- Programmable Exposure: Allows exposure settings to be configured through the camera API.
- External Synchronization: Supports hardware triggering, software triggering, and free-running acquisition.
The ACA2500-14GC delivers the reliability and precision required for color inspection and controlled industrial image acquisition.
