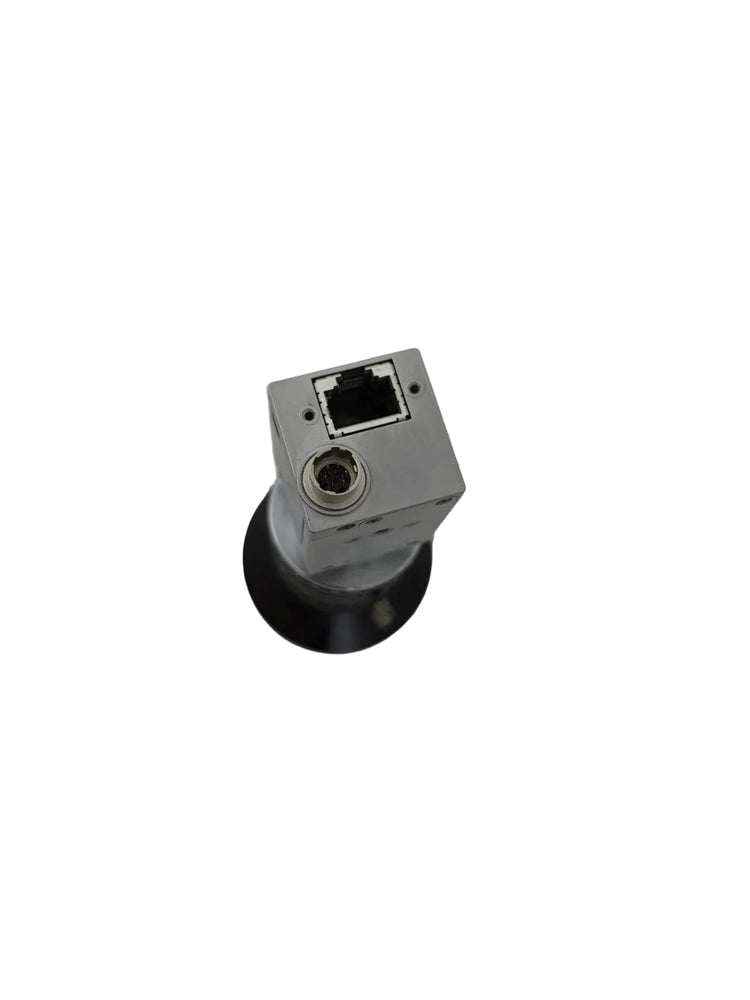

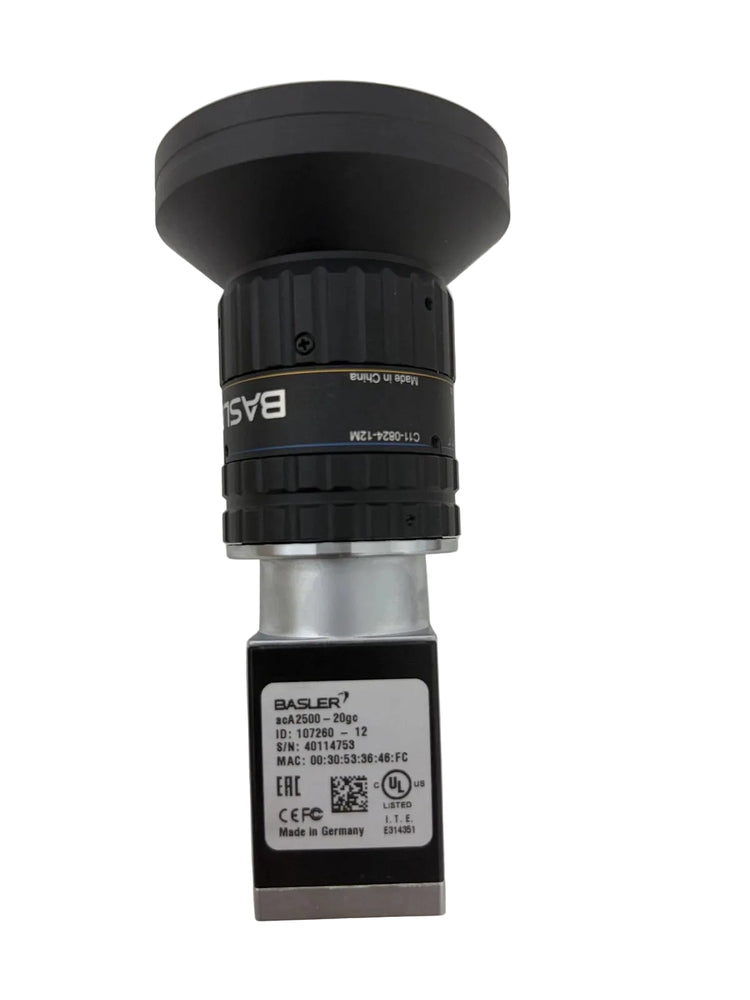

Basler ACA2500-20GC Color GigE Camera with Global Shutter
- Regular price
- $1,552.00
- Sale price
- $1,552.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA2500-20GC
Description
The Basler ACA2500-20GC is a color GigE camera designed for industrial inspection and automated image acquisition. Its onsemi PYTHON 5000 CMOS sensor captures 5 MP images with a global shutter, supporting detailed imaging of products and moving components.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | ACA2500-20GC |
| Subcategory | Camera Head |
| Manufacturer Order Number | 107260 |
| Series | ace U |
| Image Sensor | onsemi PYTHON 5000, color progressive scan CMOS |
| Sensor Format | 1 inch |
| Resolution | 5 MP; 2592 × 2048 pixels |
| Pixel Size | 4.8 × 4.8 µm |
| Shutter Type | Global shutter |
| Frame Rate | 20 fps in normal readout mode; 21 fps in fast readout mode |
| Interface | Gigabit Ethernet, 1000 Mbit/s; RJ45 connector |
| Pixel Bit Depth | 10 bits |
| Lens Mount | C-mount |
| Exposure and Synchronization | Hardware-controlled or API-programmable exposure; hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input, 1 opto-coupled output, 1 GPIO |
| Power Requirements | PoE or 12–24 V DC; approximately 3.9 W typical via PoE / 3.4 W via DC |
| Housing and Environment | 42 × 29 × 29 mm (L × W × H), excluding lens mount and connectors; IP30; operating housing temperature 0–50 °C |
| Weight | <90 g |
Information About ACA2500-20GC
The ACA2500-20GC is part of the Basler ace U family and uses a 1-inch progressive scan CMOS sensor. Its 4.8 µm pixels provide a documented resolution of 2592 × 2048 pixels. The camera operates at 20 fps in normal sensor readout mode or 21 fps in fast mode. A C-mount lens interface, programmable exposure, and Ethernet connectivity support integration into machine vision equipment.
Key Features:
- Color Imaging: Uses an onsemi PYTHON 5000 CMOS sensor to capture product appearance and color details.
- Global Shutter: Exposes all pixels simultaneously to reduce motion-related geometric distortion.
- Image Resolution: Provides 5 MP images at a documented resolution of 2592 × 2048 pixels.
- Selectable Readout: Delivers 20 fps in normal readout mode or 21 fps in fast mode.
- GigE Interface: Transfers image data through a Gigabit Ethernet connection.
- Flexible Power: Supports either Power over Ethernet or a separate 12–24 V DC supply.
- Configurable Synchronization: Offers hardware triggering, software triggering, and free-running acquisition.
- Industrial I/O: Includes one opto-coupled input, one opto-coupled output, and one GPIO line.
The ACA2500-20GC delivers the reliability and precision required for industrial color inspection and synchronized production imaging.
