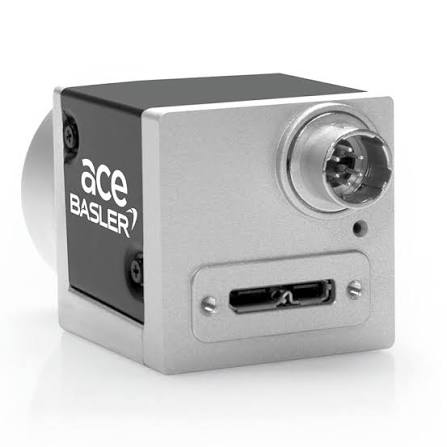

Basler ACA2500-60UC USB 3.0 Color Camera with Global Shutter
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA2500-60UC
Description
The Basler ACA2500-60UC is a USB 3.0 color camera designed for industrial inspection and synchronized image acquisition. Its onsemi PYTHON 5000 CMOS sensor captures 5 MP images with a global shutter at up to 60 frames per second in fast readout mode.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | ACA2500-60UC |
| Subcategory | Camera Head |
| Series | ace U |
| Camera Type | Color area scan camera |
| Image Sensor | onsemi PYTHON 5000, progressive scan CMOS |
| Sensor Format | 1 inch |
| Resolution | 5 MP; 2592 × 2048 pixels |
| Pixel Size | 4.8 × 4.8 µm |
| Shutter Type | Global shutter |
| Frame Rate | 60 fps in fast readout mode; 47 fps in normal readout mode |
| Interface | USB 3.0, nominal maximum 5 Gbit/s; screw-lock Micro-B connector |
| Pixel Bit Depth | 10 bits |
| Lens Mount | C-mount |
| Exposure and Synchronization | Hardware-controlled or API-programmable exposure; hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input, 1 opto-coupled output, 2 GPIO lines |
| Power Requirements | 5 V DC via USB; approximately 3.8 W typical, 4.1 W maximum |
| Housing Dimensions | 29.3 × 29 × 29 mm excluding lens mount and connectors; 48.2 × 29 × 29 mm including them (L × W × H) |
| Environmental Ratings | IP30; operating housing temperature 0–50 °C |
| Weight | <80 g |
Information About ACA2500-60UC
The ACA2500-60UC is part of the Basler ace U family and uses a 1-inch progressive scan CMOS sensor. Its 4.8 µm pixels provide a documented resolution of 2592 × 2048 pixels. A screw-lock USB 3.0 Micro-B connection transfers image data and supplies camera power. Programmable exposure, multiple trigger modes, and digital I/O support integration with automated equipment and external lighting controls.
Key Features:
- Color Imaging: Captures 5 MP color images using an onsemi PYTHON 5000 CMOS sensor.
- Global Shutter: Exposes all pixels simultaneously to reduce motion-related geometric distortion.
- Fast Readout: Delivers up to 60 fps in fast sensor readout mode.
- Normal Readout: Supports 47 fps in normal sensor readout mode.
- USB 3.0 Interface: Transfers image data through a SuperSpeed connection with a nominal maximum rate of 5 Gbit/s.
- Flexible Synchronization: Supports hardware triggering, software triggering, and free-running acquisition.
- Digital I/O: Includes one opto-coupled input, one opto-coupled output, and two GPIO lines.
- Compact Lens Integration: Combines a 29 × 29 mm housing cross-section with a C-mount lens interface.
The ACA2500-60UC delivers the reliability and precision required for color inspection and coordinated imaging on automated production equipment.
