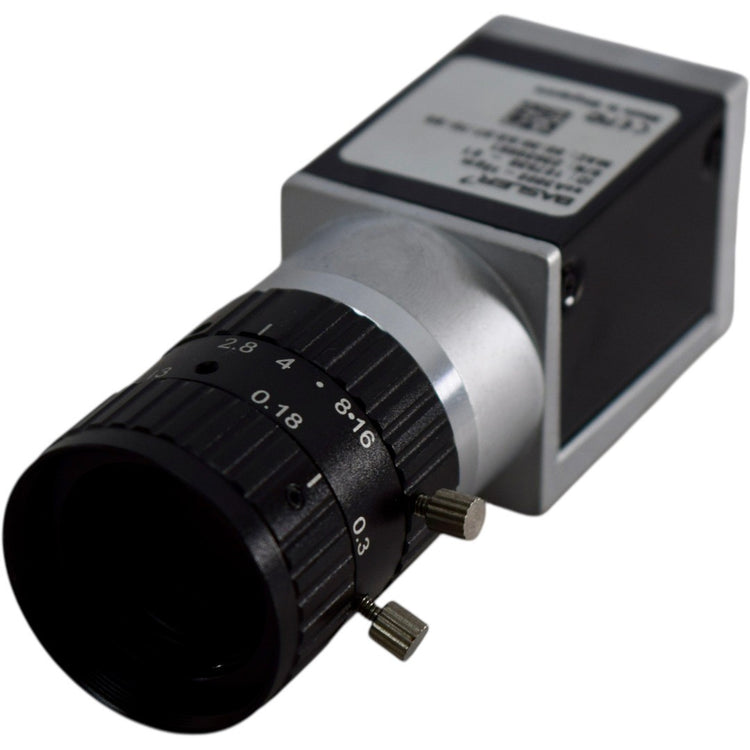

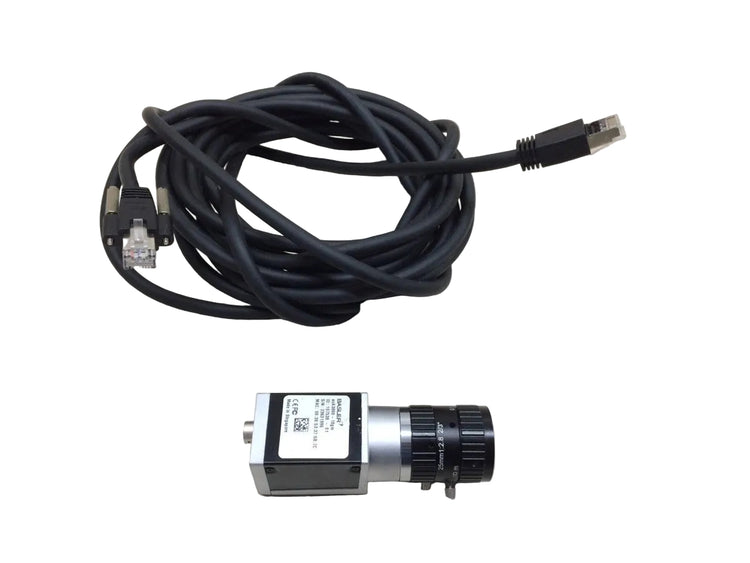

Basler ACA3800-10GM Monochrome GigE Camera with Rolling Shutter
- Regular price
- $767.00
- Sale price
- $767.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA3800-10GM
Description
The Basler ACA3800-10GM is a monochrome GigE camera designed for high-resolution industrial image acquisition. Its onsemi MT9J003 CMOS sensor delivers 10 MP images at 10 frames per second, supporting detailed inspection of stationary or slowly moving products.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | ACA3800-10GM |
| Subcategory | Camera Head |
| Series | ace Classic |
| Camera Type | Monochrome area scan camera |
| Image Sensor | onsemi MT9J003, progressive scan CMOS |
| Sensor Format | 1/2.3 inch |
| Resolution | 10 MP; 3840 × 2748 pixels |
| Pixel Size | 1.67 × 1.67 µm |
| Shutter Type | Rolling shutter |
| Frame Rate | 10 fps at default settings |
| Interface | Gigabit Ethernet, 1000 Mbit/s; GigE Vision |
| Lens Mount | C-mount |
| Exposure and Synchronization | API-programmable or hardware-controlled exposure; hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input; 1 opto-coupled output |
| Power Requirements | PoE or 12–24 V DC; approximately 3.7 W via PoE / 3.3 W via DC |
| Housing Dimensions | 42 × 29 × 29 mm excluding lens mount and connectors; 60.3 × 29 × 29 mm including them (L × W × H) |
| Operating Housing Temperature | 0–50 °C |
| Weight | 0.20 lbs |
Information About ACA3800-10GM
The ACA3800-10GM is part of the Basler ace Classic family and uses a 1/2.3-inch rolling shutter sensor. Its 1.67 µm pixels provide a specified image resolution of 3840 × 2748 pixels. The Gigabit Ethernet interface supports image transfer to compatible host systems, with power supplied through PoE or a separate DC connection. A C-mount lens interface and programmable exposure allow the camera to be configured for different inspection areas and lighting conditions.
Key Features:
- Monochrome Imaging: Captures grayscale images using an onsemi MT9J003 CMOS sensor.
- High Resolution: Provides 3840 × 2748 pixels for detailed inspection and image analysis.
- Rolling Shutter: Exposes sensor rows sequentially for image acquisition in controlled-motion applications.
- Frame Rate: Delivers 10 frames per second at default settings.
- GigE Interface: Transfers image data through a Gigabit Ethernet connection.
- Flexible Power: Supports either Power over Ethernet or a separate 12–24 V DC supply.
- Configurable Acquisition: Offers hardware triggering, software triggering, and free-running operation.
- C-Mount Interface: Accepts compatible lenses for the required field of view and working distance.
The ACA3800-10GM delivers the reliability and precision required for high-resolution monochrome inspection and controlled industrial imaging.
