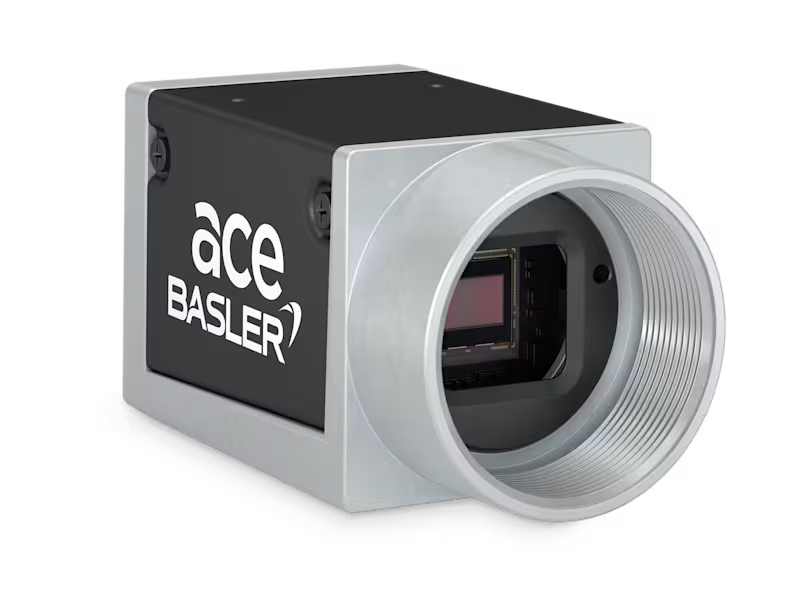

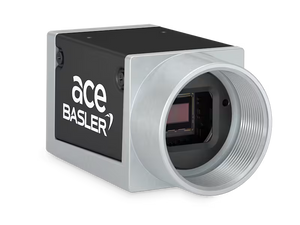

Basler ACA4024-8GM Monochrome GigE Area Scan Camera for Machine Vision Inspection
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA4024-8GM
Description
The Basler ACA4024-8GM is a monochrome GigE area scan camera for machine vision inspection, measurement, and image analysis. Its Sony IMX226 CMOS sensor captures 4024 × 3036-pixel images at a nominal 8 frames per second, providing detailed grayscale imaging for applications requiring fine feature detection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Machine Vision |
| Part Number | ACA4024-8GM |
| Subcategory | Monochrome Area Scan Cameras |
| Series | ace U |
| Sensor | Sony IMX226 CMOS |
| Shutter Type | Rolling shutter |
| Sensor Format | 1/1.7 in.; 9.33 mm diagonal |
| Sensor Dimensions | 7.44 × 5.61 mm |
| Resolution | 4024 × 3036 pixels; 12.2 MP |
| Pixel Size | 1.85 × 1.85 µm |
| Frame Rate | 8 fps nominal; 8.7 fps at default settings per Basler documentation |
| Image Output | Monochrome; visible spectrum |
| Interface | GigE Vision; RJ45; 100/1000 Mbit/s Ethernet |
| Lens Mount | C-mount |
| Synchronization | Hardware trigger, software trigger, or free run |
| Power Supply | IEEE 802.3af PoE or 12–24 VDC |
| Dimensions (L × W × H) | 60.3 × 29 × 29 mm, including lens mount and connectors |
| Operating Housing Temperature | 0°C to +50°C |
| Weight | 90 g (0.20 lb) |
Information About ACA4024-8GM

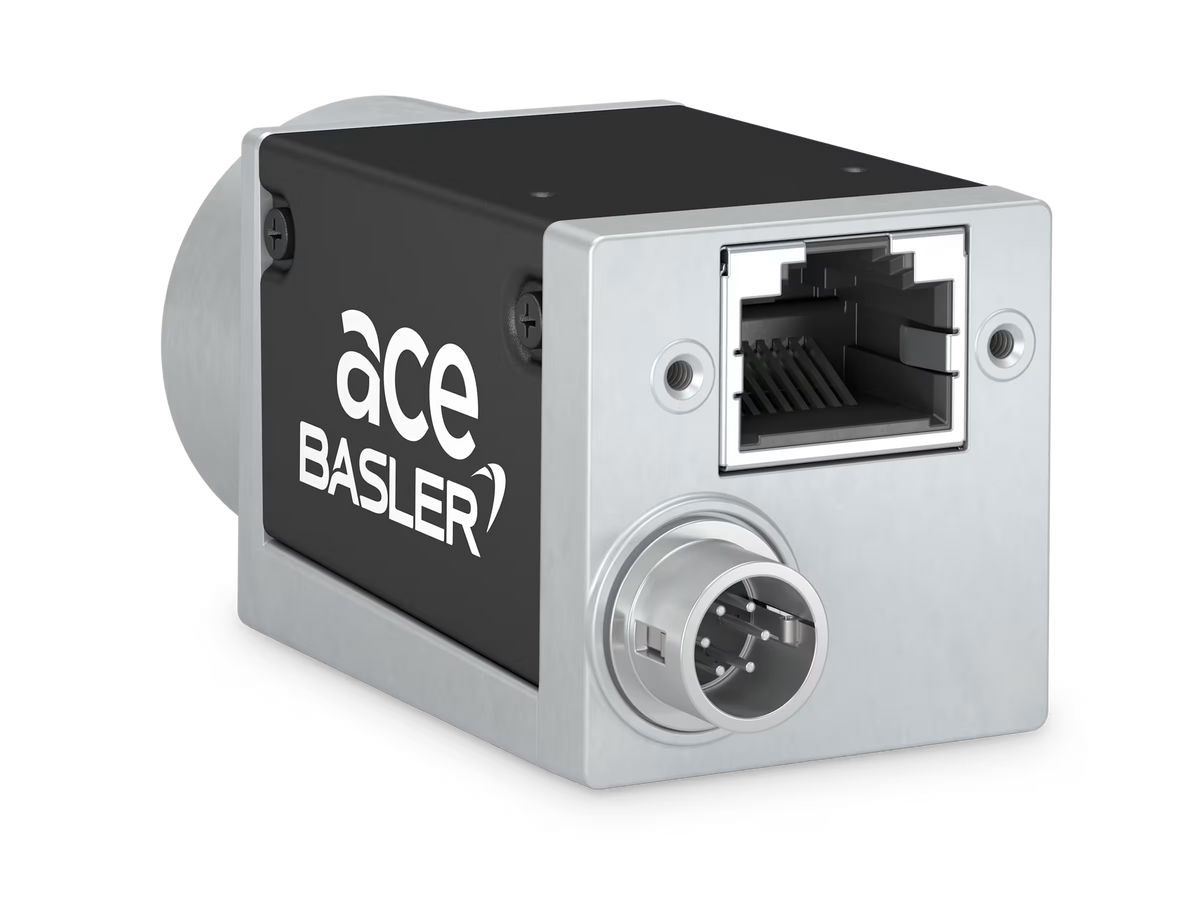

The ACA4024-8GM is part of Basler’s ace U camera family and uses a rolling shutter sensor for visible-spectrum acquisition. Its compact housing incorporates a C-mount interface for compatible machine vision lenses. GigE Vision connectivity and Basler pylon software support integration into computer-based inspection systems. Power over Ethernet or a separate DC supply provides installation flexibility, while hardware and software triggering allow coordinated image capture.
Key Features:
- Image Resolution: Captures 12.2 MP images with 4024 × 3036 active pixels.
- Sony CMOS Sensor: Uses the IMX226 sensor with 1.85 × 1.85 µm pixels.
- Monochrome Acquisition: Records grayscale images for visible-spectrum inspection and measurement.
- Rolling Shutter: Exposes sensor rows sequentially during image acquisition.
- GigE Interface: Transfers image data through an RJ45 Ethernet connection.
- Flexible Triggering: Supports hardware trigger, software trigger, and free-running acquisition.
- Power Options: Accepts IEEE 802.3af PoE or 12–24 VDC through the I/O connector.
- C-Mount Interface: Accommodates compatible lenses selected for the sensor format and required field of view.
The ACA4024-8GM delivers the reliability and precision required for detailed monochrome imaging and automated visual inspection.
