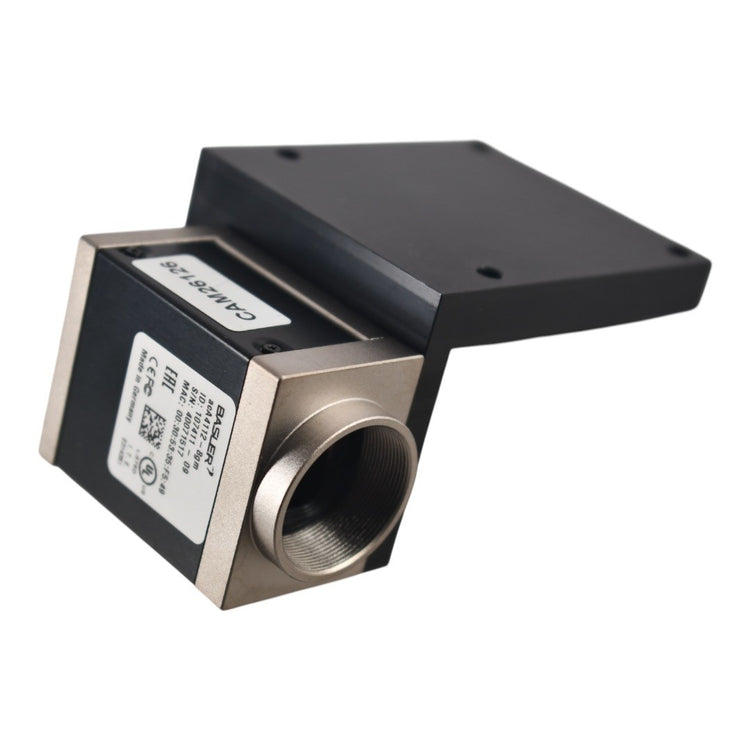

Basler ACA4112-8GM Monochrome GigE Camera with Sony IMX304 Sensor
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA4112-8GM
Description
The Basler ACA4112-8GM is a monochrome GigE camera designed for high-resolution industrial inspection and image acquisition. Its Sony IMX304 CMOS sensor captures 12.3 MP images with a global shutter, supporting detailed imaging of components, assemblies, and moving products.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | ACA4112-8GM |
| Subcategory | Camera Head |
| Series | ace L |
| Camera Type | Monochrome area scan camera |
| Image Sensor | Sony IMX304LLR, progressive scan CMOS |
| Sensor Format | 1.1 inch |
| Resolution | 12.3 MP; 4096 × 3000 default; 4112 × 3008 full sensor resolution |
| Pixel Size | 3.45 × 3.45 µm |
| Shutter Type | Global shutter |
| Frame Rate | 9.4 fps at default settings |
| Interface | Gigabit Ethernet, 1000 Mbit/s |
| Lens Mount | C-mount |
| Exposure Control | Hardware-controlled or programmable through the camera API |
| Synchronization | Hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input, 1 opto-coupled output, 1 GPIO |
| Power Requirements | PoE or 12–24 V DC; approximately 3.2 W typical via PoE / 2.7 W via DC |
| Housing Dimensions | 50 × 40 × 30 mm excluding lens mount and connectors; 61.8 × 40 × 30 mm including them (L × W × H) |
| Operating Housing Temperature | 0–50 °C |
| Weight | 0.33 lbs |
Information About ACA4112-8GM
The ACA4112-8GM is part of the Basler ace L family and uses a 1.1-inch progressive scan sensor. Its 3.45 µm pixels provide a default resolution of 4096 × 3000 pixels, with full sensor resolution of 4112 × 3008 pixels. Gigabit Ethernet connectivity transfers image data to compatible host systems, while PoE or a separate 12–24 V DC supply provides power. A C-mount lens interface, programmable exposure, and configurable synchronization support integration into automated inspection equipment.
Key Features:
- High-Resolution Imaging: Captures 12.3 MP monochrome images for detailed inspection and analysis.
- Sony CMOS Sensor: Uses the IMX304 sensor with a 1.1-inch optical format.
- Global Shutter: Exposes all pixels simultaneously to reduce motion-related geometric distortion.
- Frame Rate: Delivers 9.4 frames per second at default settings.
- GigE Interface: Transfers image data through a Gigabit Ethernet connection.
- Flexible Power: Supports either Power over Ethernet or a separate 12–24 V DC supply.
- Configurable Synchronization: Offers hardware triggering, software triggering, and free-running acquisition.
- Adjustable Image Region: Allows the captured area to be configured around the required inspection region.
The ACA4112-8GM delivers the reliability and precision required for high-resolution monochrome inspection and synchronized industrial imaging.
