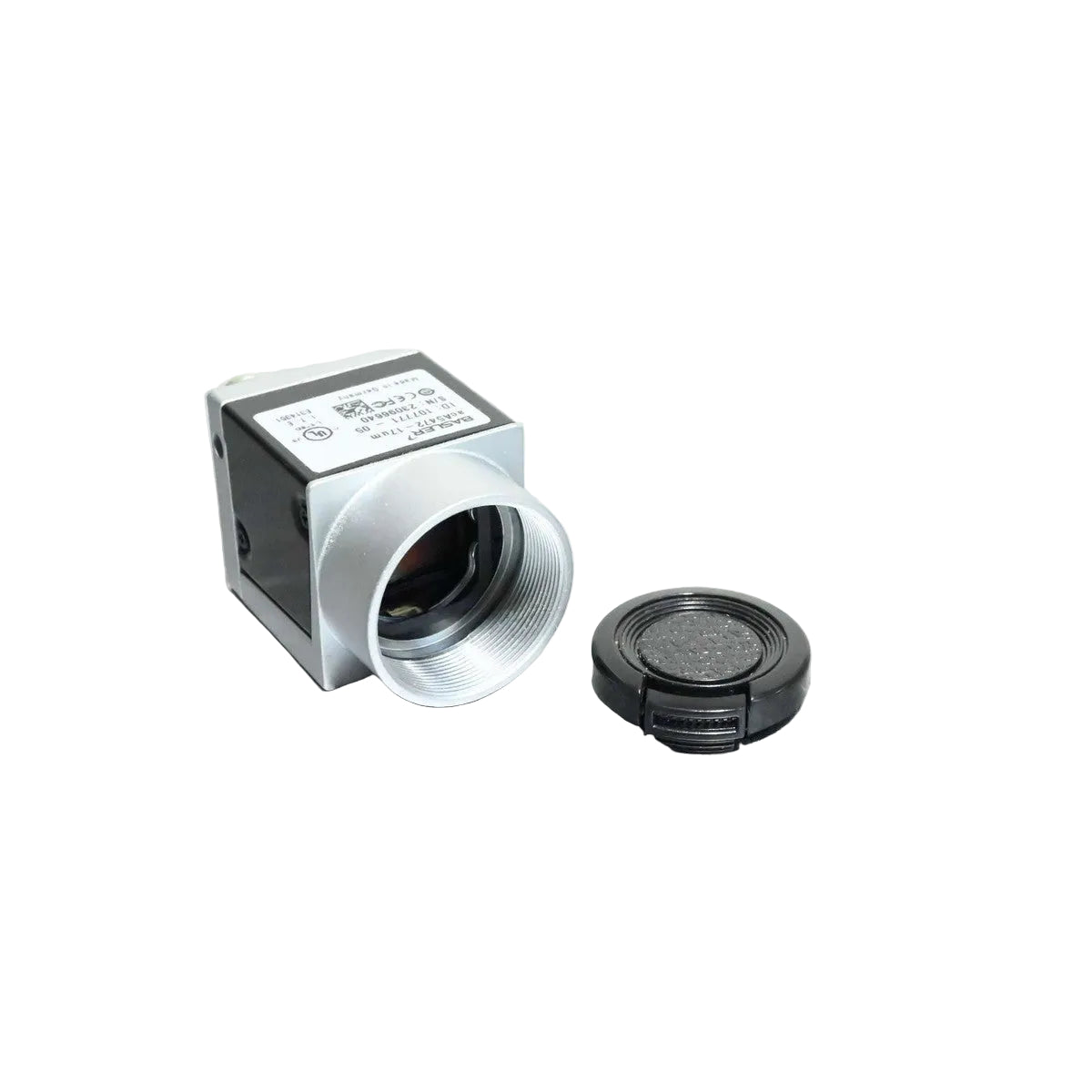

Basler ACA5472-17UM Monochrome USB 3.0 Camera with Sony IMX183 Sensor
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ACA5472-17UM
Description
The Basler ACA5472-17UM is a monochrome USB 3.0 camera designed for detailed industrial inspection and image analysis. Its Sony IMX183 CMOS sensor captures 20 MP images at 17 frames per second, supporting applications that require fine grayscale detail across a large inspection area.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | ACA5472-17UM |
| Subcategory | Camera Head |
| Series | ace U |
| Camera Type | Monochrome area scan camera |
| Image Sensor | Sony IMX183CLK-J, progressive scan CMOS |
| Sensor Format | 1 inch |
| Resolution | 20 MP; 5472 × 3648 default; 5496 × 3672 full sensor resolution |
| Pixel Size | 2.4 × 2.4 µm |
| Shutter Type | Rolling shutter |
| Frame Rate | 17 fps at default settings |
| Interface | USB 3.0, nominal maximum 5 Gbit/s; screw-lock Micro-B connector |
| Pixel Bit Depth | 10 or 12 bits |
| Lens Mount | C-mount |
| Exposure and Synchronization | Hardware-controlled or API-programmable exposure; hardware trigger, software trigger, free run |
| Digital I/O | 1 opto-coupled input, 1 opto-coupled output, 2 GPIO lines |
| Power Requirements | 5 V DC via USB 3.0; approximately 2.9 W typical consumption |
| Housing Dimensions | 29.3 × 29 × 29 mm excluding lens mount and connectors; 48.2 × 29 × 29 mm including them (L × W × H) |
| Environmental Ratings | IP30; operating housing temperature 0–50 °C |
| Weight | <80 g |
Information About ACA5472-17UM
The ACA5472-17UM is part of the Basler ace U family and uses a 1-inch progressive scan CMOS sensor with a rolling shutter. Its 2.4 µm pixels provide a default resolution of 5472 × 3648 pixels, with image region adjustment available for application-specific capture. A screw-lock USB 3.0 Micro-B connection transfers image data and supplies camera power. C-mount optics, programmable exposure, and configurable triggering allow integration into inspection systems with controlled lighting and motion.
Key Features:
- Monochrome Imaging: Uses a Sony IMX183 CMOS sensor to capture detailed grayscale images.
- High Resolution: Provides 20 MP images at a default resolution of 5472 × 3648 pixels.
- Rolling Shutter: Exposes sensor rows sequentially for image acquisition in controlled-motion applications.
- Frame Rate: Delivers 17 frames per second at default settings.
- USB 3.0 Interface: Transfers image data through a SuperSpeed connection with a nominal maximum rate of 5 Gbit/s.
- Adjustable Image Region: Allows the captured area to be configured around the required inspection region.
- Flexible Synchronization: Supports hardware triggering, software triggering, and free-running acquisition.
- Digital I/O: Includes one opto-coupled input, one opto-coupled output, and two GPIO lines.
The ACA5472-17UM delivers the reliability and precision required for high-resolution monochrome inspection and automated image analysis.
