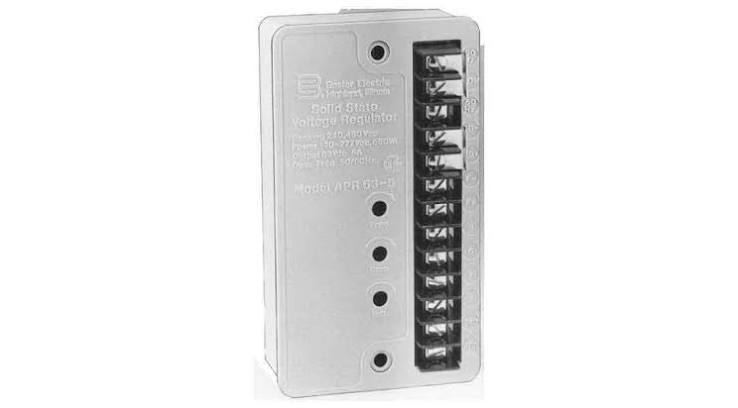

Basler Electric APR63-5 Automatic Generator Voltage Regulator
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: APR63-5
Description
The Basler Electric APR63-5 is a solid-state automatic voltage regulator for conventional 50/60 Hz brushless generators with a 63 V DC exciter field. It monitors generator output voltage and adjusts DC field power to maintain the required voltage level.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler Electric |
| Category | Controls & Indicators |
| Part Number | APR63-5 |
| Subcategory | Voltage Regulator |
| Regulator Type | Solid-state automatic voltage regulator |
| Generator Compatibility | Conventional brushless generators with a 63 V DC exciter field |
| Power Input | 190–277 V AC, ±10%, single-phase |
| Operating Frequency | 50/60 Hz |
| Sensing Input | Single-phase; selectable 240 V / 480 V taps |
| Sensing Voltage Range | 190–240 V AC, ±10%, on 240 V tap; 380–480 V AC, ±10%, on 480 V tap |
| Continuous Output | 63 V DC, 5 A DC, 315 W maximum |
| One-Minute Forcing Output | 105 V DC, 8.5 A DC, 893 W |
| Field Resistance | 12.6–100 Ω |
| Internal Voltage Adjustment | 170–264 V AC on 240 V tap; 340–528 V AC on 480 V tap |
| External Voltage Adjustment | Optional 1,000 Ω, 2 W potentiometer |
| Minimum Residual Voltage | 6 V AC for automatic voltage buildup |
| Operating Temperature | −40 °C to +60 °C |
| Housing | Epoxy-potted plastic case |
| Weight | 1.0 lb |
Information About APR63-5
The APR63-5 is an excitation controller housed in an epoxy-potted plastic case. Its single-phase sensing circuit uses selectable 240 V and 480 V taps to accommodate different generator voltage configurations. The regulator compares sensed voltage with an internal reference and adjusts excitation in response to deviations. Internal voltage adjustment and an optional external potentiometer support setup for compatible generator systems.
Key Features:
- Automatic Voltage Regulation: Adjusts exciter field power in response to changes in generator output voltage.
- Selectable Sensing Taps: Supports nominal 240 V and 480 V generator sensing configurations.
- Continuous Field Output: Supplies up to 5 A DC at 63 V DC for continuous excitation.
- Forcing Capability: Provides up to 8.5 A DC at 105 V DC for one minute.
- Residual Voltage Buildup: Builds generator voltage automatically from residual voltage as low as 6 V AC.
- Voltage Adjustment: Includes internal adjustment and supports an optional external potentiometer.
- Overexcitation Shutdown: Removes field power when excessive field voltage meets the shutdown criteria.
- Encapsulated Construction: Uses an epoxy-potted plastic enclosure for generator-mounted applications.
The APR63-5 delivers the reliability and precision required for brushless generator voltage regulation and excitation control.
