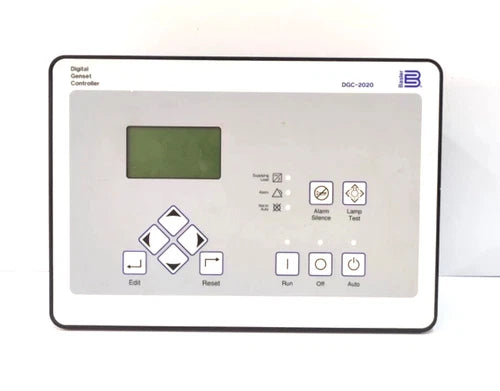

Basler Electric DGC-2020 Digital Genset Controller
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DGC-2020
Description
The Basler Electric DGC-2020 is a digital genset controller that combines engine control, generator metering, protection, and programmable logic. It supports standby and stand-alone generator applications, with optional equipment available for synchronizing and parallel operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler Electric |
| Category | Controls & Indicators |
| Part Number | DGC-2020 |
| Subcategory | Generator Controller |
| Controller Type | Microprocessor-based digital genset controller |
| Nominal Supply Voltage | 12 or 24 V DC |
| Operating Supply Range | 6–32 V DC |
| Power Consumption | 5 W sleep; 7.9 W normal operation; 14.2 W maximum under specified operating conditions |
| Programmable Contact Inputs | 16 |
| Contact Outputs | Up to 15, depending on configuration |
| Output Contact Ratings | 3 contacts rated 30 A DC; up to 12 programmable contacts rated 2 A DC |
| Engine Communications | SAE J1939 |
| Configuration Interface | USB |
| Configuration Software | BESTCOMSPlus |
| Programmable Logic | BESTlogicPlus with offline simulation |
| Generator Protection Functions | 27, 32R, 40Q, 59, 81O/U |
| Optional Enhanced Protection | 47, 51, 78, 81ROCOF; configuration-dependent |
| Expansion Modules | Optional CEM-2020, AEM-2020, and LSM-2020 |
| Construction | Potted design |
| Weight | 4.40 lbs |
Information About DGC-2020
The DGC-2020 is a microprocessor-based controller with a potted construction for demanding generator environments. BESTCOMSPlus software provides settings configuration, while BESTlogicPlus supports programmable control logic and offline simulation. SAE J1939 communications allow interaction with compatible engine electronic control units. Optional contact, analog, and load-sharing modules expand the controller’s capabilities according to system requirements.
Key Features:
- Integrated Genset Control: Combines engine operation, generator monitoring, and protection in one controller.
- Programmable Logic: Uses BESTlogicPlus to configure application-specific control sequences.
- Offline Simulation: Allows control logic to be checked without connecting physical controller hardware.
- Generator Metering: Provides electrical measurements, including three-phase mains monitoring.
- Engine ECU Communications: Supports SAE J1939 communication with compatible electronic engines.
- Transfer Switch Control: Includes mains failure detection and automatic transfer switch control functions.
- Programmable I/O: Provides sixteen contact inputs and configuration-dependent contact outputs.
- Expandable Operation: Supports optional CEM-2020, AEM-2020, and LSM-2020 modules for additional system functions.
The DGC-2020 delivers the reliability and precision required for automated genset control, monitoring, and protection.
