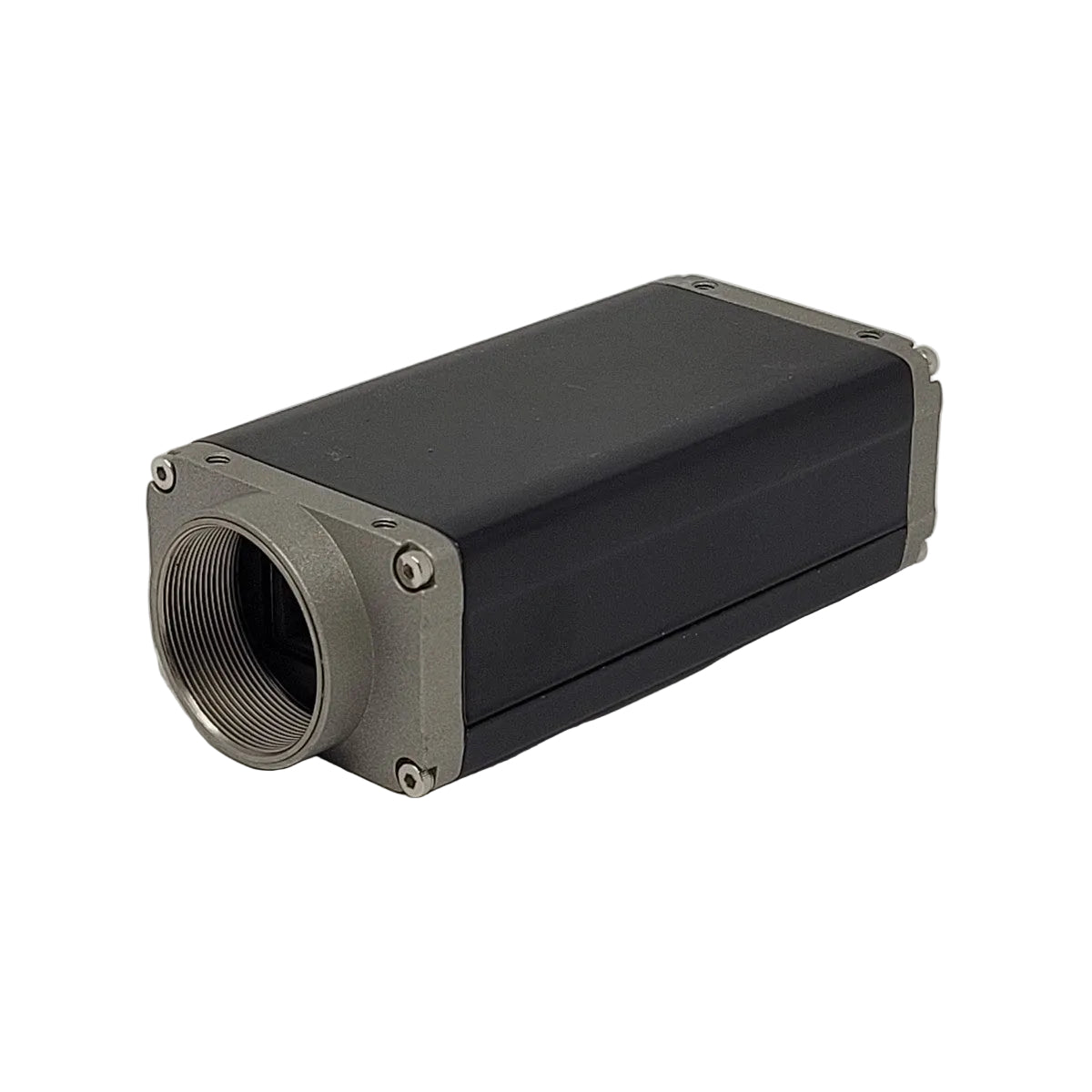

Basler PIA2400-17GM Monochrome CCD Camera with GigE Interface
- Regular price
- $989.00
- Sale price
- $989.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PIA2400-17GM
Description
The Basler PIA2400-17GM is a monochrome CCD camera designed for industrial image acquisition and automated visual inspection. Its Sony ICX625 sensor captures 2456 × 2058-pixel images at up to 17 frames per second, while a GigE interface transfers image data to compatible host systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Basler |
| Category | Camera & Vision |
| Part Number | PIA2400-17GM |
| Subcategory | CCD Camera |
| Series | pilot |
| Sensor | Sony ICX625 monochrome CCD |
| Resolution | 2456 × 2058 pixels, approximately 5 MP |
| Sensor Format | 2/3 inch; active area 8.47 × 7.10 mm |
| Pixel Size | 3.45 × 3.45 µm |
| Shutter Type | Global shutter |
| Frame Rate | Up to 17 fps |
| Interface | GigE |
| Pixel Bit Depth | 12 bits |
| Exposure Control | Programmable through the camera API |
| Synchronization | External trigger, software trigger, free run |
| Lens Mount | C-mount |
| Digital I/O | 2 digital inputs; 4 digital outputs |
| Power Requirements | 12–24 V DC; typical consumption 5.9 W |
| Housing Specifications | 86.7 × 44 × 29 mm (L × W × H), excluding lens adapter and connectors; operating housing temperature 0–50 °C |
| Weight | 0.49 lbs |
Information About PIA2400-17GM
The PIA2400-17GM is part of the Basler pilot camera series and uses a 2/3-inch CCD sensor with a global shutter. Its 3.45 µm pixels and 12-bit sensor depth support detailed grayscale imaging. A C-mount lens interface allows compatible optics to be selected for the required working distance and field of view. Programmable exposure, multiple synchronization modes, and digital I/O support integration into machine vision equipment.
Key Features:
- Monochrome CCD Sensor: Uses the Sony ICX625 to capture grayscale images for inspection and measurement.
- Image Resolution: Provides 2456 × 2058 pixels for detecting fine details in components and products.
- Global Shutter: Exposes all pixels simultaneously to reduce motion-related geometric distortion.
- Frame Rate: Captures up to 17 frames per second for repeated industrial image acquisition.
- GigE Interface: Transfers image data through an Ethernet connection to compatible host systems.
- Exposure Control: Allows exposure settings to be programmed through the camera API.
- Flexible Synchronization: Supports external triggering, software triggering, and free-running acquisition.
- Digital I/O: Includes two digital inputs and four digital outputs for interaction with external equipment.
The PIA2400-17GM delivers the reliability and precision required for monochrome machine vision and automated inspection processes.
