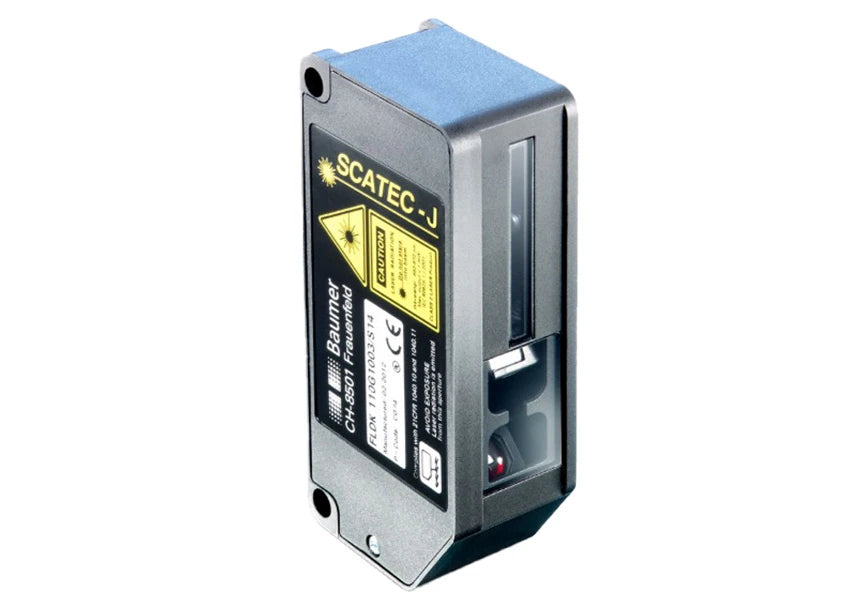

Baumer Electric 110G1003/S42 SCATEC Copy Counter Photoelectric Sensor
- Regular price
- $9,977.00
- Sale price
- $9,977.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 110G1003/S42
Description
The Baumer Electric 110G1003/S42 is a SCATEC copy counter and advanced edge/profile photoelectric sensor designed for counting and detecting individual sheets or edges. It provides a 0–60 mm measuring distance, pulsed red laser detection, and a push-pull output for integration into industrial automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Baumer Electric |
| Category | Sensors & Switches |
| Part Number | 110G1003/S42 |
| Subcategory | Photoelectric |
| Series | SCATEC |
| Measuring Distance | 0–60 mm |
| Light Source | Pulsed Red Laser Diode |
| Wavelength | 670 nm |
| Measuring Point | Visible Red Laser Line, 2 mm |
| Output Circuit | Push-Pull |
| Supply Voltage | 10–30 VDC |
| Current Consumption | 180 mA |
| Sensitivity Adjustment | High/Low Switchable |
| Housing Material | PA 6 |
| Front Optics | Glass |
| Protection Rating | IP54 |
| Operating Temperature | 0 to +50 °C |
| Width | 30 mm |
| Weight | 0.15 lb |
Information About 110G1003/S42
The 110G1003/S42 is a rectangular universal copy counter designed to detect sheet edges with a sensitivity down to 0.2 mm. Its visible red laser line provides a 2 mm measuring point at a 670 nm wavelength, while the optimum operating distance is 40 mm. The sensor supports selectable output pulse lengths of 5, 10, 15, or 20 ms and high/low switchable sensitivity. A PA 6 housing, glass front optics, and IP54 protection provide suitable durability for industrial installation.
Key Features:
- Copy Counter: Designed for counting individual sheets, copies, and material edges in automated production systems.
- 0–60 mm Measuring Range: Provides a measuring distance from 0 to 60 mm with an optimum operating distance of 40 mm.
- Laser Detection: Uses a pulsed red laser diode with a visible 2 mm laser line at 670 nm.
- High Counting Rate: Supports counting rates of less than 600,000 copies per hour for high-speed applications.
- Edge Detection: Detects single sheets and edge thicknesses down to 0.2 mm for precise material monitoring.
- Push-Pull Output: Provides a push-pull output circuit for flexible integration with industrial control equipment.
- Adjustable Pulse Length: Allows selection of 5, 10, 15, or 20 ms output pulse lengths.
- High/Low Sensitivity: Provides switchable sensitivity settings for adapting detection to different materials and applications.
The 110G1003/S42 delivers precise edge detection and high-speed copy counting required for automated material handling and production systems.
