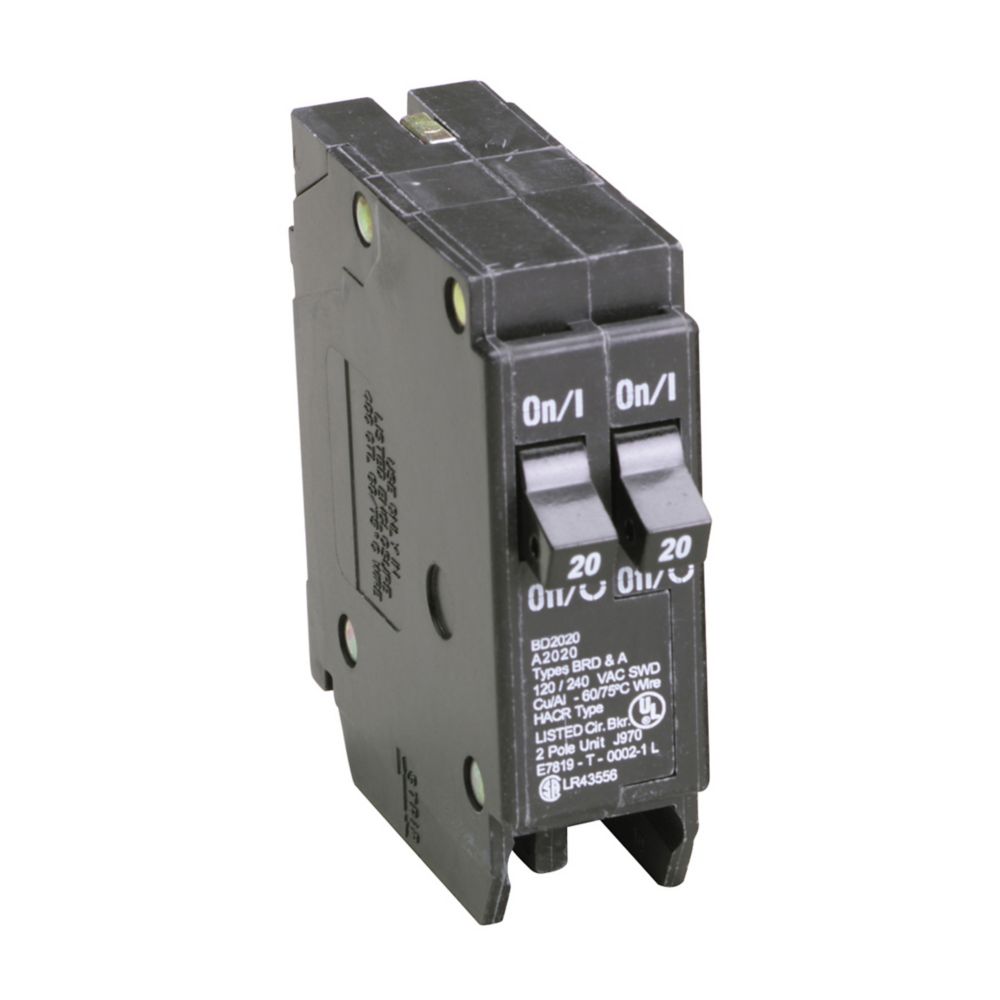

BD2020 | Eaton 20A Duplex Single-Pole 120V Plug-On BR Series Circuit Breaker
- Regular price
- $39.00
- Sale price
- $39.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BD2020
Description
The Eaton BD2020 is a duplex thermal magnetic circuit breaker designed for 120V residential branch circuits requiring two independent 20A outputs in a compact form. Its plug-on design, rejection tab feature, and 10 kA interrupt rating ensure reliable, code-compliant protection within BR loadcenters.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | BD2020 |
| Subcategory | Molded Case Circuit Breaker |
| Type | BD Duplex |
| Voltage Rating | 120 V |
| Amperage Rating | (2) 20A |
| Interrupt Rating | 10 kAIC |
| Number of Poles | Single-Pole (Duplex) |
| Special Features | Rejection Tab |
| Main Circuit Breaker | BD |
| Used With | Type BR Loadcenters |
| Mounting Method | Plug-On |
| Wire Size | #14–4 AWG Cu/Al @ 60/75°C |
| Protection | Thermal Magnetic |
| Dimensions (H × W × L) | 3" × 1.6" × 3.2" |
| Application | Residential and Light Commercial Circuits |
Information About BD2020
The BD2020 is part of Eaton’s BR Series, engineered to provide compact dual-circuit protection in standard residential loadcenters. Its duplex layout offers two independent 20A branch circuits within the footprint of a single breaker, maximizing panel space without sacrificing protection. The breaker incorporates thermal magnetic technology to deliver dependable overload and short-circuit response, while the inclusion of the rejection tab ensures proper breaker selection and prevents unsafe installations. With a 10 kA interrupt rating and plug-on mounting, the BD2020 offers efficient installation, reliable operation, and strong compliance with UL 489 and CSA standards.
Key Features
- Duplex 20A design: Provides two separate 20A circuits in a single-pole footprint.
- Plug-on installation: Enables quick, secure mounting in BR loadcenters.
- Thermal magnetic protection: Combines overload and short-circuit defense.
- 10 kA interrupt capacity: Supports safe clearing of residential fault levels.
- Rejection tab feature: Prevents the use of incompatible breakers for added safety.
- Compact molded case: Saves panel space while maintaining durability.
- Wide wire compatibility: Accepts copper or aluminum conductors from #14–4 AWG.
- UL 489 and CSA certified: Meets national safety and performance standards.
The BD2020 delivers the reliability and precision required for efficient dual-circuit protection in modern residential electrical systems.
