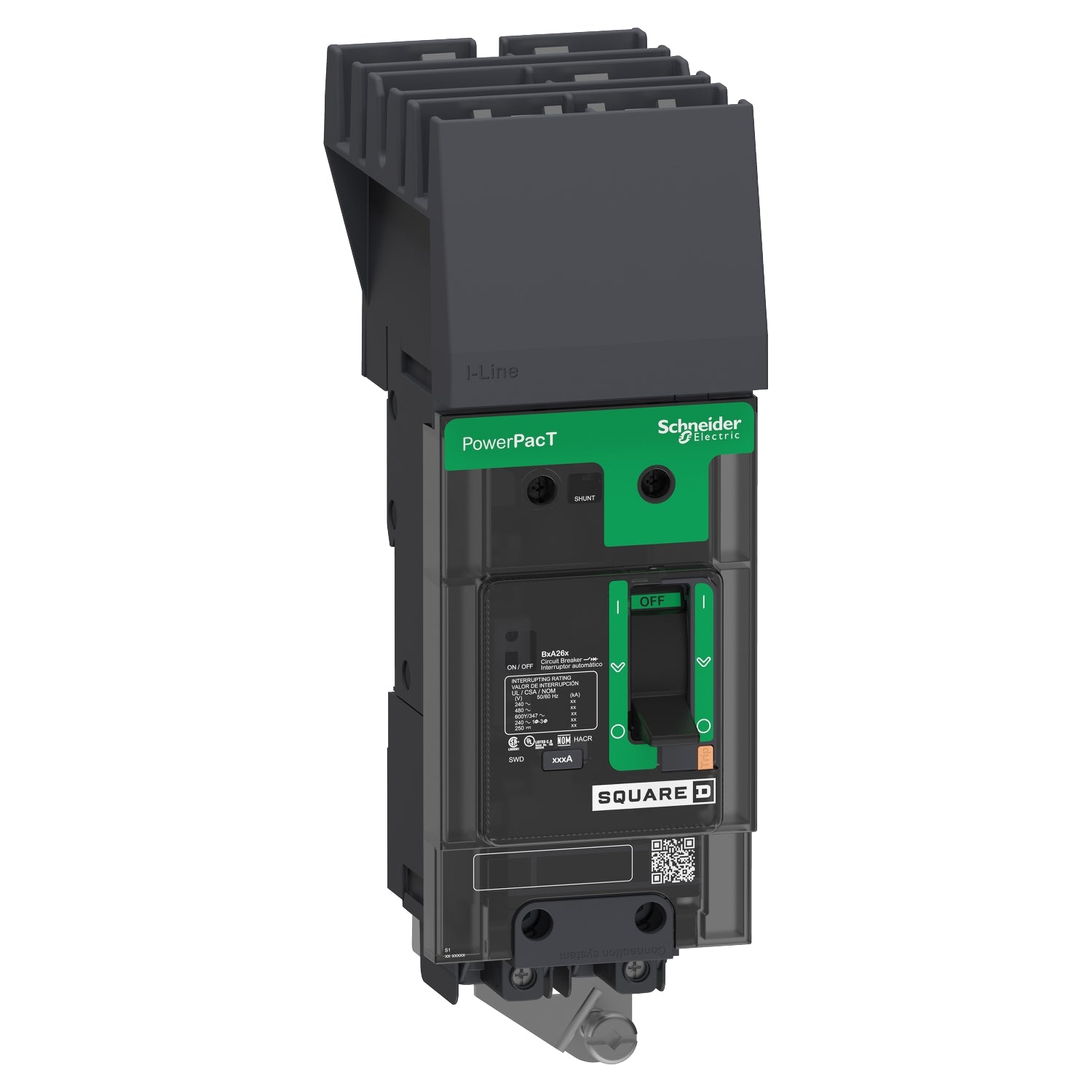

BDA24100Y4 | Square D 100A 2-Pole PowerPact B-Frame Thermal Magnetic Circuit Breaker
- Regular price
- $1,095.00
- Sale price
- $1,095.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BDA24100Y4
Description
The Square D BDA24100Y4 is a PowerPact B-Frame 2-pole thermal magnetic molded case circuit breaker designed for reliable overcurrent protection in electrical distribution systems. With a rated current of 100A and voltage capacity of 480Y/277VAC, it ensures safe interruption of fault currents up to 18kA. This model provides a compact, durable solution ideal for commercial and industrial power distribution panels requiring consistent performance and easy installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | BDA24100Y4 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPact B |
| Frame Type | B-Frame |
| Poles | 2 |
| Rated Current | 100A |
| Voltage Rating | 480Y/277VAC |
| Interrupting Rating | 18kAIC @ 480V |
| Trip Unit Type | Thermal-Magnetic |
| Connection Type | I-Line (line side), Mechanical Lug (load side) |
| Frequency | 50/60 Hz |
| Insulation Voltage (Ui) | 800V IEC 60947-2 |
| Impulse Withstand Voltage (Uimp) | 8 kV IEC 60947-2 |
| Mechanical Durability | 20,000 cycles |
| Electrical Durability | 10,000 cycles @ 440V |
| Mounting Type | I-Line Plug-In |
| Wire Range | AWG 14–2/0 Cu/Al |
| Protection Rating | IP40 front cover |
| Standards Compliance | UL 489, CSA C22.2, IEC 60947-2, NOM, CCC, EAC |
| Operating Temperature | -25°C to +70°C (-13°F to 158°F) |
| Weight | 0.952 kg (2.099 lb) |
Information About BDA24100Y4
The BDA24100Y4 is part of Square D’s PowerPact B-Frame series, engineered for high-performance protection in compact enclosures. It features a thermal-magnetic trip unit that combines both overload and short-circuit protection, ensuring efficient operation and reduced downtime. The device is designed with I-Line plug-in connections on the line side and mechanical lugs on the load side, providing secure and quick installation. Built to comply with global standards such as UL, CSA, and IEC, the BDA24100Y4 is suitable for distribution, branch, and feeder applications in demanding environments.
Key Features:
- Current Rating: Provides 100A rated current capacity for medium-duty distribution systems.
- Voltage Rating: Supports up to 480Y/277VAC for reliable use in industrial and commercial installations.
- Interrupting Capacity: Delivers 18kAIC at 480V for dependable short-circuit protection.
- Trip Unit Type: Utilizes a thermal-magnetic mechanism for both overload and instantaneous trip response.
- Connection Type: I-Line plug-in connection for line side and mechanical lug for load side enhance installation efficiency.
- Compliance: Certified to UL, CSA, NOM, and IEC standards for global compatibility and safety assurance.
- Durability: Rated for 20,000 mechanical and 10,000 electrical cycles ensuring long operational life.
- Environmental Protection: Front cover rated IP40 and IK07 for robust resistance against dust and impact.
The BDA24100Y4 delivers the reliability and precision required for modern electrical distribution and protection applications.
