Part #: BDA34100Y Manufactured by: Schneider Electric

BDA34100Y | Schneider Electric Circuit Breaker

Regular price
$784.00
Sale price
$784.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The BDA34100Y is a circuit breaker from the PowerPacT B series, designed to provide compact thermal-mechanical circuit pro...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: BDA34100Y
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
BDA34100Y | Schneider Electric Circuit Breaker
    BDA34100Y | Schneider Electric Circuit Breaker
BDA34100Y | Schneider Electric Circuit Breaker
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: BDA34100Y

Description / Specifications

Description

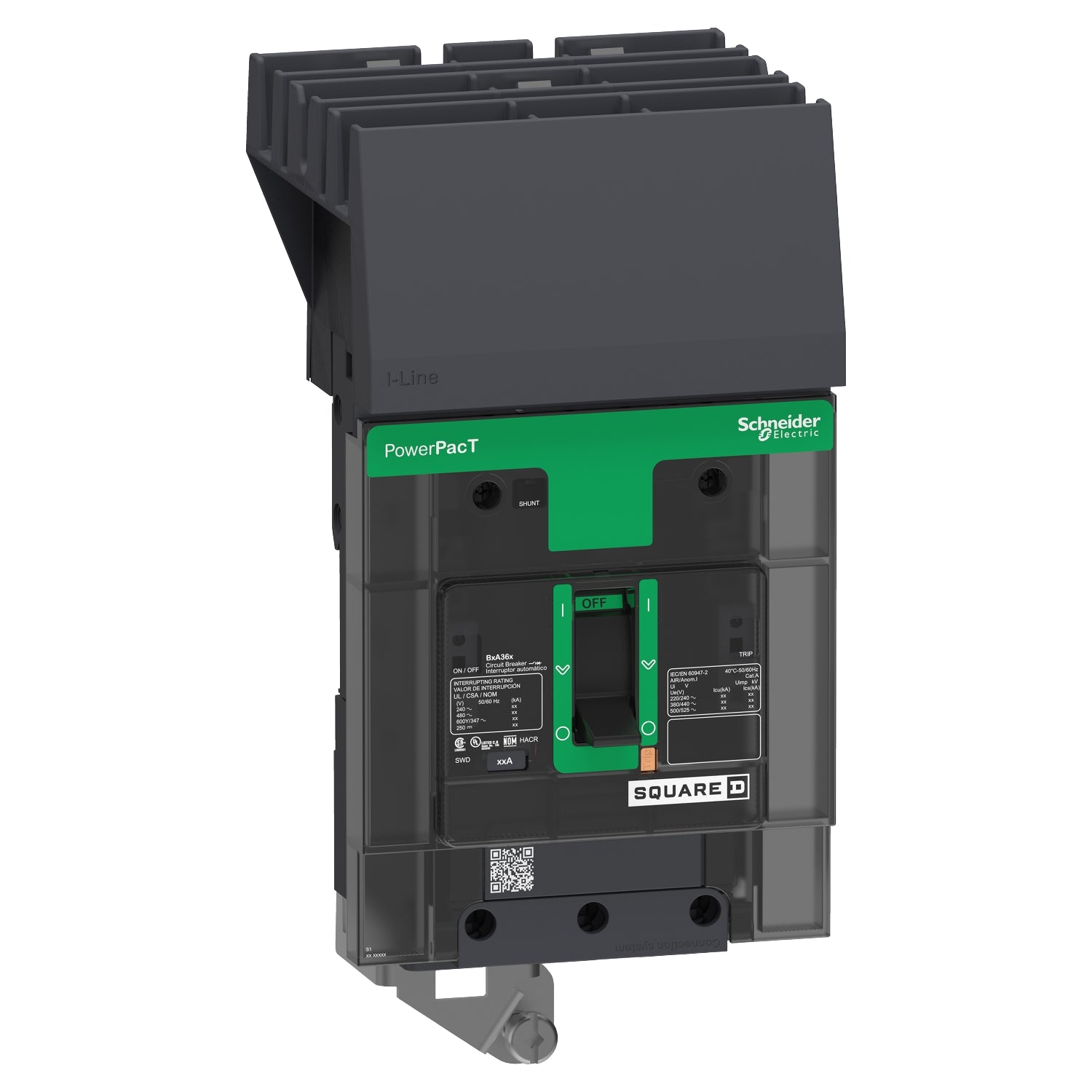

The BDA34100Y is a PowerPacT B-Frame circuit breaker designed to deliver thermal-mechanical circuit protection in a compact size, offering a comprehensive range of accessories, auxiliaries, and connection options. This circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC.
