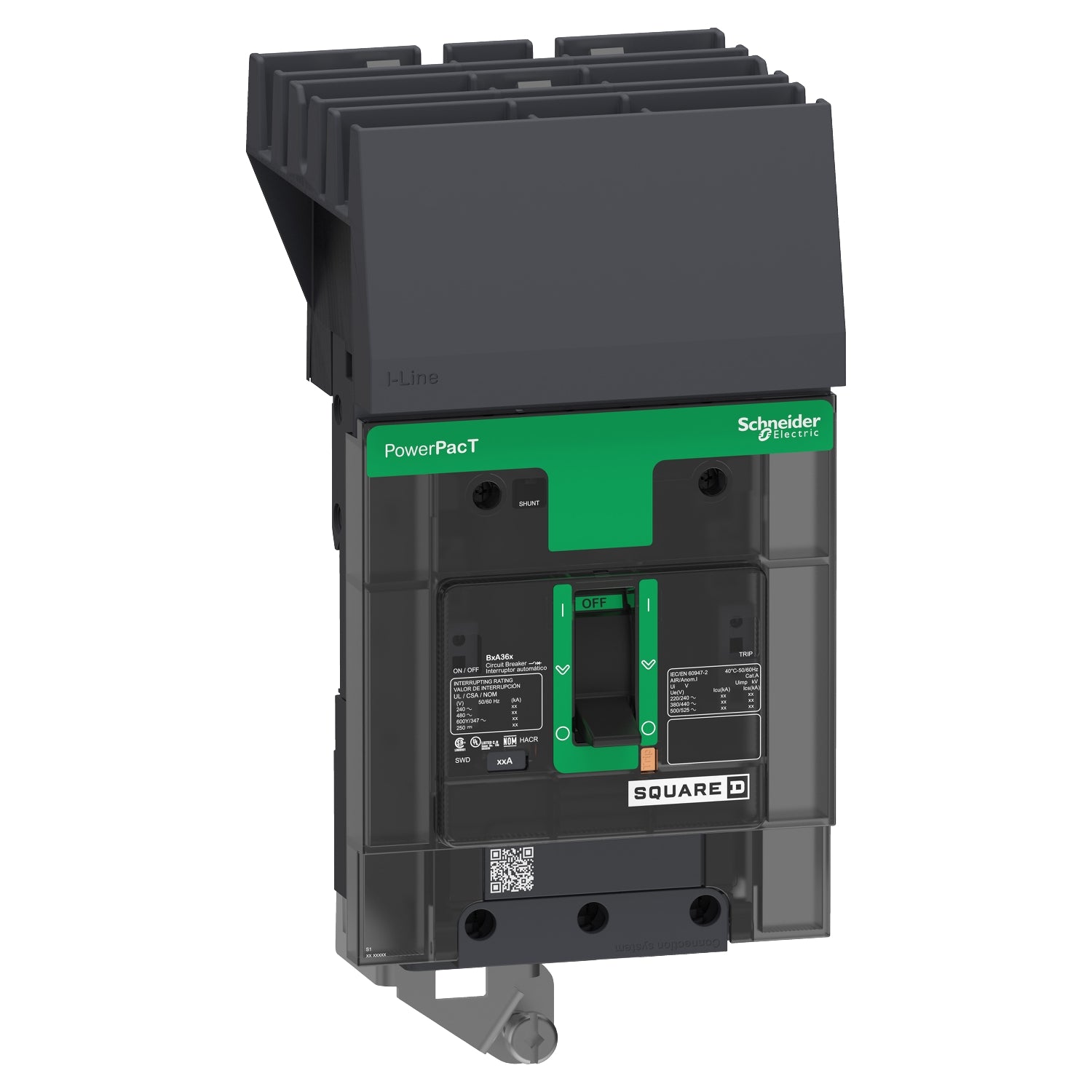

Part #: BDA36015 Manufactured by: Schneider Electric
Regular price
$699.00
Sale price
$699.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The BDA36015 is a PowerPacT B-Frame circuit breaker designed for robust thermal-mechanical circuit protection in a compact...  Read more
