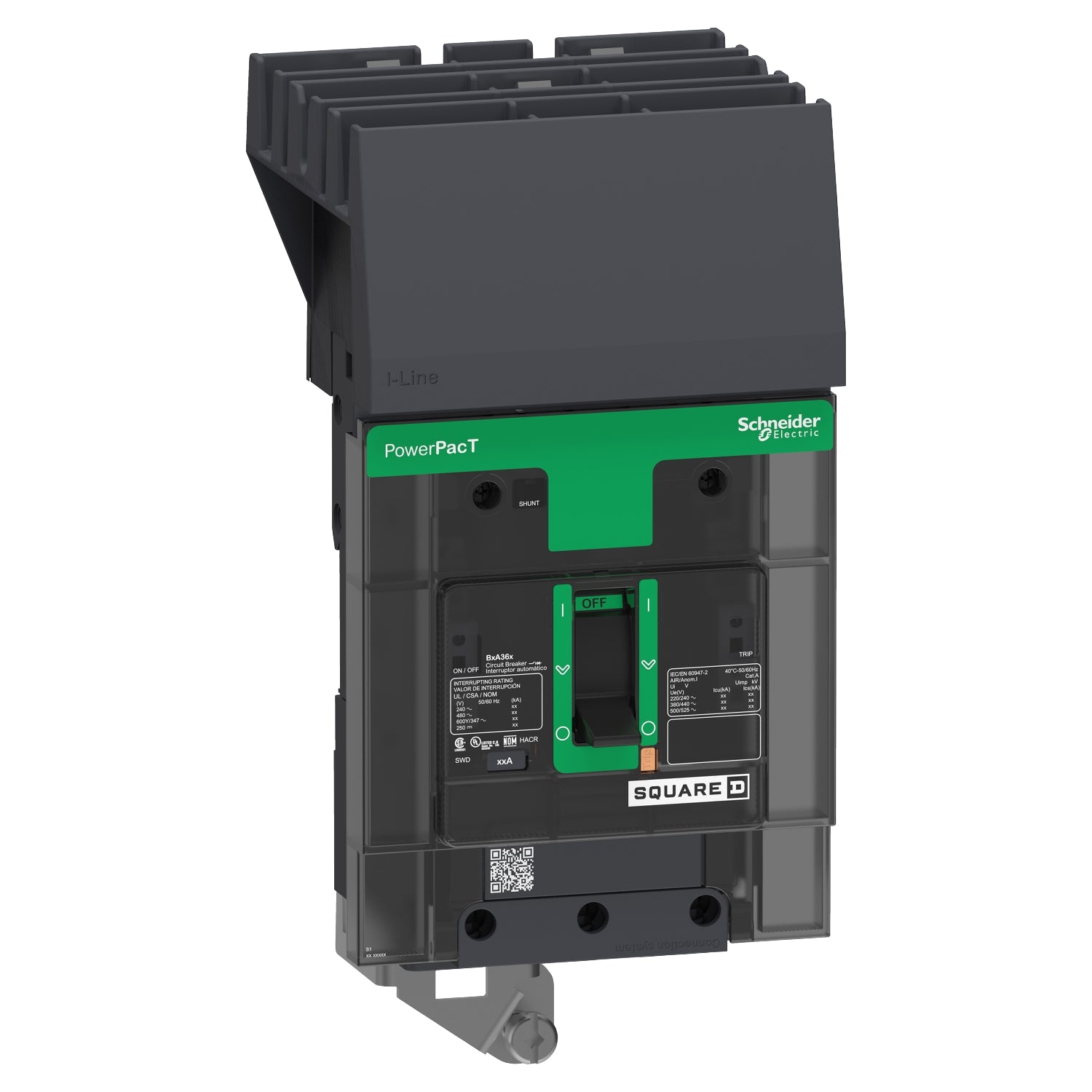

BDA36050 | Schneider Electric Circuit Breaker, PowerPacT B
- Regular price
- $681.00
- Sale price
- $681.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BDA36050
Description
The BDA36050 circuit breaker, part of the PowerPacT B-Frame series, delivers thermal-magnetic circuit protection in a compact form factor, accompanied by a broad array of accessories, auxiliaries, and connection options. With a breaking capacity of 14kA at 600Y/347VAC, it ensures reliable overcurrent protection for various applications.
Equipped with dual-break rotating contacts, this circuit breaker minimizes peak current during short-circuit faults, enhancing operational safety and reliability. Featuring an integral push-to-trip button in the cover, it allows for manual interruption when necessary, providing added control.
Technical Specifications
|
Part # |
BDA36050 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact B |
|
Device short name |
BD 050 |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
50 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
D |
|
[Ue] rated operational voltage |
525 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
800 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
Mechanical durability |
20000 cycles IEC 947-1 Annex K ed 5.2 |
|
Electrical durability |
10000 cycles IEC 947-1 Annex K ed 5.2 440 V In |
|
Connection pitch |
1.06 in (27 mm) |
|
AWG gauge |
AWG 14...AWG 2/0 aluminium/copper |
|
Local signalling |
Presence of auxiliary contacts flag green) |
|
Mounting mode |
I-Line |
|
Electrical connection |
I-Line connection, line |
|
|
Lugs, load |
|
Mounting Height |
4.49 in (114 mm) |
|
Power wire stripping length |
0.79 in (20 mm) |
|
Color |
Gray RAL 7016 |
|
9 mm pitches |
9 |
|
Height |
5.39 in (137 mm) |
|
Width |
3.19 in (81 mm) |
|
Depth |
3.50 in (89 mm) |
|
Net Weight |
2.90 lb(US) (1.315 kg) |
|
Quantity per Set |
Set of 1 |
|
Phase connection |
ABC |
|
Circuit breaker application |
HACR rated |
Information About BDA36050
The BDA36050 Circuit Breaker, belonging to the PowerPacT B series, offers thermal-mechanical circuit protection in a compact form factor and boasts a comprehensive array of accessories, auxiliaries, and connection options. Designed to ensure operational safety and reliability, this circuit breaker features thermal magnetic circuit protection with a robust breaking capacity of 14kA at 600Y/347VAC.
Equipped with dual-break rotating contacts, the PowerPacT B-Frame circuit breakers mitigate the effects of peak current during short circuit faults, enhancing system resilience and durability. Additionally, each circuit breaker within the PowerPacT B series is outfitted with an integral push-to-trip button integrated into the cover, facilitating manual tripping of the circuit breaker when necessary.
Available in both 1 to 4-pole unit mount construction and 1 to 3-pole I-Line construction configurations, the PowerPacT B-Frame circuit breakers offer versatile installation options to accommodate diverse system requirements. Notably, I-Line circuit breakers are equipped with a shrouded I-Line plug on the jaw, ensuring secure connections.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
