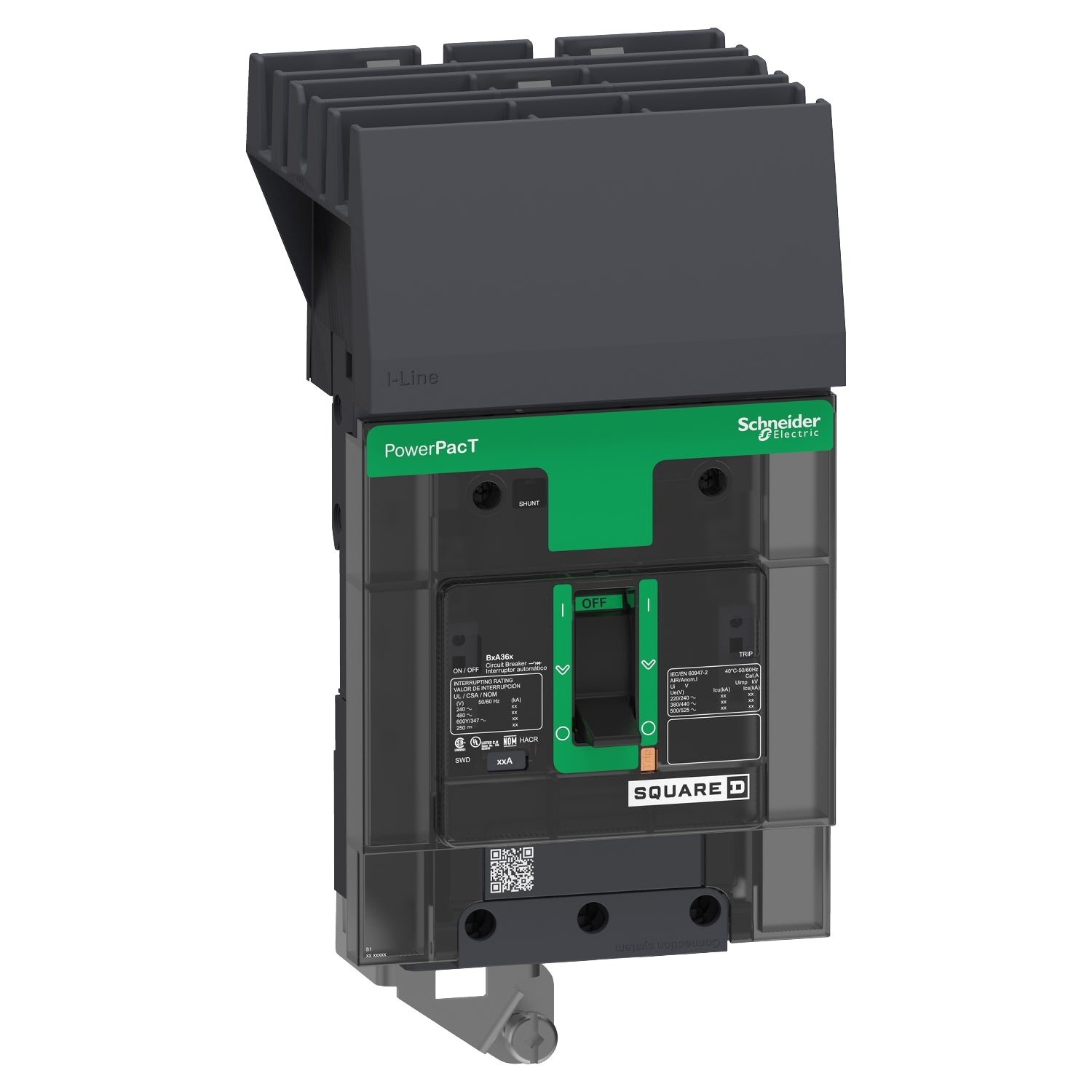

BDA36080 | Schneider Electric Circuit Breaker
- Regular price
- $784.00
- Sale price
- $784.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BDA36080
Description
BDA36080, Schneider Electric,Square D, Powerpact, type BDA, 3PH, 3P, 600Y/347Vac, 80A, 18kA@480V rated, I-Line Style Plug-In with ABC phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | BDA36080 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | BDA |
| Voltage | 600 |
| Amperage | 80 |
| Phase | 3 |
| Frame Type | B Frame |
| Poles | 3 |
| AIC Rating | 18kA@480V |
| Functions | LI - Long-Time and Instantaneous |
| Connection | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
Information About BDA36080
The BDA36080 from Schneider Electric is a robust B-frame Powerpact circuit breaker designed for industrial applications requiring reliable electrical protection. With a voltage rating of 600 volts AC and an amperage rating of 80 amps, it is specifically tailored for three-phase electrical systems.
Featuring three poles and a B-frame type, the BDA36080 is well-suited for managing heavy electrical loads and ensuring comprehensive protection against overloads and short circuits. It operates with an impressive interrupt rating of 18 kA at 480 volts AC, indicating its capability to handle high fault currents efficiently.
This circuit breaker utilizes an I-Line Style Plug-In connection, facilitating quick and secure installation in compatible panel boards and switchgear. It incorporates thermal magnetic protection technology, combining thermal elements for overload protection and magnetic elements for fast response to short circuits.
Designed for both long-time and instantaneous functions, the BDA36080 offers flexibility in protecting electrical circuits against sustained overcurrents and sudden faults. Its robust construction and reliable performance make it suitable for demanding industrial environments where continuity of operations and safety are paramount.
The BDA36080 exemplifies Schneider Electric's commitment to providing durable, high-performance circuit protection solutions. It meets industry standards for reliability and safety, making it an ideal choice for applications requiring dependable electrical protection in industrial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
