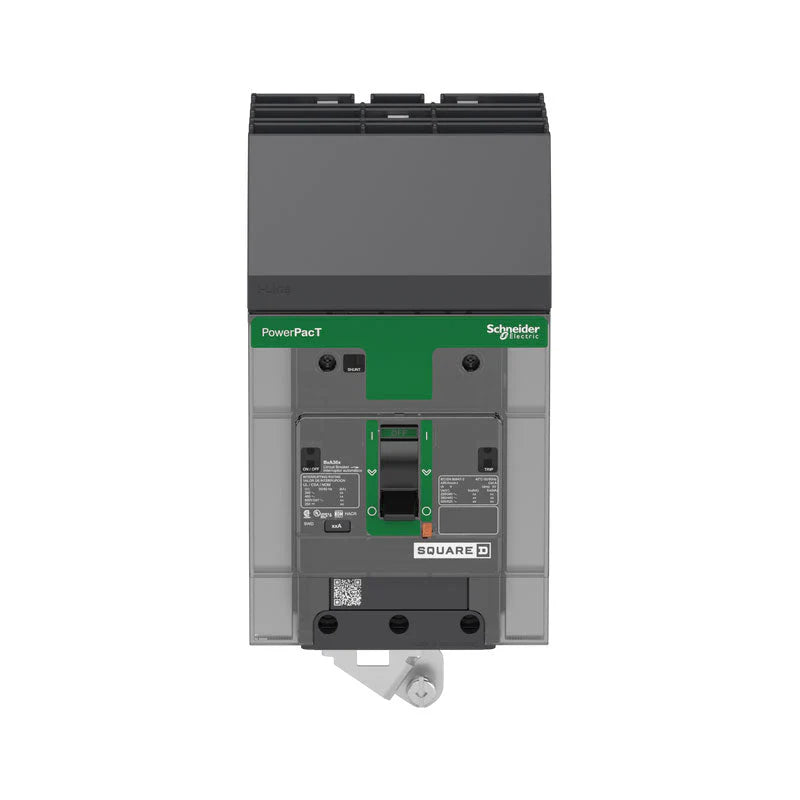

BDA36100 | Schneider Electric Circuit Breaker
- Regular price
- $729.00
- Sale price
- $729.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BDA36100
Description
The Square D BDA36100 is a 3 pole thermal magnetic molded case circuit breaker with a current rating of 100 amps and a voltage rating of 525 V AC 50/60 Hz. It has an interrupt rating of 18kAIC@480V. The BDA36100 has a I-Line mounting type for use with Electrical Distribution Equipment, Industrial Control Panels, and includes long-time and instantaneous trip functions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | BDA36100 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | BDA |
| Voltage | 600 |
| Amperage | 100 |
| Functions | LI - Long-Time and Instantaneous |
| AIC Rating | 18kA@480V |
| Poles | 3 |
| Phase | 3 |
| Connection | I-Line Style Plug-In |
| Protection | Thermal Magnetic |
| Frame Type | B Frame |
Information About BDA36100
The BDA36100 Schneider Electric Circuit Breaker is a high-performance and reliable electrical protection device designed for demanding industrial and commercial applications. As part of the Powerpact family, this breaker provides robust performance and ensures the safety of electrical systems.
Operating at a voltage of 600V and an amperage of 100A, the BDA36100 is suitable for managing substantial electrical loads in three-phase systems. Its three-pole configuration ensures balanced and efficient power distribution across all phases, providing effective circuit protection.
The BDA36100 features a Thermal Magnetic protection mechanism, combining thermal protection for long-time overload conditions and magnetic protection for instantaneous short-circuit response. This dual protection ensures comprehensive safeguarding of electrical circuits. With an interrupting capacity (AIC) of 18kA at 480V, the breaker can handle significant fault currents, providing robust protection against electrical faults.
Designed for ease of installation and maintenance, the BDA36100 features an I-Line Style Plug-In connection, facilitating quick and secure integration into I-Line panelboards and busway systems. The B Frame type enhances its durability and reliability, making it suitable for harsh and demanding environments.
The primary functions of the BDA36100 include Long-Time and Instantaneous protection, ensuring continuous operation under normal conditions and rapid disconnection during fault conditions to prevent damage and enhance safety.
Overall, the BDA36100 Schneider Electric Circuit Breaker is a dependable and efficient solution for protecting electrical circuits from overloads and short circuits. Its high interrupting capacity, robust protection features, and easy installation make it an ideal choice for various industrial and commercial applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
