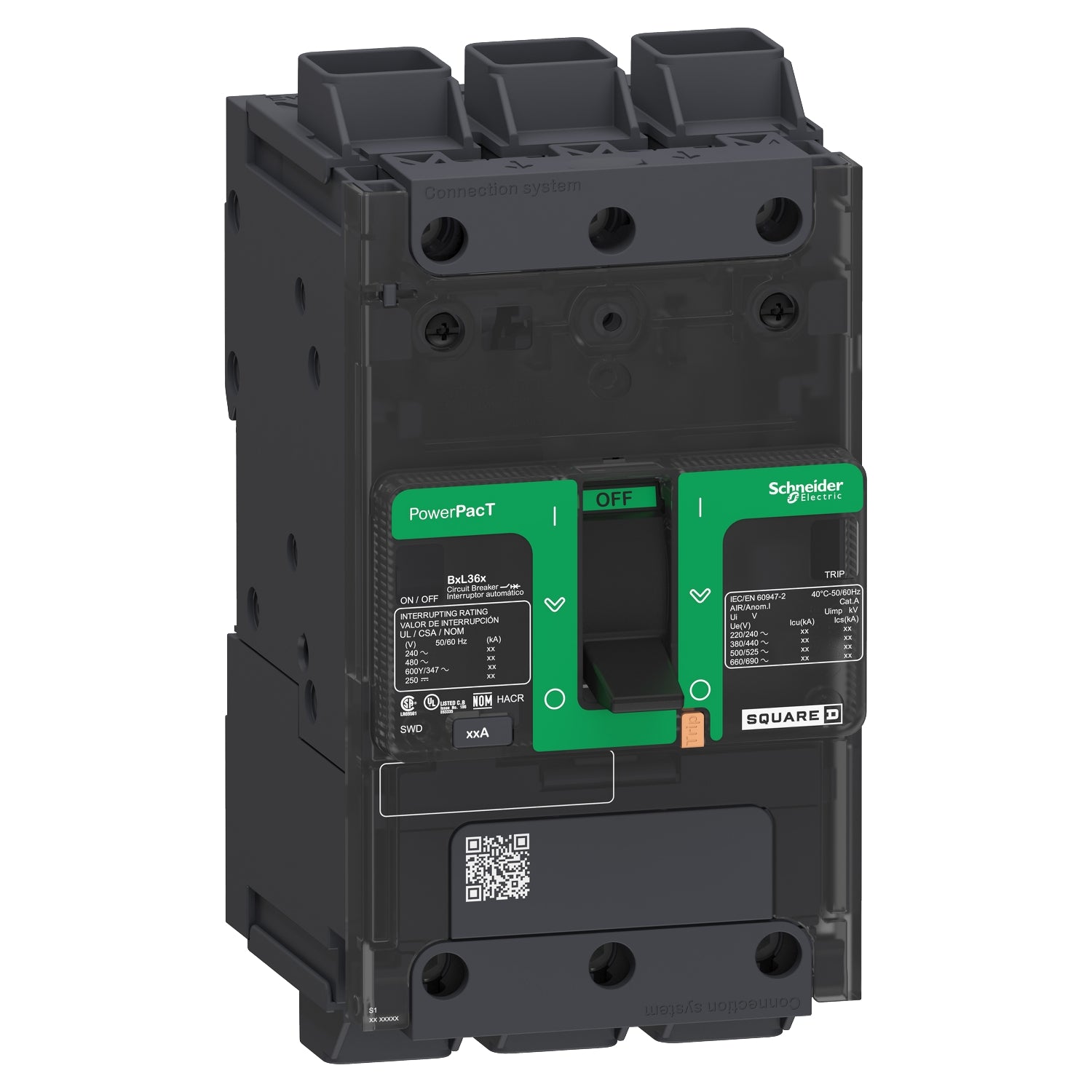

BDL36060 | Schneider Electric Circuit Breaker

Description

BDL36060, Square D,Schneider Electric, Powerpact, type BDL, 3PH, 3P, 600Y/347Vac, 60A, 18kA@480V, Feed-Thru with EverLink connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers.

Technical Specifications

Information About BDL36060

The Schneider Electric BDL36060 is a high-performance circuit breaker from the Powerpact family, designed to deliver reliable protection for electrical systems. This breaker operates at a voltage of 600 VAC with an amperage rating of 60A, making it suitable for a wide range of industrial and commercial applications.

It features Long-Time and Instantaneous (LI) protection functions, which provide comprehensive safeguarding against both prolonged overloads and immediate short-circuit conditions. The breaker is configured for 3-phase systems and is built with a B Frame type, ensuring robustness and durability in demanding environments.

With three poles, the BDL36060 offers balanced protection across all phases. Its thermal magnetic trip unit combines both thermal protection for overload conditions and magnetic protection for short-circuit events, ensuring quick and effective response to faults.

The breaker utilizes a feed-thru connection for straightforward integration into existing electrical setups. It boasts an impressive interrupting capacity (AIC rating) of 18 kA at 480V, allowing it to safely interrupt high fault currents without damaging the system.

Overall, the Schneider Electric BDL36060 Circuit Breaker provides dependable, high-capacity protection with advanced features designed to enhance the safety and reliability of electrical installations.
