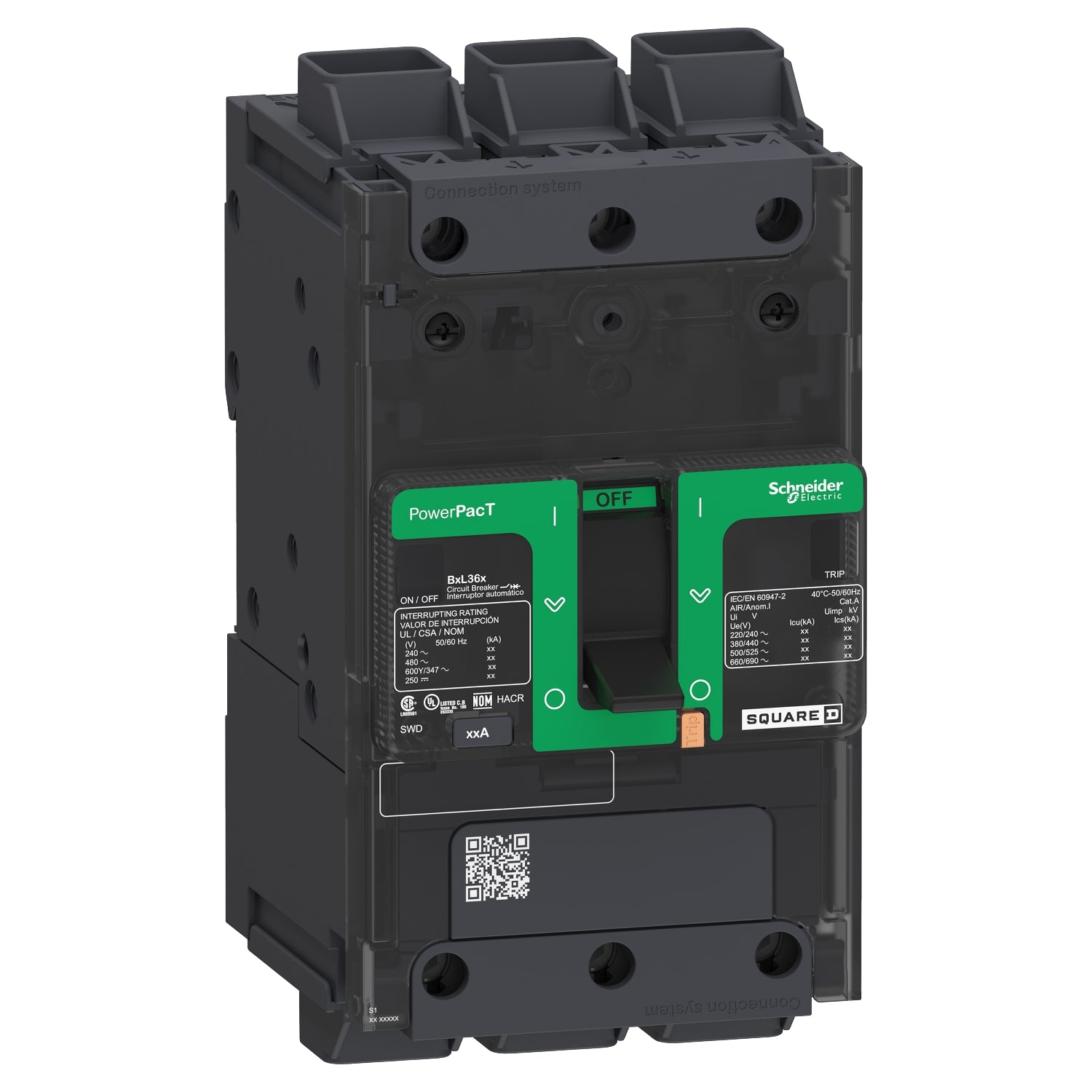

BDL36125 | Schneider Electric PowerPact B-Frame 3-Pole 125A 600Y/347V Feed-Thru Thermal-Magnetic Circuit Breaker
- Regular price
- $1,369.00
- Sale price
- $1,369.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BDL36125
Description
The Schneider Electric BDL36125 is a 125-amp, three-pole molded case circuit breaker designed for dependable protection in 600Y/347V three-phase electrical systems. Part of the PowerPact B-Frame family, it features a thermal-magnetic trip unit with long-time and instantaneous functions for overload and short-circuit protection. Its feed-thru design with EverLink connectors ensures secure conductor termination and stable long-term performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | BDL36125 |
| Subcategory | Molded Case Circuit Breaker |
| Family | PowerPact |
| Type | BDL |
| Voltage Rating | 600Y/347 V |
| Amperage Rating | 125 A |
| Phase | 3-Phase |
| Poles | 3 |
| AIC Rating | 18 kA @ 480 V |
| Protection Type | Thermal Magnetic |
| Trip Functions | LI – Long-Time and Instantaneous |
| Frame Type | B Frame |
| Connection Type | Feed-Thru with EverLink connectors |
| Terminal Style | Line and load side lugs |
| Trip Unit | Non-interchangeable |
| Application | Commercial and industrial three-phase circuit protection |
Information About BDL36125
The BDL36125 is part of Schneider Electric’s PowerPact breaker line, engineered for commercial and industrial distribution applications requiring durable circuit protection. Built on the compact B-Frame platform, it supports 125A loads at up to 600Y/347V, making it suitable for lighting and power branch circuits. EverLink terminals enhance connection integrity by maintaining consistent clamping force, even under thermal cycling, while the feed-thru installation style allows simple line-and-load wiring. With thermal-magnetic trip technology and LI protection functions, the breaker provides accurate overload response and fast short-circuit interruption, supported by an 18 kA interrupting capacity at 480V. The non-interchangeable trip unit ensures stable performance across its service life.
Key Features:
- B-Frame PowerPact design: Compact, durable molded case construction.
- 125A current rating: Suitable for medium-capacity three-phase branch and feeder circuits.
- 600Y/347V AC operation: Supports commercial and industrial distribution systems.
- 18 kA interrupting capacity: Provides reliable fault-current protection at 480V.
- Thermal-magnetic trip unit: Delivers overload and instantaneous short-circuit protection.
- LI trip functions: Long-time and instantaneous trip characteristics for precise operation.
- EverLink connectors: Maintain consistent contact pressure under thermal cycling.
- Feed-thru connection: Simplifies installation with direct line and load termination.
- Three-pole configuration: Ensures balanced isolation across all phases.
- Non-interchangeable trip: Factory-set performance for consistent protection.
The BDL36125 delivers the reliability and precision required for industrial and commercial three-phase circuit protection.
