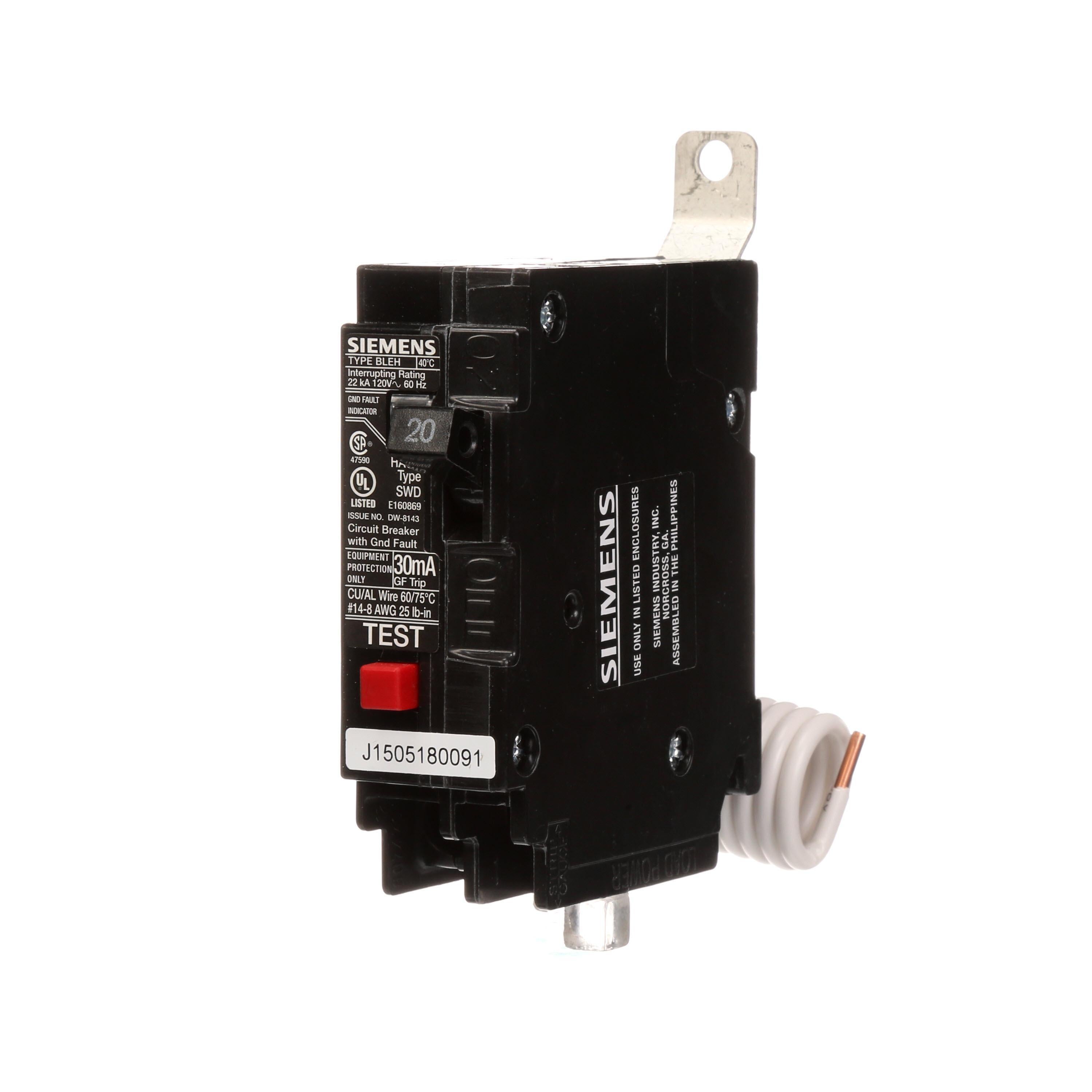

BE120H | Siemens 20A 1-Pole 120V Ground Fault Circuit Breaker 22kAIC Bolt-On
- Regular price
- $252.00
- Sale price
- $252.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BE120H
Description
The Siemens BE120H is a 1-Pole Ground Fault Circuit Breaker designed for reliable protection of electrical circuits against overloads, short circuits, and ground faults. With a current rating of 20 Amps and 120 VAC voltage capacity, this breaker provides dependable safety in residential and commercial electrical systems. It features a 22kAIC interrupting rating and a bolt-on mounting configuration, ensuring strong performance and secure installation in Siemens panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breakers |
| Part Number | BE120H |
| Subcategory | Ground Fault Circuit Breakers |
| Series | BL |
| Amperage Rating | 20 Amps |
| Voltage Rating | 120 VAC |
| Interrupting Rating | 22kAIC at 120V |
| Number of Poles | 1 |
| Phase | Single Phase |
| Trip Type | Thermal Magnetic |
| Protection Type | GFCI (Ground Fault Circuit Interrupter) |
| Connection Type | Bolt-On |
| Frame Type | B |
| Mounting Type | Panelboard |
| Terminal Connection | Load Side Lug |
| Approval | UL, CSA, NOM |
| Temperature Rating | 40°C |
| Wire Size Range | 14–10 AWG |
| For Use With | Siemens P1 Panelboards |
| Actuator Type | Toggle |
| Dimensions (L x W x H) | 1 in x 4 in x 5 in |
| Weight | 0.243 lb |
Information About BE120H
The BE120H is part of Siemens’ BL Series molded case circuit breakers, known for their precision engineering and compact design. It incorporates thermal-magnetic protection that provides both long-time and instantaneous trip functions for comprehensive circuit defense. The breaker’s GFCI (Ground Fault Circuit Interrupter) technology quickly disconnects power when a ground fault is detected, preventing electrical shock and equipment damage. Designed for use with Siemens P1 panelboards, the BE120H offers a durable, UL- and CSA-certified solution for code-compliant installations.
Key Features:
- Ground Fault Protection: Detects and interrupts ground faults to safeguard personnel and connected equipment.
- Thermal Magnetic Trip: Provides accurate overload and short-circuit protection through dual trip mechanisms.
- High Interrupting Rating: Rated 22kAIC at 120V for superior fault-clearing capability.
- Bolt-On Connection: Ensures stable electrical contact and easy installation into Siemens panelboards.
- Compact Design: Space-saving molded case suitable for high-density electrical systems.
- UL, CSA, and NOM Approved: Certified for use across multiple regulatory standards.
- Durable Frame Construction: Type B frame provides robust protection in demanding electrical environments.
- Temperature Rated 40°C: Maintains consistent performance across standard ambient conditions.
The BE120H delivers the reliability and precision required for safe and consistent electrical protection in residential, commercial, and industrial panelboard applications.
