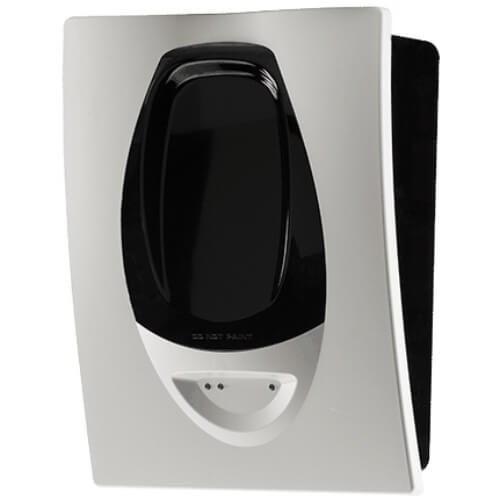

BEAM1224S | Honeywell Projected Beam Smoke Detector 15–32 VDC
- Regular price
- $1,424.05
- Sale price
- $1,424.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BEAM1224S
Description
The Honeywell BEAM1224S is a projected beam smoke detector designed for large open-area fire detection. Operating on 15 to 32 VDC, it provides reliable smoke sensing across distances from 16 to 328 feet. Its beam technology enables early detection in warehouses, atriums, and expansive commercial spaces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Fire Alarm Systems |
| Part Number | BEAM1224S |
| Subcategory | Beam Smoke Detectors |
| Detector Type | Projected Beam Smoke Detector |
| Voltage | 15–32 VDC |
| Average Standby Current | 17 mA Max @ 24 VDC |
| Average Alarm Current | 38.5 mA Max @ 24 VDC |
| Average Fault Current | 8.5 mA Max @ 24 VDC |
| Average Alignment Mode Current | 28 mA Max @ 24 VDC |
| Average Current During Testing | 500 mA Max |
| Protection Range | 16 ft to 328 ft (5 m to 100 m) |
| Operating Temperature | –22°F to 131°F (–30°C to 55°C) |
| Dimensions | 10" H x 7.5" W x 3.3" D (254 x 191 x 84 mm) |
| Weight | 2 lb |
Information About BEAM1224S
The BEAM1224S is a Honeywell conventional projected beam smoke detector engineered for wide-area coverage where spot-type detectors are impractical. It utilizes an optical beam transmitter and receiver to monitor smoke presence over extended distances up to 328 feet (100 meters). Designed for 24 VDC fire alarm systems, it features defined current draws for standby, alarm, alignment, and fault conditions to support system supervision. The detector operates within a temperature range of –22°F to 131°F, making it suitable for commercial and industrial indoor environments.
Key Features:
- Extended Protection Range: Covers distances from 16 ft to 328 ft (5 m to 100 m).
- Wide Voltage Range: Operates between 15 and 32 VDC for system compatibility.
- Low Standby Current: 17 mA maximum at 24 VDC for efficient system operation.
- Distinct Alarm & Fault Currents: 38.5 mA alarm and 8.5 mA fault current for clear panel signaling.
- Alignment Mode Support: 28 mA maximum during beam alignment.
- High-Test Current Capacity: Up to 500 mA during testing procedures.
- Broad Temperature Tolerance: Functions from –22°F to 131°F (–30°C to 55°C).
- Compact Housing: Measures 10" H x 7.5" W x 3.3" D for streamlined installation.
The BEAM1224S delivers the reliability and precision required for large-area smoke detection in commercial and industrial fire alarm systems.
