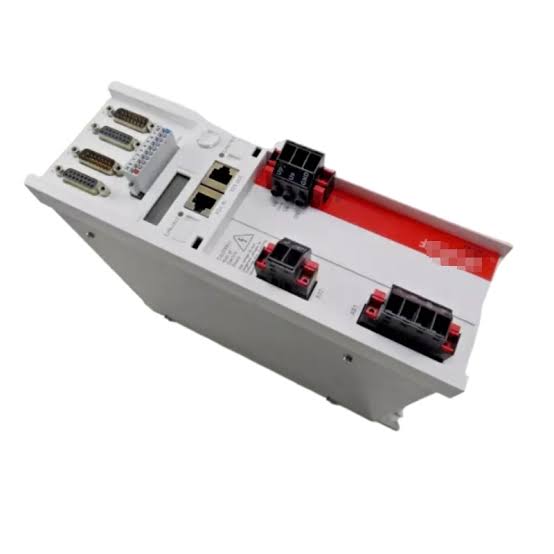

Beckhoff AX5206-0000-0202 AX5000 2-Channel Digital Servo Drive
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AX5206-0000-0202
Description

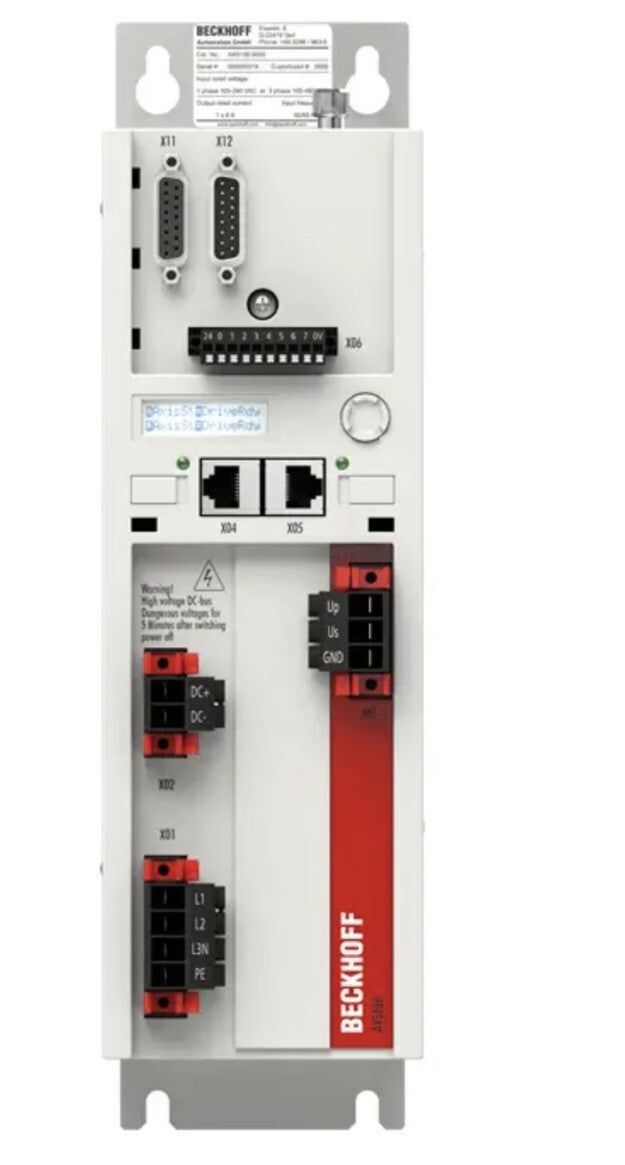

The Beckhoff AX5206-0000-0202 is a two-channel digital servo drive from the AX5000 series designed for precise control of synchronous and induction motors. It accepts single-phase or three-phase AC input power and provides controlled motor output up to 6 A per channel. The drive is intended for cabinet-mounted motion-control applications requiring coordinated speed, torque, and positioning control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Servo Products |
| Part Number | AX5206-0000-0202 |
| Subcategory | Servo Drive/Servo Control |
| Product Series | AX5000 |
| Channel Configuration | 2-Channel |
| Input Voltage | 100–240 VAC, 1-Phase / 100–480 VAC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Input Current | 17.1 A, 1-Phase / 13.2 A, 3-Phase |
| Output Voltage | 0–240 VAC |
| Output Frequency | 0–599 Hz |
| Output Current | 4.5 A, 1-Phase / 6 A, 3-Phase |
| Continuous Current Per Channel | 6 A |
| Nominal Combined Current | 12 A |
| Peak Device Current | 26 A |
| DC Link Capacitance | 470 µF |
| Maximum DC Link Voltage | 875 VDC |
| Continuous Brake Power | 90 W |
| Peak Braking Power | 15 kW |
| Minimum External Braking Resistance | 47 Ω |
| Power Loss | 160 W |
| Protection Rating | IP20 |
| Dimensions | 92 × 317.70 × 232 mm (W × H × D) |
| Motor Compatibility | Synchronous and Induction Motors |
| Weight | 11.00 lbs |
Information About AX5206-0000-0202
The AX5206-0000-0202 combines two servo amplifier channels in a single housing and uses a shared DC link for multi-axis motion applications. Each channel supports a continuous current of 6 A, while the device provides a nominal combined current of 12 A and peak current capability of 26 A. Its integrated DC link and braking circuit support regenerative energy handling, including connection to an external braking resistor. The IP20 enclosure and cabinet-oriented construction make the unit suitable for installation within industrial control panels.
Key Features:
- Dual-Channel Design: Provides two servo amplifier channels in a single AX5000-series housing.
- Flexible AC Input: Supports 100–240 VAC single-phase or 100–480 VAC three-phase input configurations.
- 6 A Per Channel: Provides a continuous output current of 6 A for each servo channel.
- 12 A Combined Current: Supports a nominal three-phase sum current of 12 A across the device.
- High Peak Current: Provides up to 26 A peak device current for demanding acceleration requirements.
- Regenerative Energy Handling: Includes an integrated braking circuit for managing regenerative motor energy.
- IP20 Protection: Provides finger-safe protection for installation inside a suitable control cabinet.
- Industrial Motion Control: Supports servo applications requiring controlled motor speed and torque.
The AX5206-0000-0202 delivers the reliability and precision required for multi-axis industrial servo motion control.
