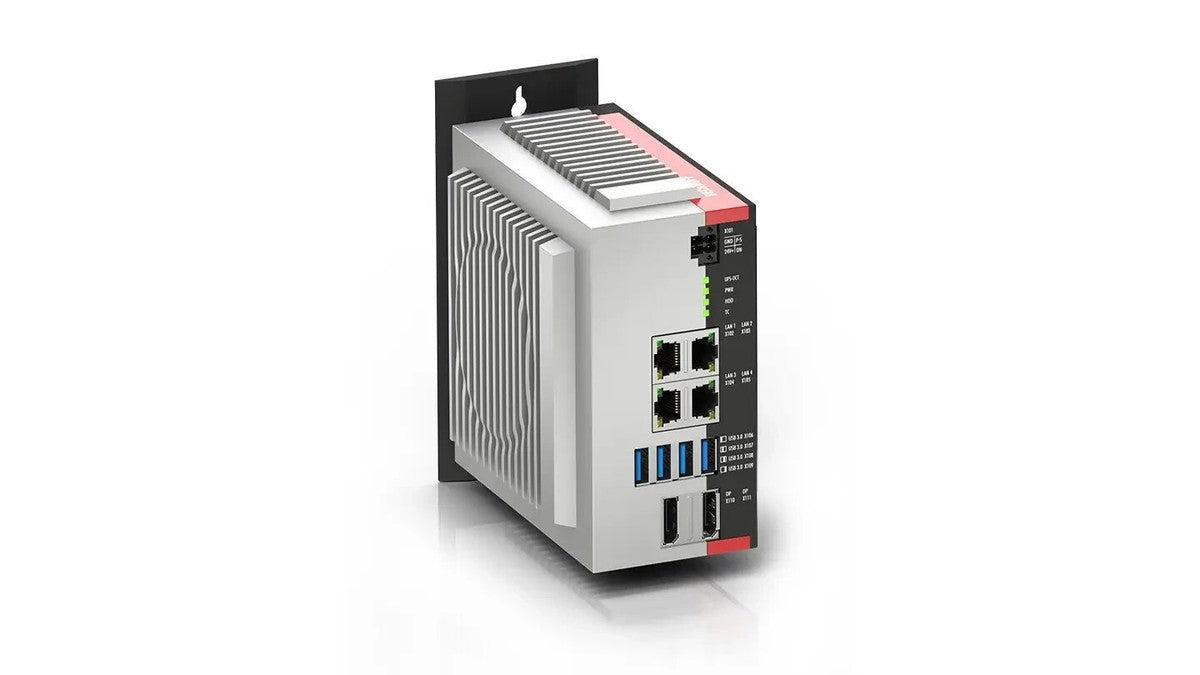

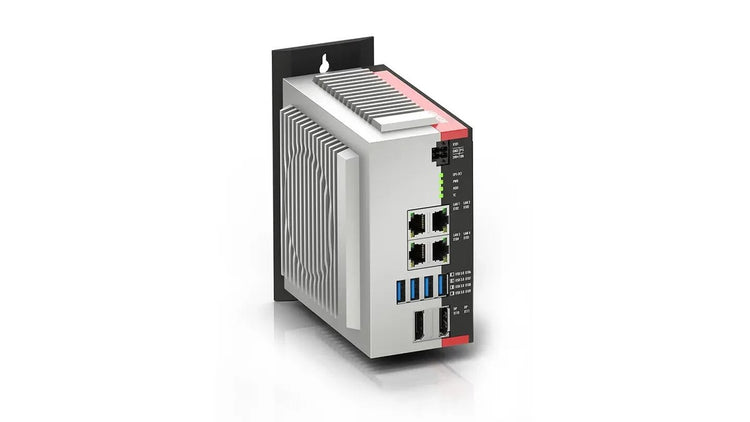

Beckhoff C6030-0070 Ultra-Compact Industrial PC for Machine Control
- Regular price
- $3,899.00
- Sale price
- $3,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: C6030-0070
Description
The Beckhoff C6030-0070 is an ultra-compact industrial PC designed for control cabinet applications in automation and machine control systems. It features an Intel Celeron processor configuration, 4 GB DDR4 RAM, a 40 GB M.2 SSD, four Ethernet ports, four USB interfaces, and two DisplayPort outputs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Computer |
| Part Number | C6030-0070 |
| Subcategory | Ultra-Compact Industrial PCs |
| Device Type | Ultra-compact control cabinet PC |
| Housing | Aluminum-zinc die-cast housing |
| Mounting | Mounting sheet at rear wall or side wall |
| Processor | Intel Celeron G4900, 3.1 GHz, 2 cores |
| Memory | 4 GB DDR4 RAM |
| Maximum Memory | Up to 64 GB DDR4 RAM |
| Storage | 40 GB M.2 SSD |
| Maximum Storage | Up to 1280 GB M.2 SSD |
| Ethernet | 4 x 100/1000BASE-T |
| USB Interfaces | 4 x USB 3.1 Gen. 1 |
| Display Interfaces | 2 x DisplayPort |
| Power Supply | 24 V DC |
| Protection Rating | IP20 |
| Operating Temperature | 0...55 °C |
| Air Circulation Clearance | 5 cm (2 in) around the PC |
| Dimensions | 132 x 133 x 76 mm (5.2 x 5.24 x 3.0 in), without mounting plate |
| Operating Systems | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2019, TwinCAT/BSD |
| Weight | 6.41 lbs |
Information About C6030-0070
The C6030-0070 belongs to Beckhoff’s C60xx series of ultra-compact industrial PCs for industrial control and computing applications. Its compact aluminum-zinc die-cast housing supports rear-wall or side-wall mounting through an appropriate mounting plate. The system provides a 24 V DC power supply, IP20 protection, and operating temperatures from 0 to 55 °C. Storage and processing configurations can be expanded within the C60xx platform, with support for up to 64 GB DDR4 RAM and higher-performance 8th/9th generation Intel processors depending on configuration.
Key Features:
- Processor: Intel Celeron G4900 3.1 GHz dual-core processor configuration.
- Memory: 4 GB DDR4 RAM with platform support for up to 64 GB.
- Storage: 40 GB M.2 SSD with platform support for larger M.2 storage configurations.
- Ethernet: Four integrated 100/1000BASE-T Ethernet ports for industrial network communication.
- USB Connectivity: Four USB 3.1 Gen. 1 ports for peripheral and device connections.
- Display Outputs: Two DisplayPort interfaces support industrial display equipment.
- Power Supply: Operates from a 24 V DC power source.
- Protection: IP20-rated aluminum-zinc die-cast housing for control cabinet installation.
The C6030-0070 delivers the reliability and precision required for industrial automation, machine control, visualization, and control cabinet computing.
Description
The Beckhoff C6030-0070 is an ultra-compact industrial PC designed for control cabinet applications in automation and machine control systems. It features an Intel Celeron processor configuration, 4 GB DDR4 RAM, a 40 GB M.2 SSD, four Ethernet ports, four USB interfaces, and two DisplayPort outputs.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Computer |
| Part Number | C6030-0070 |
| Subcategory | Ultra-Compact Industrial PCs |
| Device Type | Ultra-compact control cabinet PC |
| Housing | Aluminum-zinc die-cast housing |
| Mounting | Mounting sheet at rear wall or side wall |
| Processor | Intel Celeron G4900, 3.1 GHz, 2 cores |
| Memory | 4 GB DDR4 RAM |
| Maximum Memory | Up to 64 GB DDR4 RAM |
| Storage | 40 GB M.2 SSD |
| Maximum Storage | Up to 1280 GB M.2 SSD |
| Ethernet | 4 x 100/1000BASE-T |
| USB Interfaces | 4 x USB 3.1 Gen. 1 |
| Display Interfaces | 2 x DisplayPort |
| Power Supply | 24 V DC |
| Protection Rating | IP20 |
| Operating Temperature | 0...55 °C |
| Air Circulation Clearance | 5 cm (2 in) around the PC |
| Dimensions | 132 x 133 x 76 mm (5.2 x 5.24 x 3.0 in), without mounting plate |
| Operating Systems | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise 2024 LTSC, Windows Server 2019, TwinCAT/BSD |
| Weight | 6.41 lbs |
Information About C6030-0070
The C6030-0070 belongs to Beckhoff’s C60xx series of ultra-compact industrial PCs for industrial control and computing applications. Its compact aluminum-zinc die-cast housing supports rear-wall or side-wall mounting through an appropriate mounting plate. The system provides a 24 V DC power supply, IP20 protection, and operating temperatures from 0 to 55 °C. Storage and processing configurations can be expanded within the C60xx platform, with support for up to 64 GB DDR4 RAM and higher-performance 8th/9th generation Intel processors depending on configuration.
Key Features:
- Processor: Intel Celeron G4900 3.1 GHz dual-core processor configuration.
- Memory: 4 GB DDR4 RAM with platform support for up to 64 GB.
- Storage: 40 GB M.2 SSD with platform support for larger M.2 storage configurations.
- Ethernet: Four integrated 100/1000BASE-T Ethernet ports for industrial network communication.
- USB Connectivity: Four USB 3.1 Gen. 1 ports for peripheral and device connections.
- Display Outputs: Two DisplayPort interfaces support industrial display equipment.
- Power Supply: Operates from a 24 V DC power source.
- Protection: IP20-rated aluminum-zinc die-cast housing for control cabinet installation.
The C6030-0070 delivers the reliability and precision required for industrial automation, machine control, visualization, and control cabinet computing.
