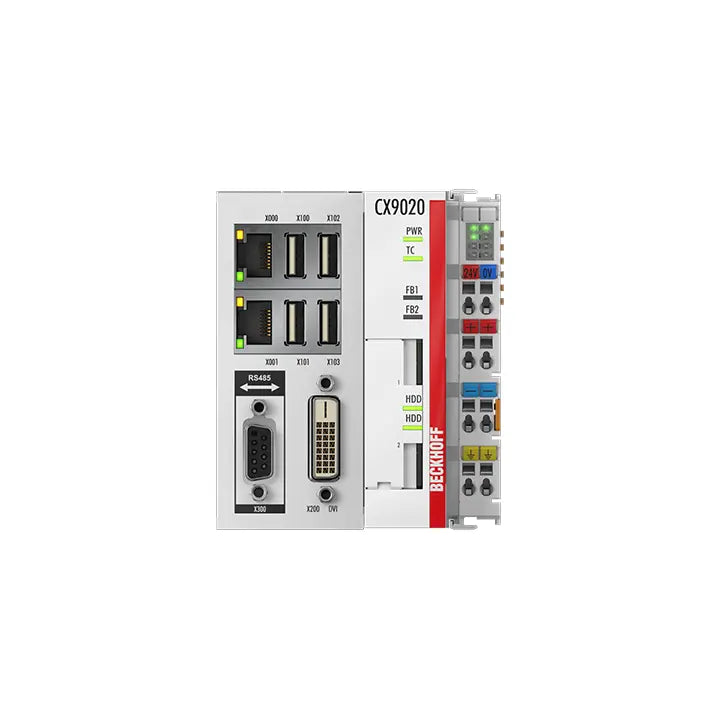

CX9020-0112 | Beckhoff DIN Rail CPU Module with Windows Embedded Compact 7
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CX9020-0112
Description
The Beckhoff CX9020-0112 CPU module is a compact DIN rail–mounted controller designed for embedded automation and motion control applications. It runs Windows Embedded Compact 7 and supports TwinCAT NC PTP runtime for precise machine control tasks. This CPU module delivers reliable performance in space-constrained industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | CX9020-0112 |
| Subcategory | CPU Modules |
| Operating System | Windows Embedded Compact 7 |
| Runtime Environment | TwinCAT NC PTP |
| Processor Type | Embedded CPU |
| RAM | 1 GB DDR3 |
| Non-Volatile Memory | 128 KB NOVRAM |
| Flash Memory | 512 MB microSD (Dual Slots) |
| Power Supply | 24 V DC |
| Max Power Consumption | 5 W |
| I/O Current Supply | 2 A |
| Interfaces | 2 × RJ45 Ethernet (internal switch), 4 × USB 2.0, 1 × DVI-D |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Enclosure Protection | IP54 (installed in terminal box) |
| Operating Temperature | -25 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Certifications | CE, UL, GL |
| Dimensions | 84 × 99 × 91 mm (W × H × D) |
| Weight | 590 g |
Information About CX9020-0112
The CX9020-0112 is part of Beckhoff’s CX9000 series, developed as a cost-efficient yet capable CPU module for industrial automation systems. It is designed for installation inside a terminal box and supports automatic detection of connected bus systems. The controller features integrated Ethernet switching, multiple USB interfaces, and DVI-D output for flexible system integration. Its modular design allows configuration to meet task-specific requirements while maintaining low power consumption.
Key Features:
- Embedded CPU Module Design: Engineered for compact control cabinet and terminal box installation.
- Windows Embedded Compact 7 OS: Provides a stable real-time operating environment for automation tasks.
- TwinCAT NC PTP Runtime Support: Enables precise point-to-point motion control.
- Integrated Communication Interfaces: Includes dual RJ45 Ethernet ports with internal switch functionality.
- Low Power Consumption: Operates with a maximum power draw of 5 W.
- Modular and Cost-Efficient Platform: Designed for budget-conscious automation applications.
- Wide Operating Temperature Range: Supports reliable operation in industrial environments.
The CX9020-0112 delivers the reliability and precision required for embedded automation and motion control systems.
