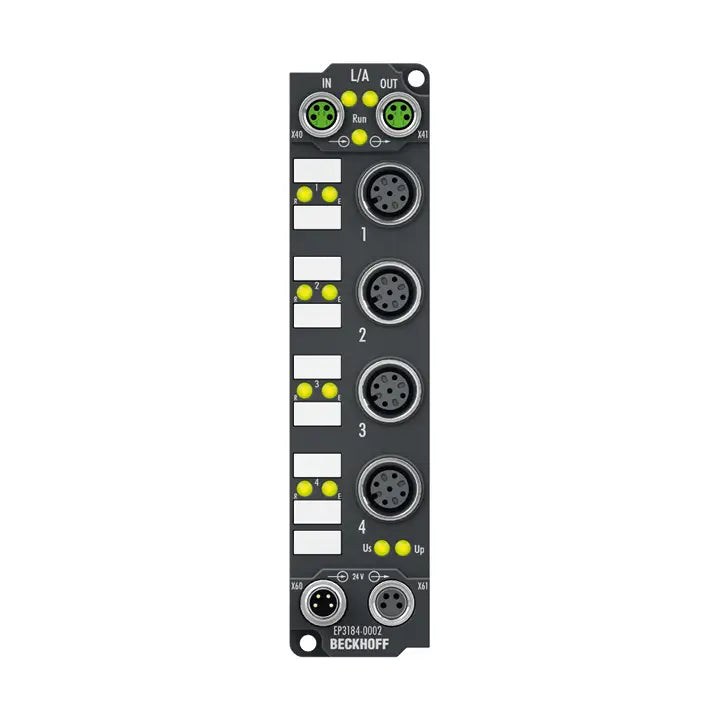

EP3184-0002 | Beckhoff EtherCAT Box 4-Channel Analog Input Module
- Regular price
- $617.00
- Sale price
- $617.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EP3184-0002
Description
The Beckhoff EP3184-0002 is an industrial EtherCAT Box designed for high-precision analog signal acquisition in automation systems. This 4-channel analog input module converts sensor voltages or currents into digitized data for processing via EtherCAT. It delivers flexible input configuration and reliable performance in harsh industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Part Number | EP3184-0002 |
| Category | Sensors & Switches |
| Subcategory | Interbus Module & Hub |
| Protocol | EtherCAT |
| Number of Inputs | 4 analog inputs |
| Input Type | Voltage and current |
| Voltage Range | -10/0 to +10 V |
| Current Range | 0/4-20 mA |
| Resolution | 16 bit |
| Input Configuration | Single-ended |
| Input Connections | 4 × M12 |
| Nominal Supply Voltage | 24 V DC |
| Protection Rating | IP65/66/67 |
| Housing | Industrial housing |
| Weight | 0.40 lbs |
Information About EP3184-0002
The EP3184-0002 is part of Beckhoff’s EtherCAT Box series of decentralized I/O modules tailored to EtherCAT-based automation networks. It features an industrial housing with an IP65/66/67 rating suitable for field installation. Each of its four input channels can be configured for voltage (-10/0 to +10 V) or current (0/4–20 mA) measurement, offering versatility for process signals. The 16-bit single-ended inputs provide high resolution and electrical isolation, making the module compatible with a wide range of sensors and controllers.
Key Features:
- Multi-Channel Analog Input: Four independently configurable analog inputs for flexible signal acquisition.
- Configurable Signal Types: Supports both voltage (±10 V) and current (0/4–20 mA) inputs per channel.
- High Resolution Conversion: 16-bit resolution digitization for precise measurement.
- Industrial Communication: EtherCAT bus interface provides real-time data transfer.
- Robust Industrial Housing: IP65/66/67 protected enclosure withstands harsh environments.
- M12 Connectivity: Each channel includes an M12 input connector for secure sensor connection.
- Electrical Isolation: 500 V isolation between measurement and automation network enhances safety.
- Fast Conversion Time: Typical conversion time around 100 μs for responsive data capture.
The EP3184-0002 delivers the reliability and precision required for distributed analog signal acquisition in industrial automation networks.
