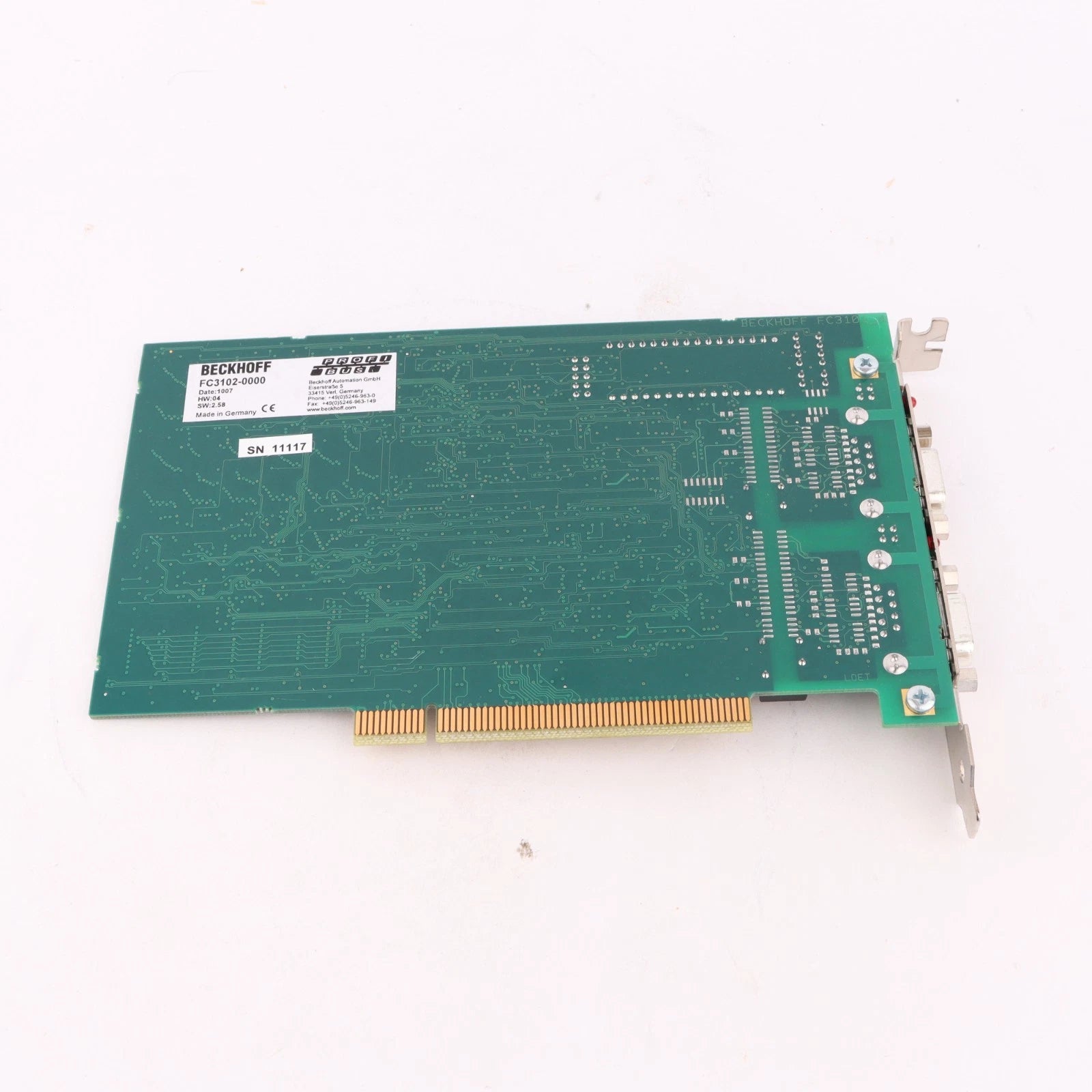

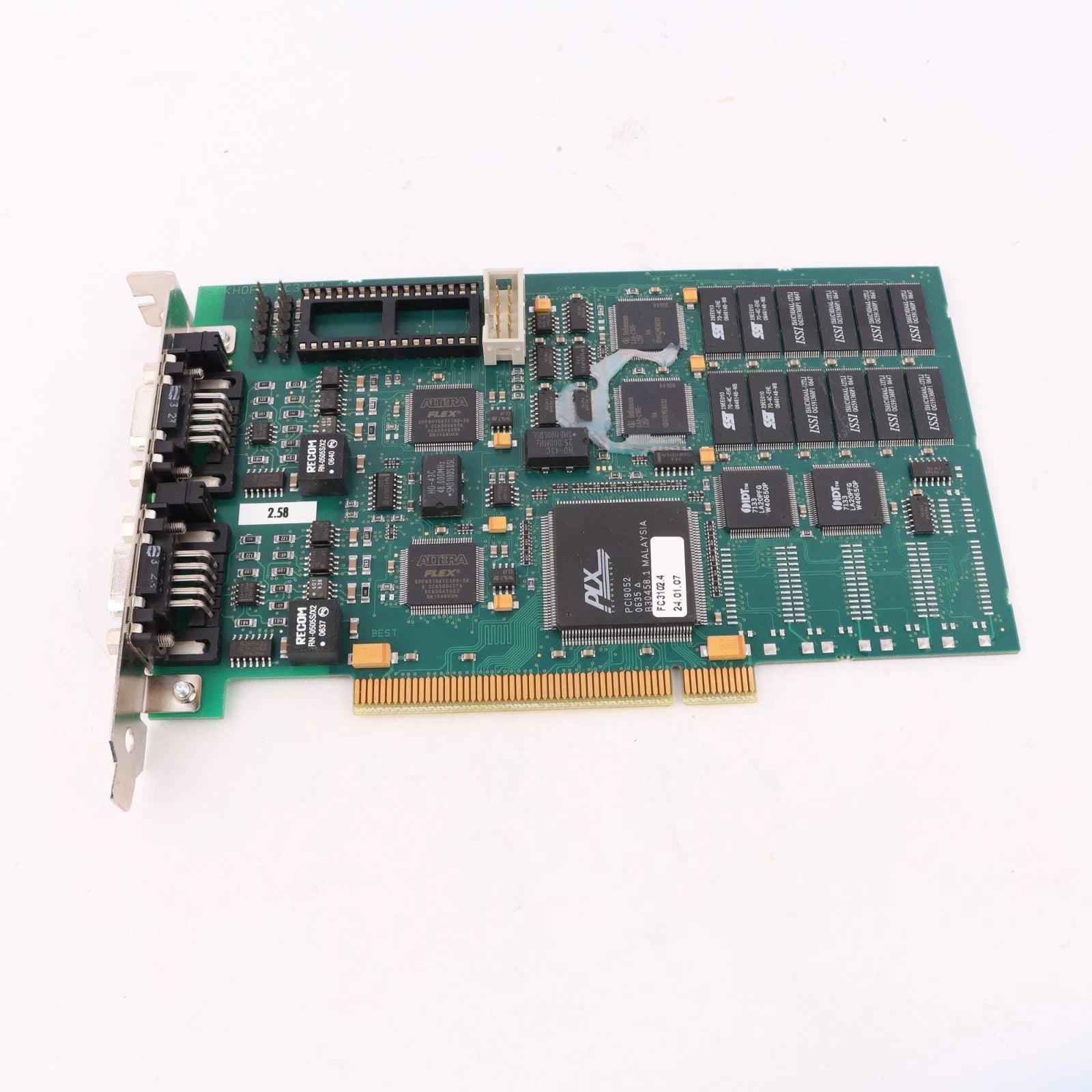

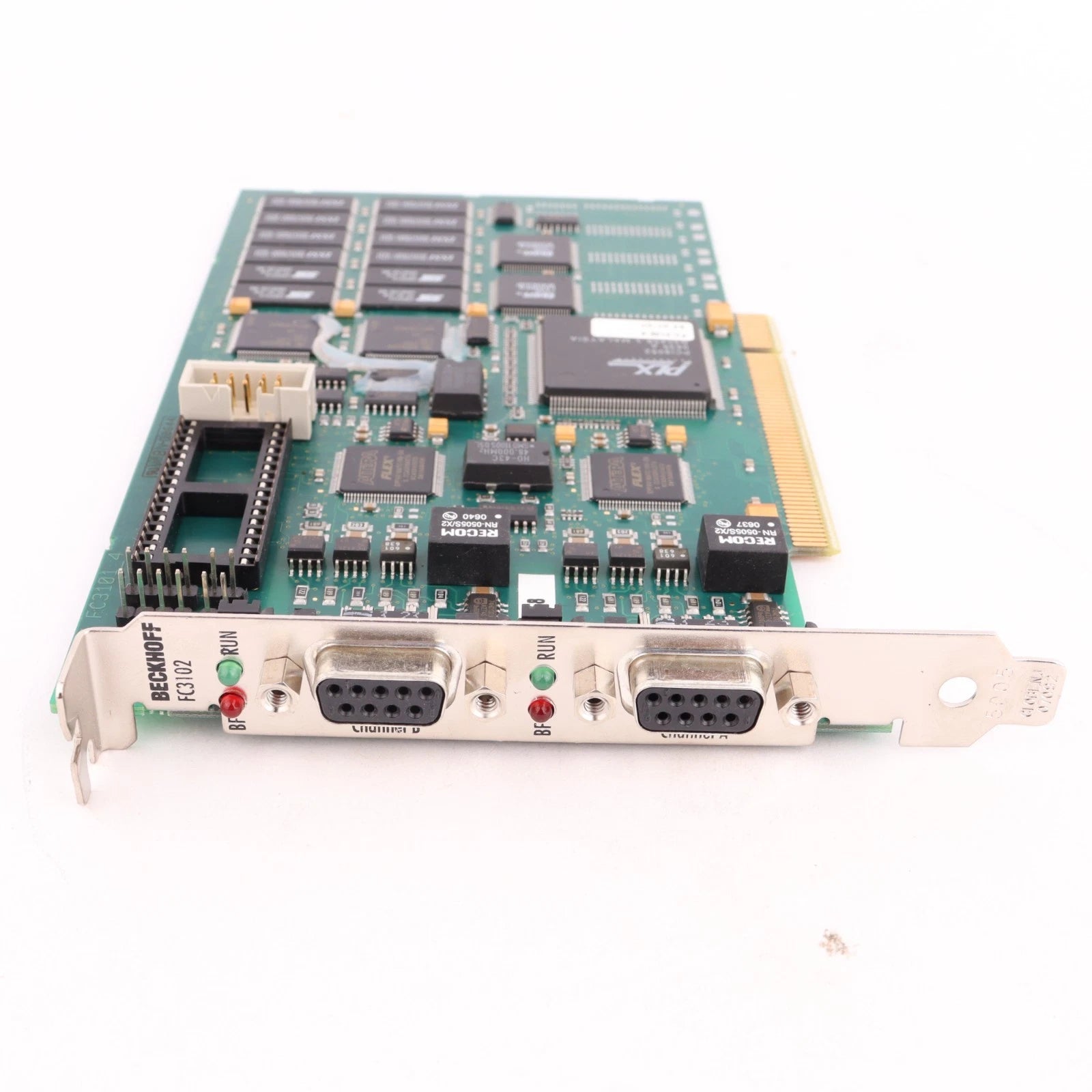

FC3102-0000 | Beckhoff PROFIBUS Master PCI Interface Card, 2-Channel
- Regular price
- $2,209.00
- Sale price
- $2,209.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FC3102-0000
Description
The Beckhoff FC3102-0000 is a PCI-based PROFIBUS master interface card designed for industrial PC automation systems. It provides two independent PROFIBUS channels with high-speed data transfer for reliable fieldbus communication. The card enables deterministic control and monitoring of PROFIBUS DP networks in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Sensors & Switches |
| Part Number | FC3102-0000 |
| Subcategory | Interbus Module & Hub |
| Model Number | FC3102-0000 |
| Bus / PC Interface | PCI |
| Fieldbus Type | PROFIBUS DP, DP-V1, DP-V2 (MC) |
| Number of Channels | 2 |
| Data Transfer Rate | 9.6 kbaud to 12 Mbaud |
| Bus Interface Connectors | 2 × D-sub 9-pin |
| Electrical Isolation | Galvanically isolated |
| Process Image | 2 × 3 kB input, 2 × 3 kB output |
| Diagnostics | 2 LEDs per channel |
| Dimensions | Approx. 106 mm × 175 mm (single-slot) |
| Operating Temperature | 0 to 55 °C |
| Weight | 0.40 lbs |
Information About FC3102-0000
The FC3102-0000 is part of Beckhoff’s range of fieldbus interface cards engineered for Industrial PC platforms. It installs into a standard PCI slot and allows a PC-based controller to function as a PROFIBUS master for distributed I/O and automation devices. Supporting PROFIBUS DP, DP-V1, and DP-V2 (MC), the card enables cyclic and acyclic data exchange as well as isochronous motion control communication. Galvanically isolated bus interfaces and onboard diagnostics ensure stable operation and fault transparency in demanding industrial applications.
Key Features:
- Dual PROFIBUS Master Channels: Two independent channels allow simultaneous control of separate PROFIBUS networks.
- PCI Bus Interface: Designed for direct installation in standard PCI-based Industrial PCs.
- PROFIBUS DP Support: Enables high-speed cyclic data exchange with distributed field devices.
- DP-V1 and DP-V2 Compatibility: Supports acyclic communication and isochronous real-time data for advanced control tasks.
- Wide Data Rate Range: Operates from 9.6 kbaud up to 12 Mbaud for flexible network design.
- Galvanic Isolation: Electrically isolated bus interfaces enhance system reliability and protection.
- Integrated Diagnostics: LED indicators per channel provide immediate visual status feedback.
The FC3102-0000 delivers the reliability and precision required for high-performance PROFIBUS-based industrial communication systems.
