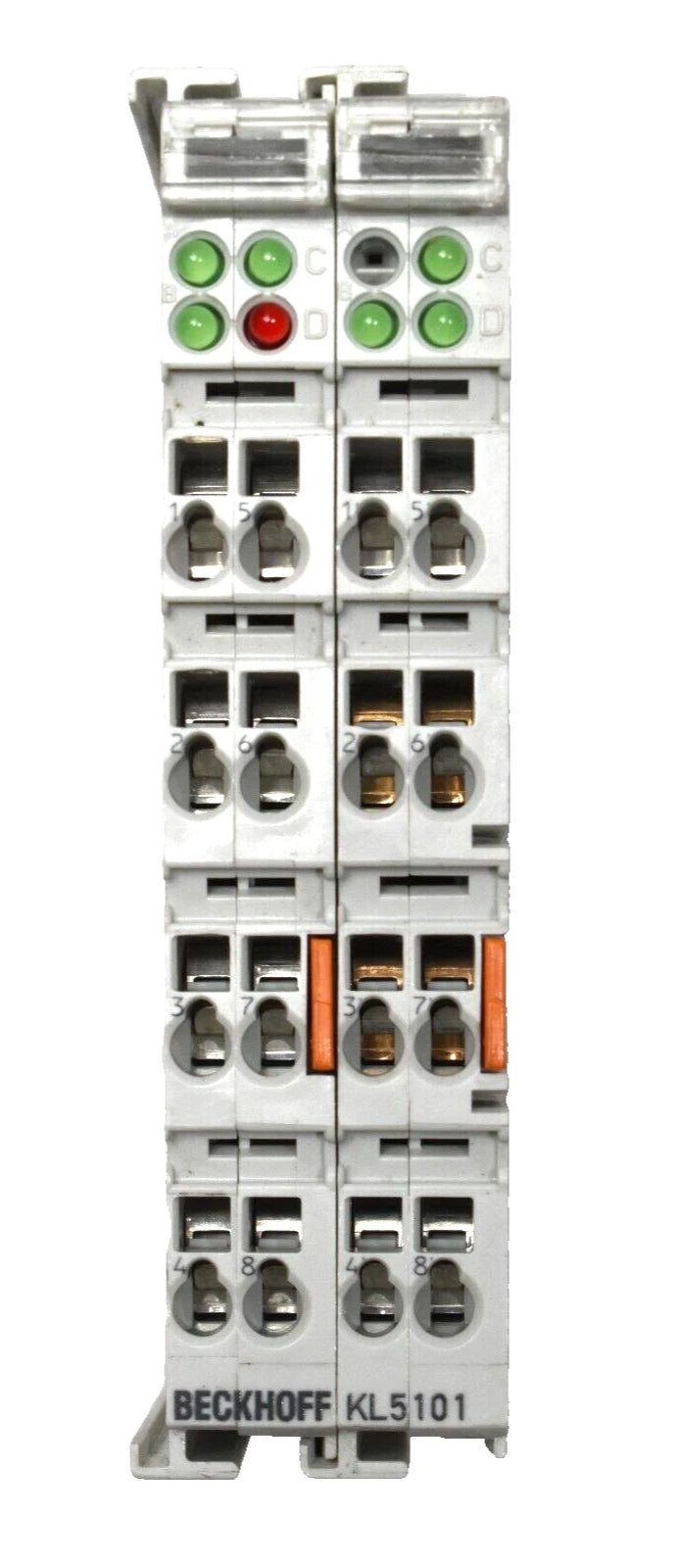

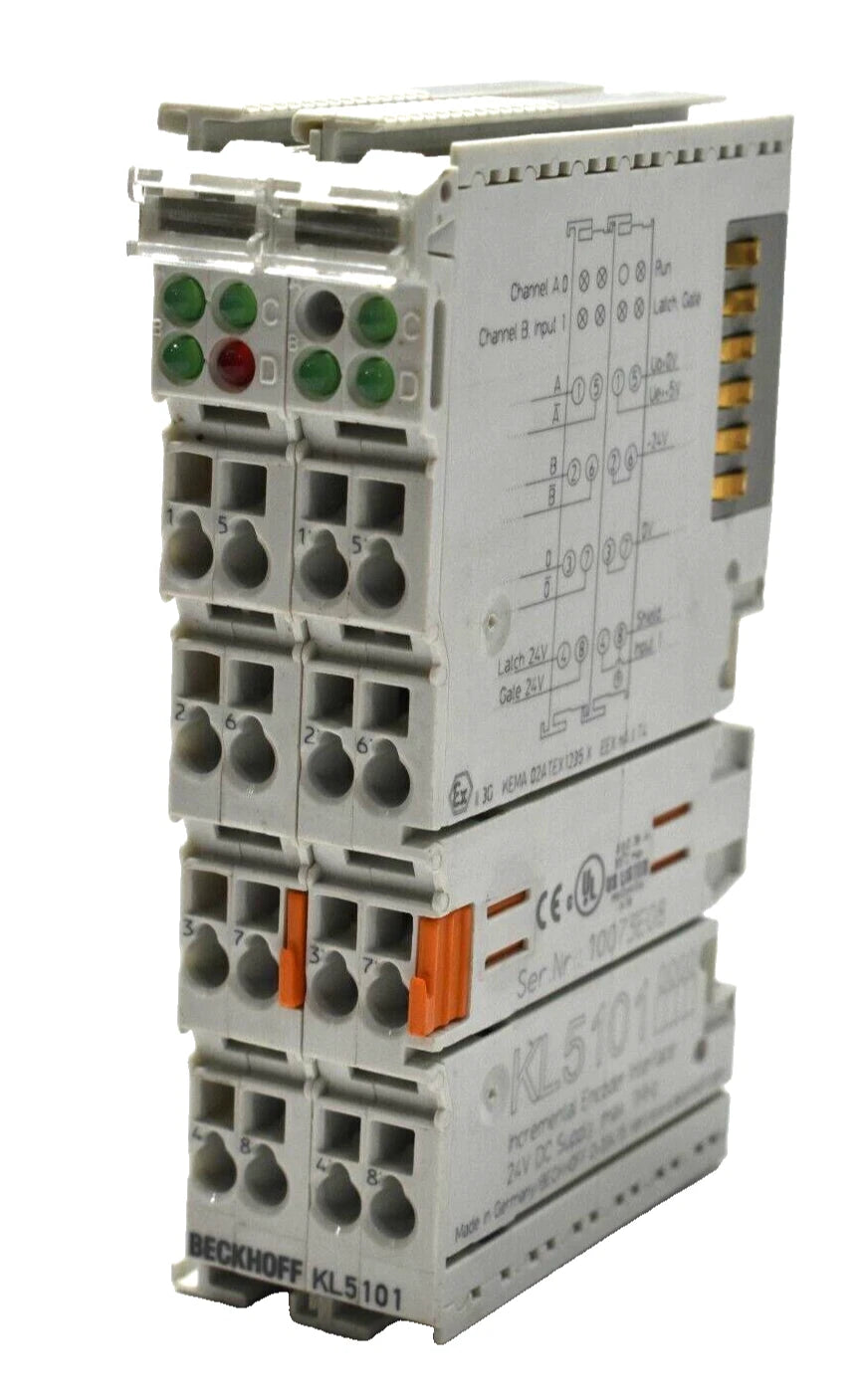

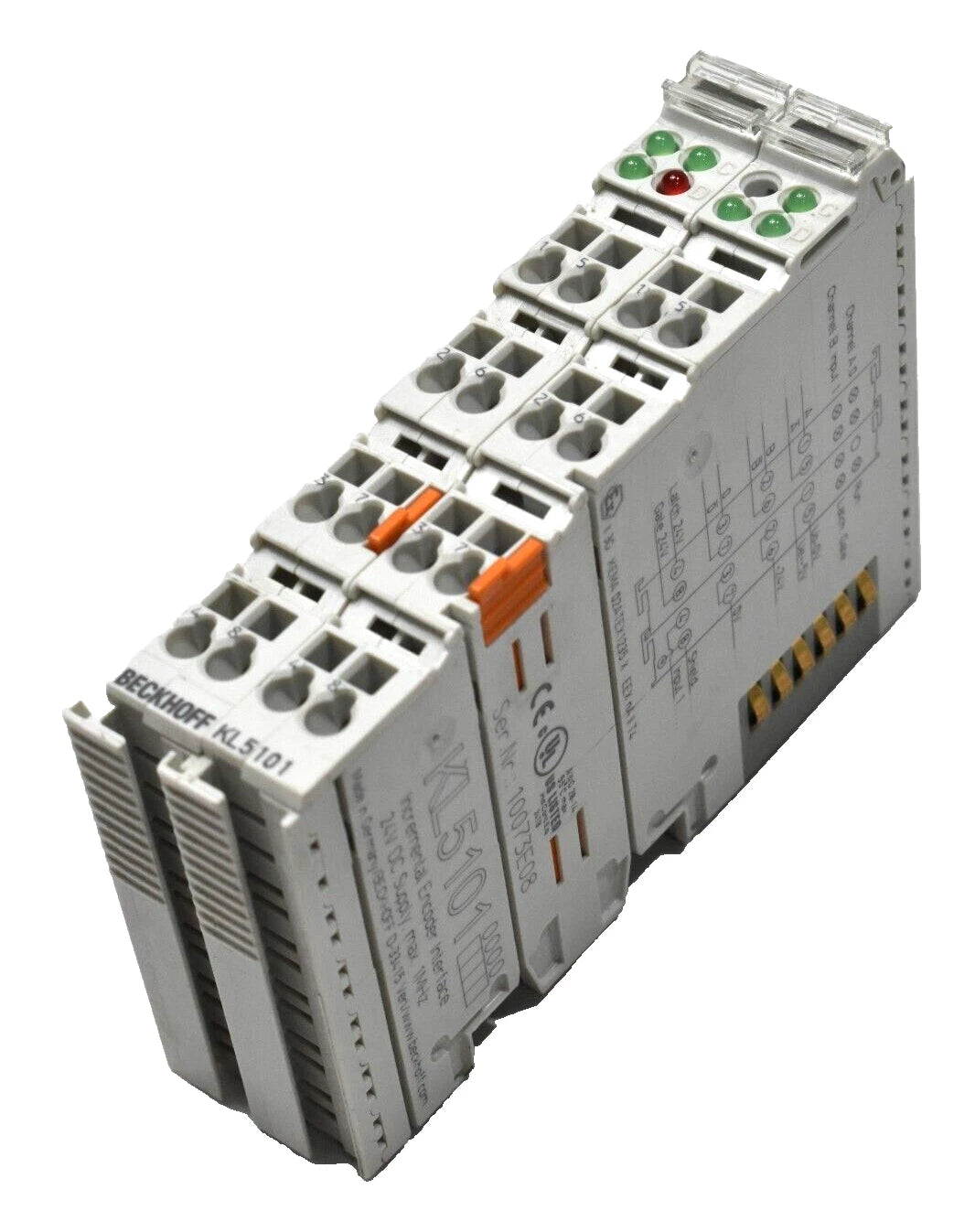

Beckhoff KL5101 Incremental Encoder Interface RS422 1-Channel Bus Terminal
- Regular price
- $315.00
- Sale price
- $315.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KL5101
Description
The Beckhoff KL5101 is a Bus Terminal designed for interfacing incremental encoders with industrial control systems. It supports differential RS422 and TTL signals with a maximum frequency of up to 1 MHz, ensuring precise position and speed feedback. This module is widely used in automation environments requiring high-speed encoder signal processing.
ย
ย
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation |
| Part Number | KL5101 |
| Subcategory | Encoder Interface Modules |
| Technology | Incremental Encoder Interface RS422 |
| Number of Channels | 1 |
| Encoder Operating Voltage | 5 V DC |
| Encoder Output Current | 0.5 A |
| Counter Type | 16-bit binary |
| Maximum Frequency | 4 million increments/s |
| Quadrature Decoder | 1x, 2x, 4x evaluation |
| Power Supply | 24 V DC (-15%/+20%) |
| Current Consumption (K-bus) | Typical 60 mA |
| Process Image Bit Width | 16-bit data, 8-bit control/status |
| Protection Rating | IP20 |
| Operating Temperature | -25 to +60 ยฐC |
| Storage Temperature | -40 to +85 ยฐC |
| Humidity | Up to 95% (non-condensing) |
| Approvals | CE, UL, ATEX, IECEx |
| Weight | 0.085 kg |
ย
ย
Information About KL5101
The KL5101 is part of the Beckhoff Bus Terminal system, enabling seamless integration into modular I/O architectures via the K-bus. It features a single-channel incremental encoder interface with differential RS422 inputs, supporting high-resolution signal acquisition and processing. The module operates with a 5 V DC encoder supply and includes additional inputs for status and gate/latch control, enhancing flexibility in motion control applications. Designed for industrial environments, it complies with international standards and supports hazardous area certifications such as ATEX and IECEx.
Key Features:
- Incremental Encoder Interface: Supports RS422 differential and TTL encoder signals
- Single-Channel Operation: Handles one encoder with additional control input
- High-Speed Processing: Up to 4 million increments per second with 4-fold evaluation
- Flexible Quadrature Decoding: Supports 1x, 2x, and 4x evaluation modes
- Integrated Counter: 16-bit binary counter for accurate position tracking
- Zero Pulse Latch: Enables precise reference point detection
- 5 V Encoder Supply: Provides stable power for connected encoder devices
- Additional Control Inputs: Includes status and gate/latch inputs for extended functionality
- Compact Bus Terminal Design: Easily integrates into Beckhoff I/O systems
- Wide Operating Temperature Range: Suitable for industrial environments from -25ยฐC to +60ยฐC
- Industrial Certifications: Meets CE, UL, ATEX, and IECEx standards
The KL5101 delivers the reliability and precision required for high-speed encoder signal acquisition and motion control systems.
