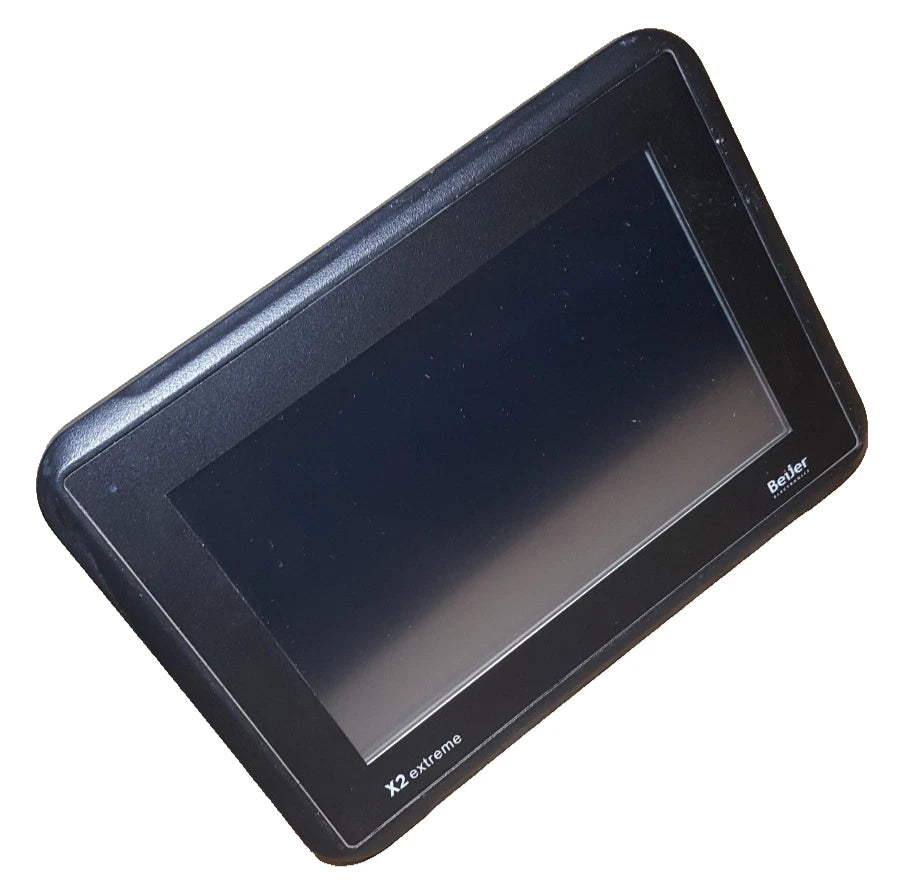

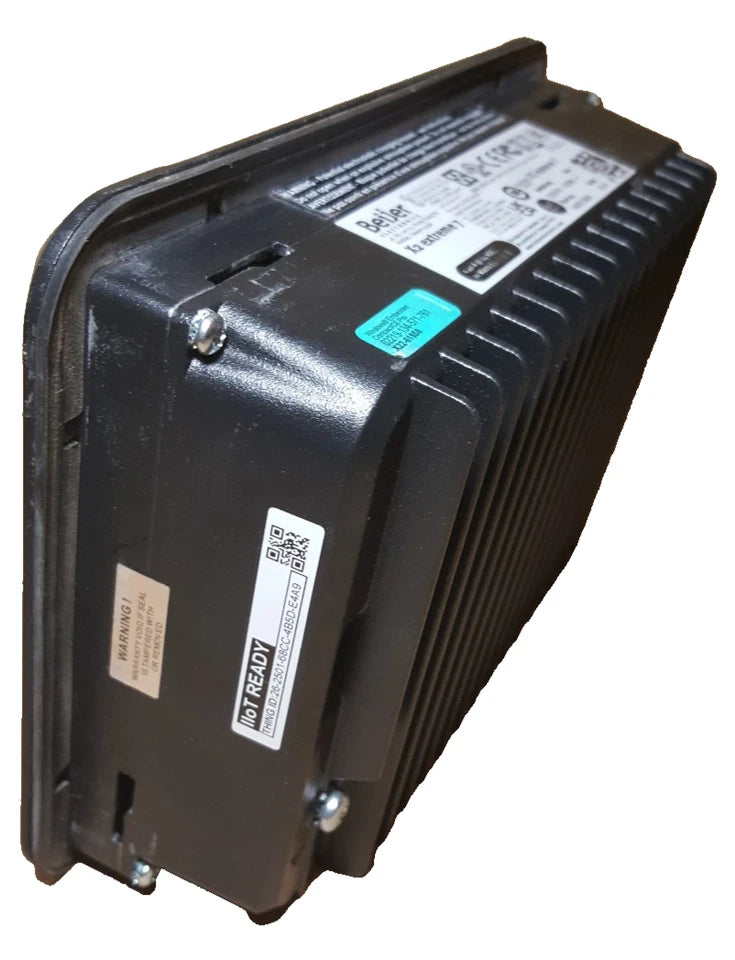

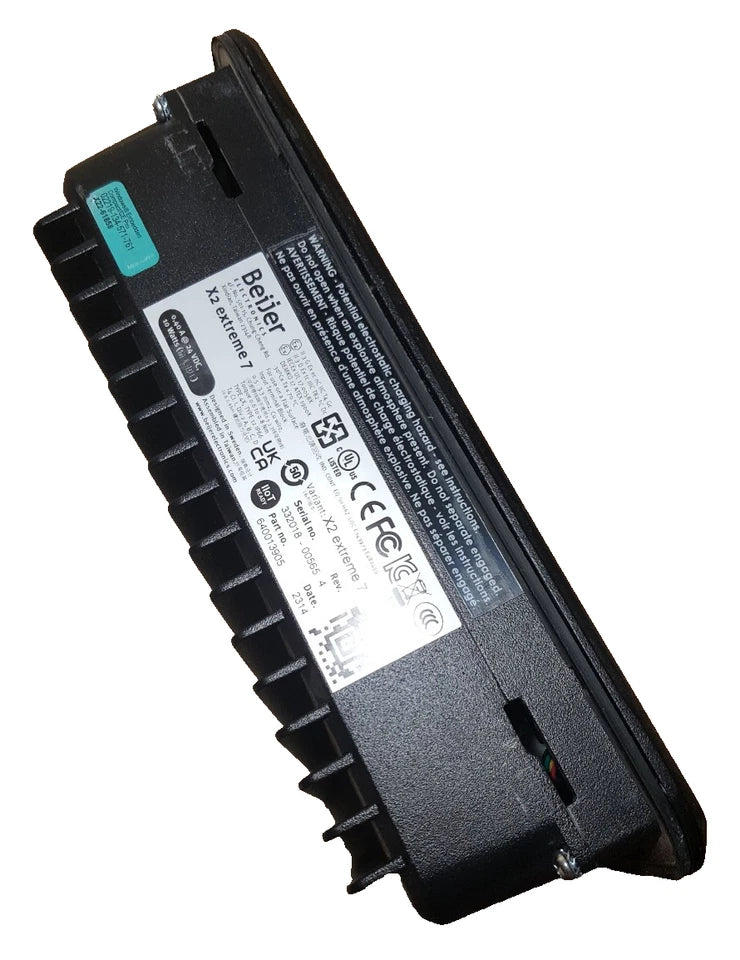

Beijer 640013905 X2 Extreme 7 Operator Interface 7-Inch Touchscreen HMI with iX Runtime
- Regular price
- $5,099.00
- Sale price
- $5,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 640013905
Description
The Beijer 640013905 is an X2 Extreme 7 operator interface designed to provide reliable visualization, monitoring, and control for industrial automation systems operating in demanding environments. This human machine interface features a 7-inch TFT-LCD touchscreen with an 800 × 480 resolution, iX Runtime software support, and 1.5 GB of application memory for advanced control applications. Its rugged construction, extended operating temperature range, and industrial certifications make it suitable for harsh industrial and marine installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beijer |
| Category | HMI / MMI / OIT |
| Part Number | 640013905 |
| Subcategory | Operator Interface |
| Series | X2 Extreme 7 |
| Product Type | Operator Interface |
| Display Size | 7 in. |
| Display Resolution | 800 × 480 pixels (16:9) |
| Display Type | TFT-LCD Resistive Touch Screen |
| Runtime Software | iX Runtime |
| Application Memory | 1.5 GB |
| Ethernet Port | 1 × 10/100 Mbit RJ45 |
| Input Voltage | 24 VDC (18–32 VDC) |
| Operating Temperature | -30°C to +70°C |
| Hazardous Area Approval | Class I Division 2 |
| Marine Certifications | DNV GL, ABS, LR, KR, CCS, BV, NK |
| Mounting | Panel Mount |
| Weight | 2.57 lbs |
Information About 640013905
The 640013905 is a member of the Beijer X2 Extreme Series, developed as a rugged operator interface for industrial automation and machine control applications. It incorporates a 7-inch resistive TFT-LCD touchscreen running the iX Runtime platform, enabling efficient visualization and communication with PLCs, drives, and other industrial devices. The unit includes a 10/100 Mbit Ethernet interface, serial communication ports, USB connectivity, and SD card support for flexible integration into modern control systems. Its wide operating temperature range, marine approvals, and Class I Division 2 certification allow reliable operation in harsh industrial, offshore, and hazardous environments.
Key Features:
- 7-Inch Touchscreen Display: Provides an 800 × 480 pixel TFT-LCD interface for clear machine visualization.
- iX Runtime Platform: Supports advanced HMI applications and intuitive operator interaction.
- 1.5 GB Application Memory: Offers ample storage for projects, graphics, and runtime applications.
- Industrial Ethernet: Includes one 10/100 Mbit RJ45 Ethernet port for network communication.
- Rugged Environmental Design: Operates in temperatures from -30°C to +70°C for demanding installations.
- Hazardous Location Approval: Certified for Class I Division 2 environments and additional hazardous area standards.
- Marine Certified: Approved for marine applications by multiple international classification societies.

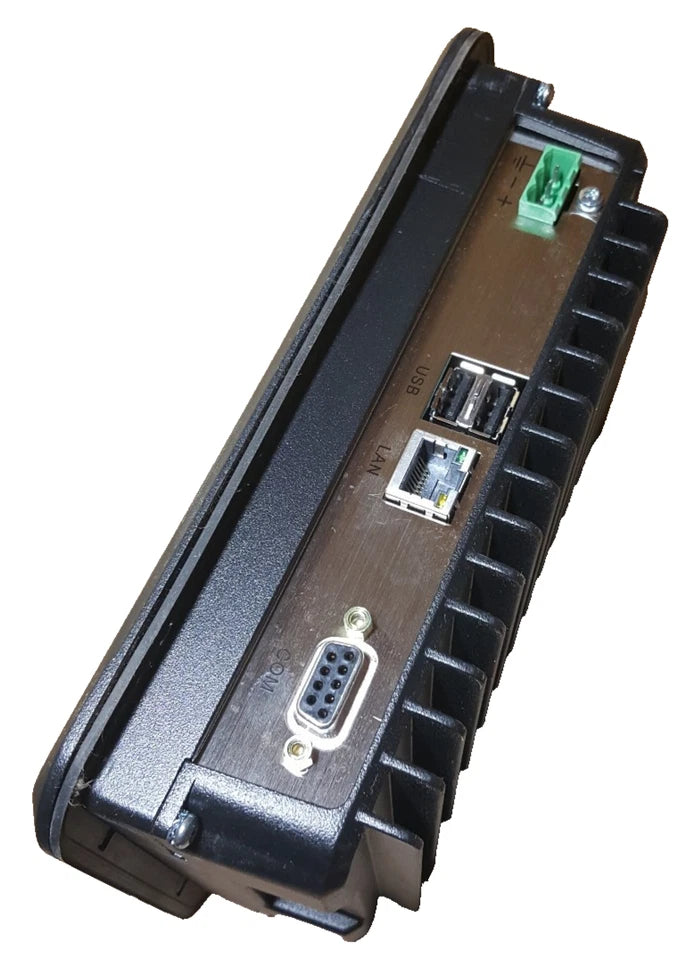

- Flexible Connectivity: Supports USB, SD card, RS-232, RS-422, RS-485, and CAN communication interfaces.
The 640013905 delivers the reliability and precision required for industrial operator interface applications in harsh, hazardous, and marine automation environments.
