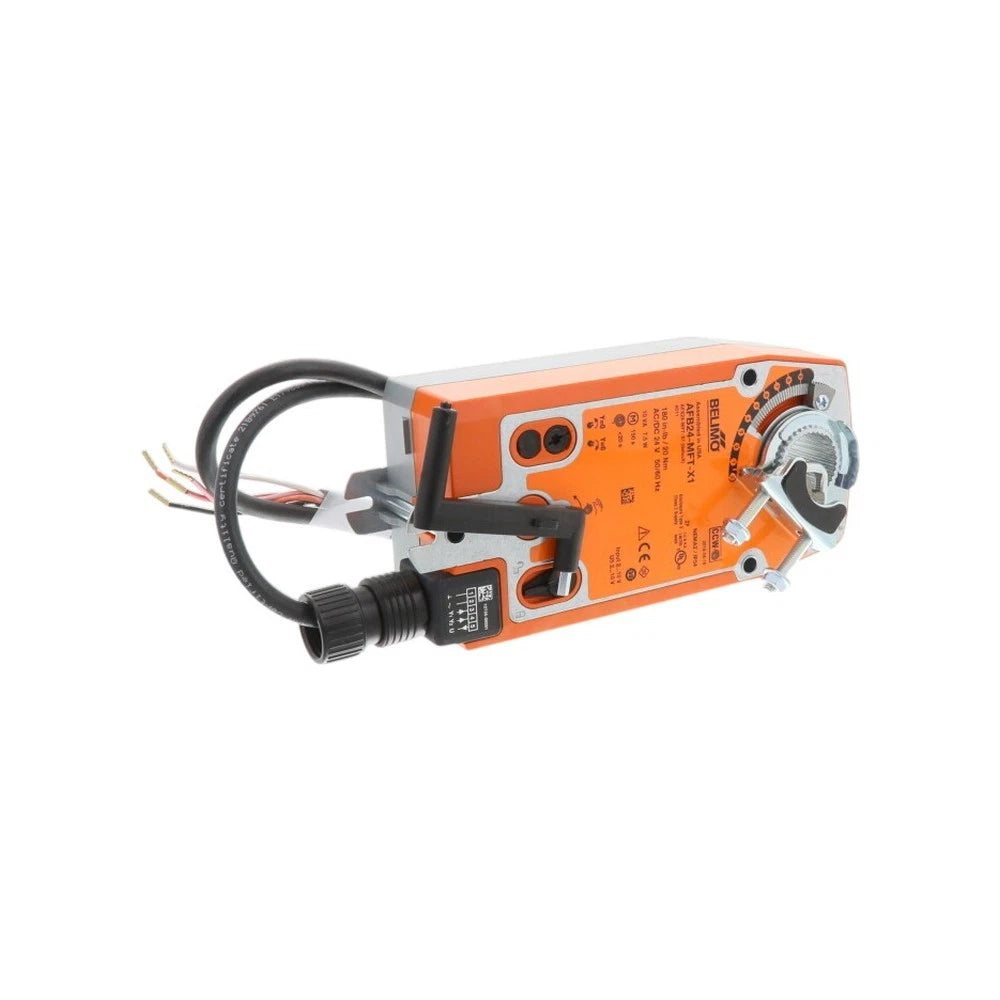

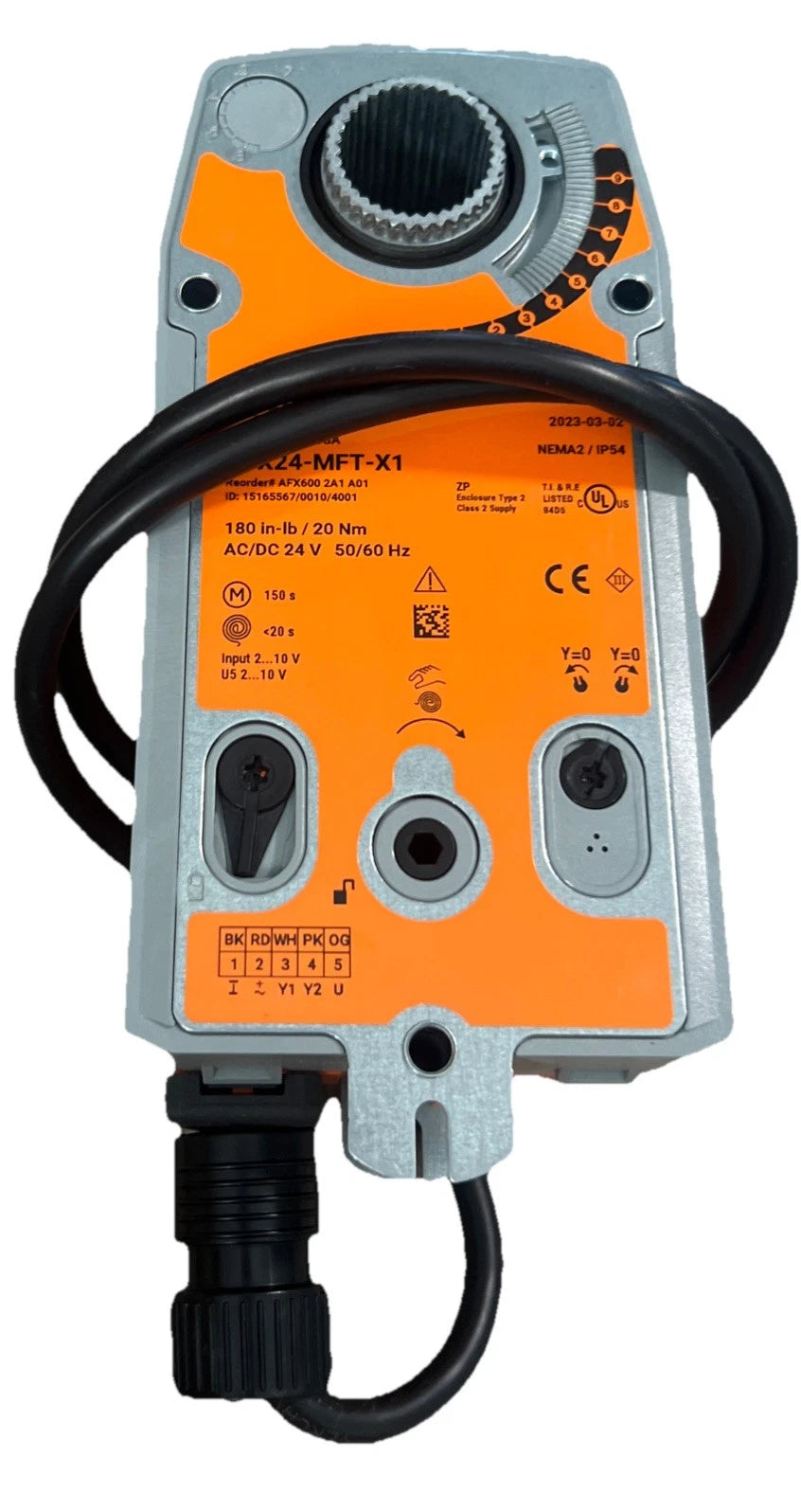

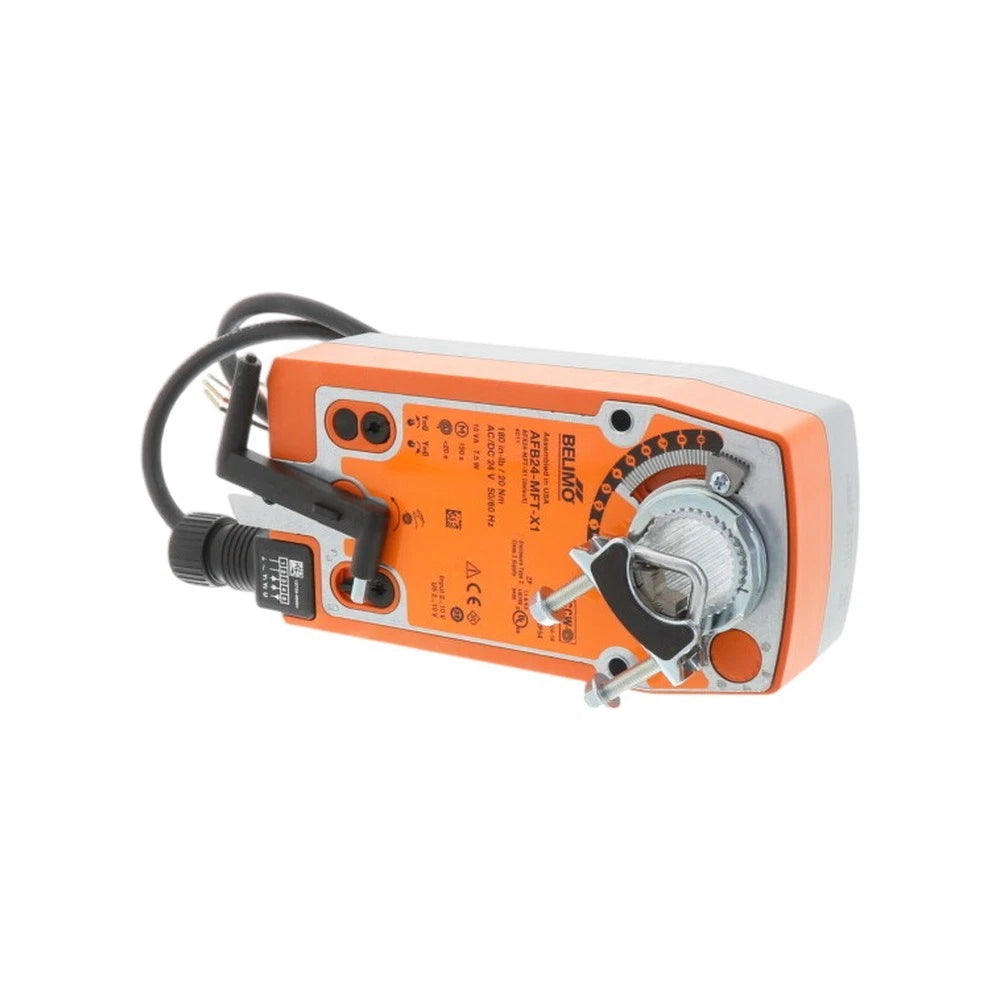

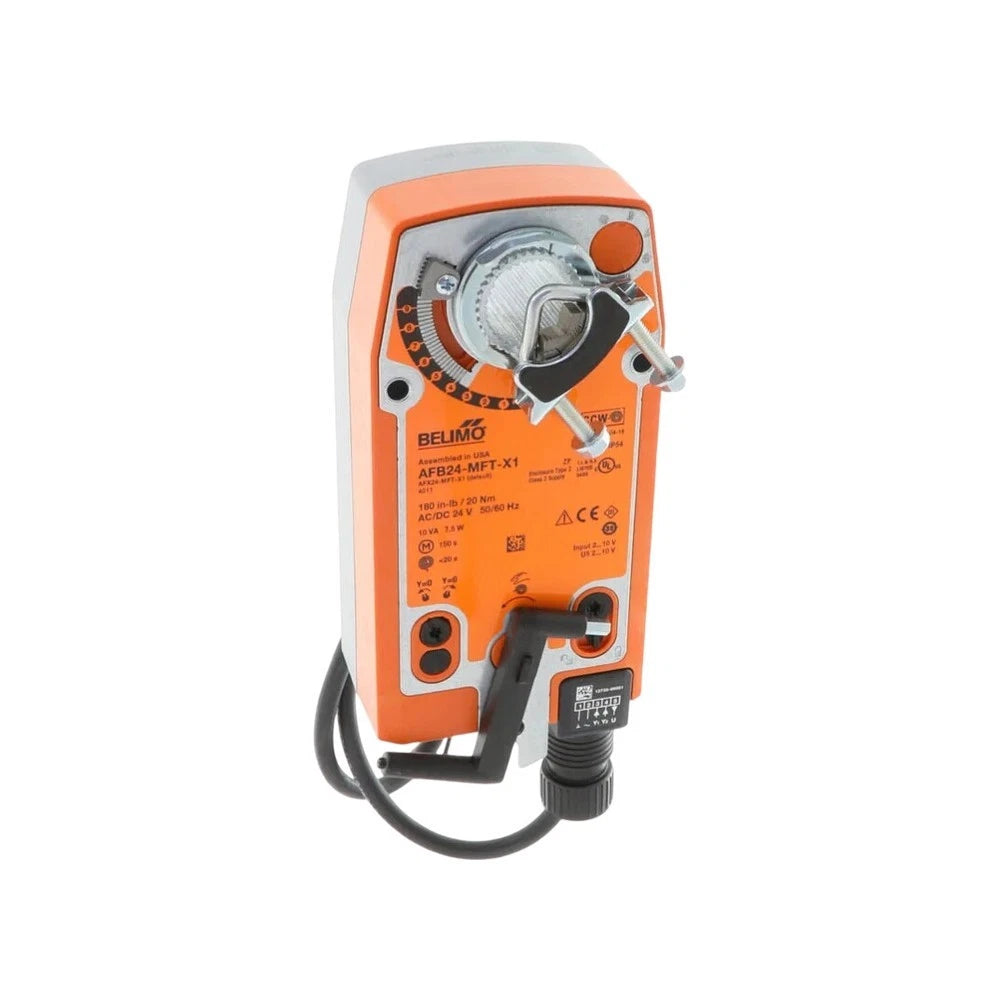

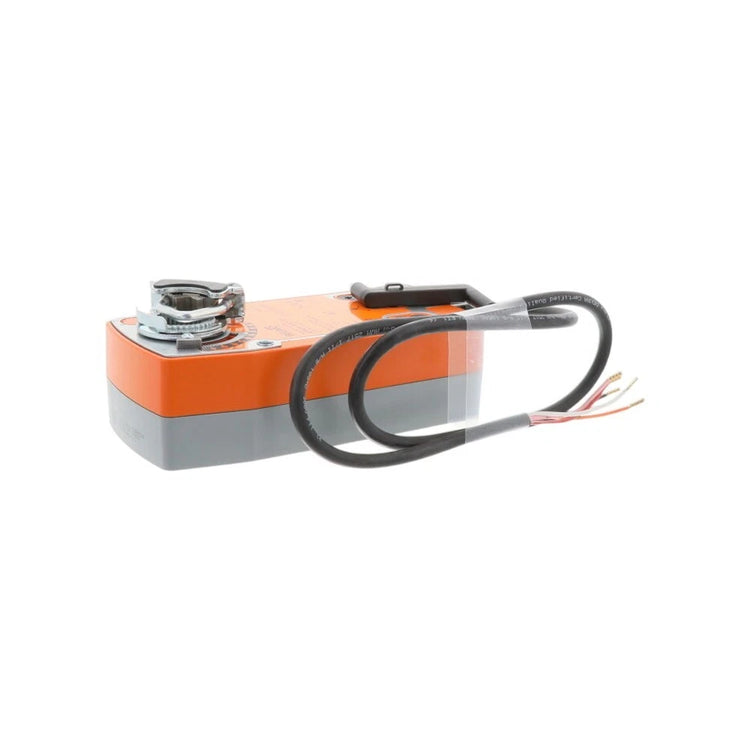

Belimo AFB24-MFT-X1 Programmable Spring Return Valve Actuator With 24 VAC/DC Power and Position Feedback
- Regular price
- $747.00
- Sale price
- $747.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AFB24-MFT-X1
Description
The Belimo AFB24-MFT-X1 is a programmable electric valve actuator for modulating control in heating, ventilation, and air conditioning systems. It operates on 24 VAC/DC and combines adjustable positioning parameters with mechanical spring return to move compatible valves to their configured fail-safe position after power loss.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Controls |
| Part Number | AFB24-MFT-X1 |
| Subcategory | Electric Valve Actuators |
| Product Family | AFB; RetroFIT+ control valve actuator range |
| Control Technology | Programmable Multi-Function Technology |
| Power Supply | 24 VAC, 50/60 Hz, or 24 VDC |
| Supply Voltage Range | 19.2–28.8 VAC; 21.6–28.8 VDC |
| Power Consumption | 7.5 W running; 3 W holding |
| Transformer Sizing | 10 VA; Class 2 supply |
| Control Input | Standard 2–10 VDC; configurable voltage, pulse-width modulation, on/off, or floating-point modes |
| Current Signal Option | 4–20 mA with ZG-R01 500 Ω resistor and operating range set to 2–10 VDC |
| Position Feedback | Standard 2–10 VDC; maximum 0.5 mA |
| Rotation Angle | 95° maximum; mechanical end stop adjustable from 35° to 95° |
| Motor Running Time | Standard 150 seconds per 90°; programmable range 70–220 seconds |
| Fail-Safe Operation | Mechanical spring return in less than 20 seconds; direction reversible through mounting |
| Enclosure and Construction | NEMA 2; UL Enclosure Type 2; galvanized steel and plastic housing |
| Operating Environment | −22 to 122°F / −30 to 50°C; maximum 95% relative humidity, noncondensing |
| Weight | 5.10 lbs |
Information About AFB24-MFT-X1
The AFB24-MFT-X1 is part of Belimo’s AFB actuator family and is offered within its RetroFIT+ control valve actuator range. Its galvanized steel and plastic housing incorporates a mechanical position indicator and manual override. Multi-Function Technology allows control characteristics and motor running time to be configured for the connected application. Integration with existing equipment requires compatible valve mounting hardware and a controller signal matching the actuator’s programmed operating mode.
Key Features:
- Programmable control: Uses Multi-Function Technology to adapt operating parameters to application requirements.
- Spring return: Provides mechanical fail-safe movement when electrical power is interrupted.
- Low-voltage operation: Accepts nominal 24 VAC or 24 VDC power.
- Signal flexibility: Supports configurable voltage, pulse-width modulation, on/off, and floating-point control modes.
- Position feedback: Supplies a standard 2–10 VDC output for monitoring actuator position.
- Adjustable running time: Offers a programmable motor travel time range of 70–220 seconds.
- Manual override: Includes a hex crank for positioning during installation or servicing.
- Replacement reference: Listed as the replacement for AFX24-MFT-X1, subject to application compatibility.
The AFB24-MFT-X1 delivers the reliability and precision required for programmable valve positioning and fail-safe operation in building climate control systems.
