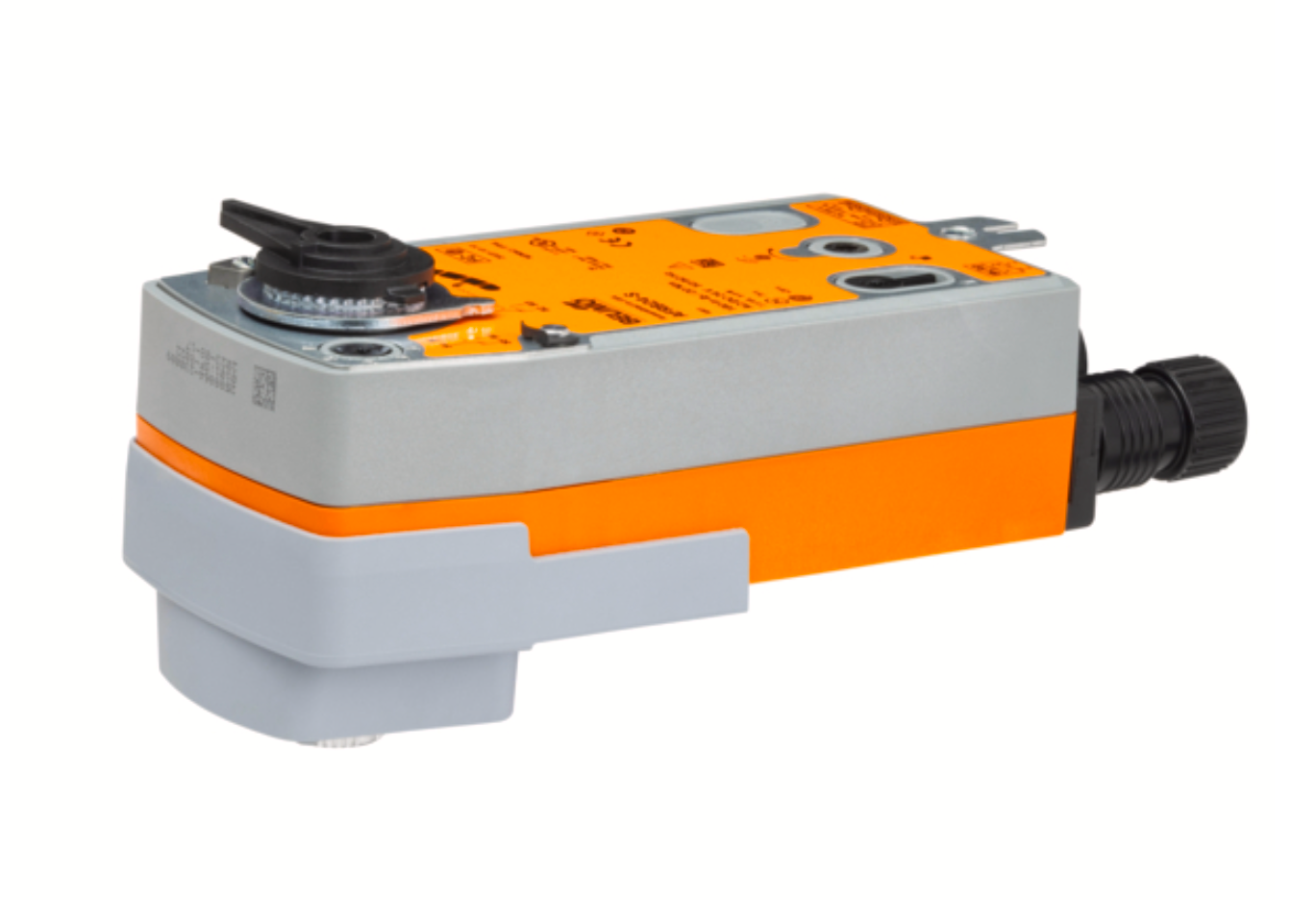

Belimo AFRB24-S 24V AC/DC Fail-Safe On/Off Damper Actuator
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AFRB24-S
Description
The Belimo AFRB24-S is a 24 V AC/DC fail-safe actuator designed for on/off control of air dampers in HVAC systems. It provides 90° motorized rotation with a 75-second running time and a fail-safe return in less than 20 seconds.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC Damper Actuators |
| Part Number | AFRB24-S |
| Subcategory | Fail-Safe Damper Actuators |
| Nominal Voltage | AC/DC 24 V |
| Nominal Voltage Frequency | 50/60 Hz |
| Nominal Voltage Range | AC 19.2...28.8 V / DC 21.6...28.8 V |
| Power Consumption (Running) | 5 W |
| Power Consumption (Holding) | 2.5 W |
| Power Consumption for Wire Sizing | 7.5 VA |
| Control Type | On/Off |
| Auxiliary Switches | 2x SPDT |
| Auxiliary Switch Rating | 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V |
| Angle of Rotation | 90° |
| Motor Running Time | 75 s / 90° |
| Fail-Safe Running Time | <20 s |
| Direction of Motion | Selectable by CW/CCW mounting |
| Fail-Safe Direction | Reversible with CW/CCW mounting |
| Manual Override | 5 mm hex crank (3/16" Allen), supplied |
| Degree of Protection | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Power Source | UL Class 2 Supply |
| Housing Material | Galvanized steel and plastic housing |
| Ambient Temperature | -22...122°F [-30...50°C] |
| Storage Temperature | -40...176°F [-40...80°C] |
| Ambient Humidity | Max. 95% RH, non-condensing |
| Maintenance | Maintenance-free |
| Sound Power Level, Motor | 45 dB(A) |
| Sound Power Level, Fail-Safe | 62 dB(A) |
| Agency Listings | cULus acc. to UL60730-1A/-2-14; CAN/CSA E60730-1:02 |
| Certifications | CE acc. to 2014/30/EU and 2014/35/EU |
| Quality Standard | ISO 9001 |
| UL 2043 Compliance | Suitable for use in air plenums per Section 300.22(C) of NEC and Section 602 of IMC |
| Weight | 5.7 lb |
Information About AFRB24-S
The AFRB24-S is part of Belimo’s fail-safe actuator range for HVAC air damper applications. Its galvanized steel and plastic housing provides a durable enclosure suited to mechanical building-system installations. The actuator supports selectable motor direction through clockwise or counterclockwise mounting and reversible fail-safe operation. Two SPDT auxiliary switches provide position-related switching functions for connected control or monitoring equipment.
Key Features:
- 24 V AC/DC Supply: Operates from a nominal 24 V AC or DC power source.
- On/Off Control: Provides two-position actuator control for damper applications.
- Fail-Safe Operation: Returns to the required safety position in less than 20 seconds.
- 90° Rotation: Provides the angular travel required for standard damper positioning.
- Motor Running Time: Completes 90° motorized rotation in 75 seconds.
- Auxiliary Switches: Includes two SPDT switches rated for switching and position indication functions.
- Manual Override: Includes a supplied 5 mm hex crank for manual adjustment during servicing.
- NEMA 2 Enclosure: Provides a protected housing for indoor HVAC installation environments.
The AFRB24-S delivers the reliability and precision required for fail-safe HVAC damper control and air-handling applications.
