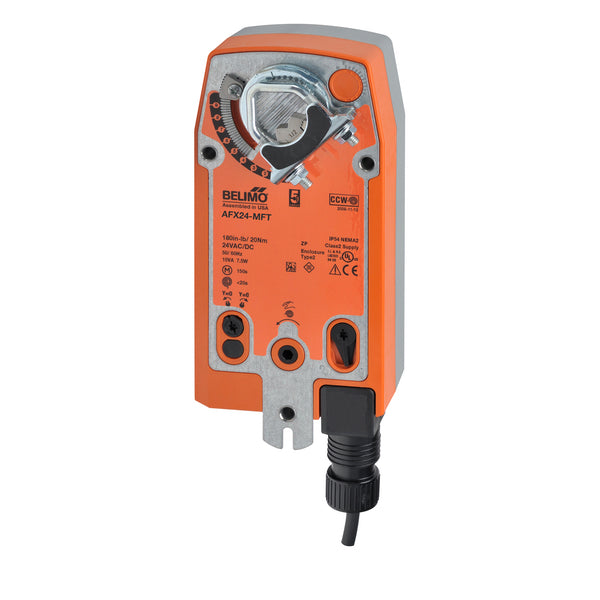

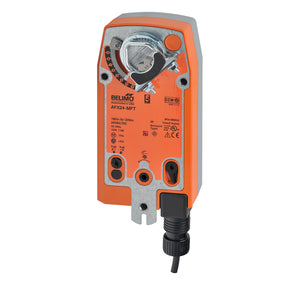

Belimo AFX24-MFT 20 Nm Programmable Spring-Return Damper Actuator
- Regular price
- $517.00
- Sale price
- $517.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AFX24-MFT
Description
Belimo AFX24-MFT is a configurable spring-return damper actuator designed for commercial HVAC applications requiring fail-safe control. It operates on 24 VAC/DC, provides 180 in-lb (20 Nm) of torque, and supports programmable MFT control with 2–10 VDC positioning and feedback.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Building Automation / HVAC Controls |
| Part Number | AFX24-MFT |
| Subcategory | Damper Actuators |
| Product Type | Configurable Spring-Return Damper Actuator |
| Power Supply | AC/DC 24 V |
| Control Type | MFT / Programmable |
| Control Signal | 2–10 VDC; 4–20 mA with 500 Ω resistor |
| Position Feedback | 2–10 VDC |
| Torque | 180 in-lb (20 Nm) |
| Angle of Rotation | 95° |
| Motor Running Time | 150 s / 90° |
| Motor Running Time Range | 70–220 s |
| Protection Rating | IP54 / NEMA 2 |
| Ambient Temperature | -30°C to +50°C |
| Manual Override | 5 mm hex crank |
| Weight | 4.1 lb |
Information About AFX24-MFT
The AFX24-MFT is part of Belimo’s AFX series of fail-safe damper actuators and is intended for direct control of HVAC dampers. Its multifunction technology allows the control mode and operating parameters to be configured for different building automation requirements. The actuator provides selectable motor direction, reversible fail-safe direction, and a manually operated 5 mm hex override. Its 95° rotation range and adjustable motor running time provide flexibility when commissioning damper assemblies.
Key Features:
- Spring Return: Provides fail-safe damper positioning when operating power is interrupted.
- 20 Nm Torque: Delivers 180 in-lb of motor torque for compatible commercial HVAC dampers.
- MFT Programmable: Supports configurable control modes and operating parameters.
- 24 V Operation: Accepts 24 VAC or 24 VDC nominal power.
- Proportional Control: Supports a 2–10 V control signal with optional 4–20 mA operation.
- Position Feedback: Provides a 2–10 VDC feedback signal for damper position monitoring.
- Adjustable Rotation: Provides up to 95° rotation with an adjustable mechanical end stop.
- Manual Override: Includes a 5 mm hex crank for manual actuator positioning.
The AFX24-MFT delivers the reliability and precision required for fail-safe damper control and HVAC building automation applications.
