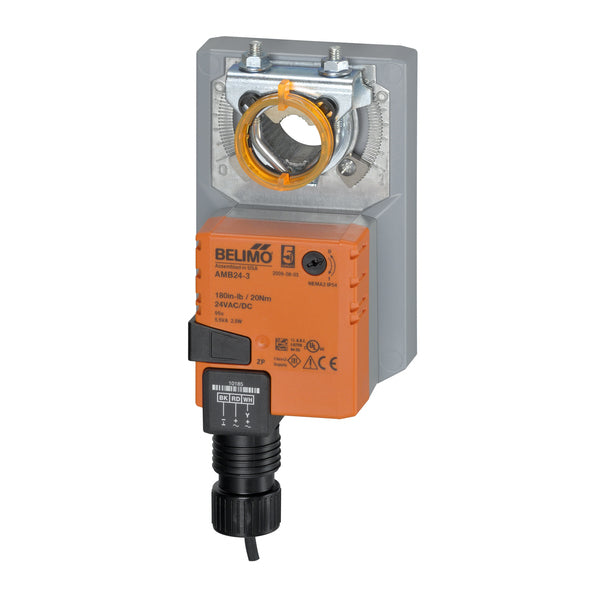

Belimo AMB24-3 24V Non-Spring-Return Damper Actuator, 180 in-lb, On/Off and Floating-Point Control
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AMB24-3
Description
The Belimo AMB24-3 is a non-spring-return rotary damper actuator for on/off and floating-point control in commercial HVAC systems. Powered by 24 VAC/VDC, it delivers 180 in-lb of torque and completes 90° of travel in 95 seconds. Its direct-coupled mounting and adjustable rotation range support airflow regulation in ventilation and air handling equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | HVAC & Building Automation |
| Part Number | AMB24-3 |
| Subcategory | Damper Actuators |
| Series / Actuator Type | AMB Series; rotary; non-spring return; non-fail-safe |
| Control Type | On/Off and floating-point, three-point control |
| Nominal Supply Voltage | 24 VAC/VDC |
| Supply Frequency / Voltage Range | 50/60 Hz with AC power; 19.2–28.8 VAC/VDC |
| Power Consumption / Supply Sizing | 2.5 W running; 0.5 W holding; 5.5 VA supply sizing |
| Rated Torque | 180 in-lb |
| Angle of Rotation | Maximum 95°; adjustable mechanical end stop |
| Motor Running Time | 95 seconds per 90°; constant within rated load |
| Direction of Rotation | Selectable with 0/1 switch |
| Manual Override / Position Indication | External gear-release push button; mechanical position indicator |
| Mounting | Direct coupled; universal clamp for compatible shafts up to 1.05 inches in diameter |
| Electrical Connection | Approximately 3.3 ft, 18 AWG plenum cable with 1/2-inch NPT conduit connector |
| Overload Protection | Electronic throughout 0–95° rotation |
| Enclosure / Ambient Conditions | NEMA 2; UL Enclosure Type 2; −22–122°F; maximum 95% RH, non-condensing |
| Weight | 2.4 lb |
Information About AMB24-3
The AMB24-3 is part of Belimo’s AMB Series of electric damper actuators for applications requiring powered positioning without automatic spring return. A sensorless brushless DC motor and electronic rotation monitoring protect the drive against overload throughout its operating travel. Its universal clamp mounts directly onto compatible damper shafts up to 1.05 inches in diameter, while accessory brackets accommodate installations requiring linkage. A manual gear-release button, direction-selection switch, and mechanical position indicator assist with installation and adjustment.
Key Features:
- High Torque Output: Provides 180 in-lb for dampers selected according to the damper manufacturer’s torque requirements.
- Dual Control Modes: Supports on/off operation and floating-point, three-point positioning.
- AC/DC Power Compatibility: Operates from either 24 VAC or 24 VDC supplies.
- Direct Shaft Mounting: Uses a universal clamp for compatible damper shafts up to 1.05 inches in diameter.
- Selectable Rotation Direction: Includes a 0/1 switch to match actuator movement to the installation.
- Adjustable Angular Travel: Provides up to 95° of rotation with a mechanical end stop.
- Consistent Running Time: Maintains 95-second travel per 90° within its rated operating load.
- Manual Gear Release: Allows manual damper positioning through an external push button.
- Electronic Overload Protection: Monitors actuator rotation and protects the drive during stalled conditions.
- Visual Position Indication: Provides a mechanical indicator for checking damper position locally.
- Reduced Holding Consumption: Uses 0.5 W while maintaining position.
The AMB24-3 delivers the reliability and precision required for on/off and floating-point airflow control in commercial HVAC installations.
