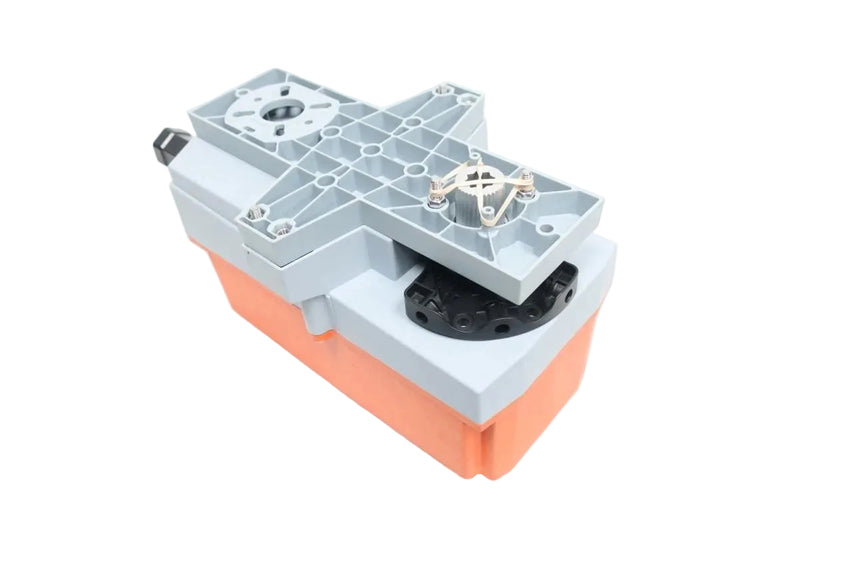

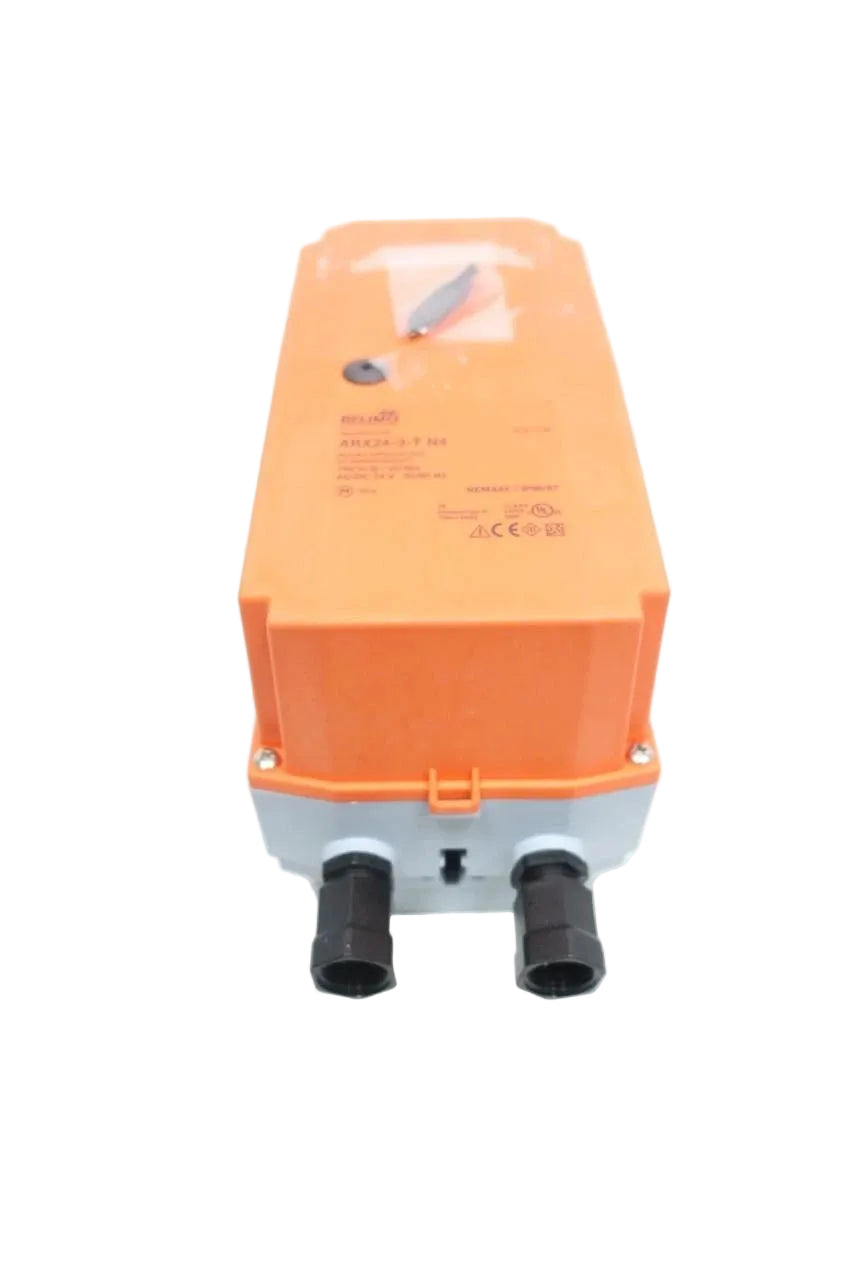

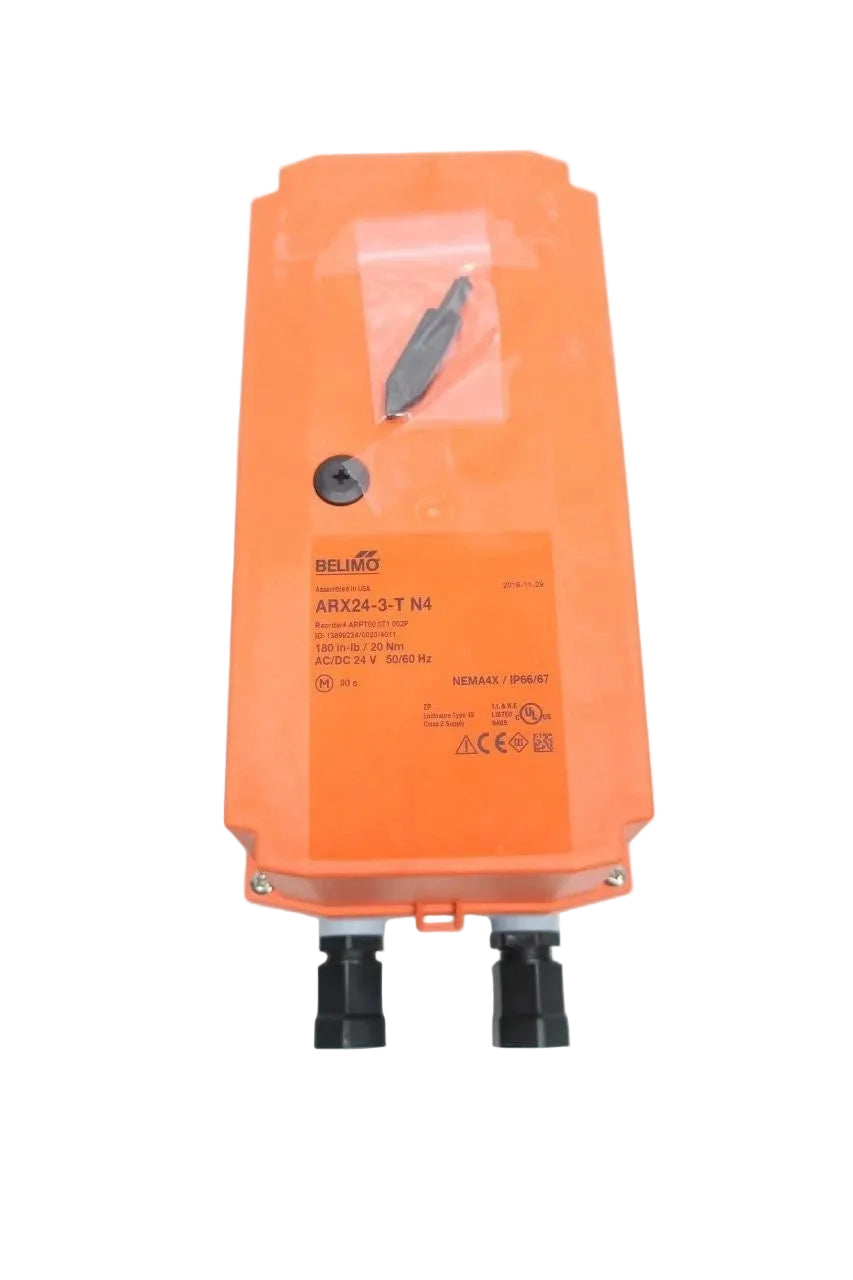

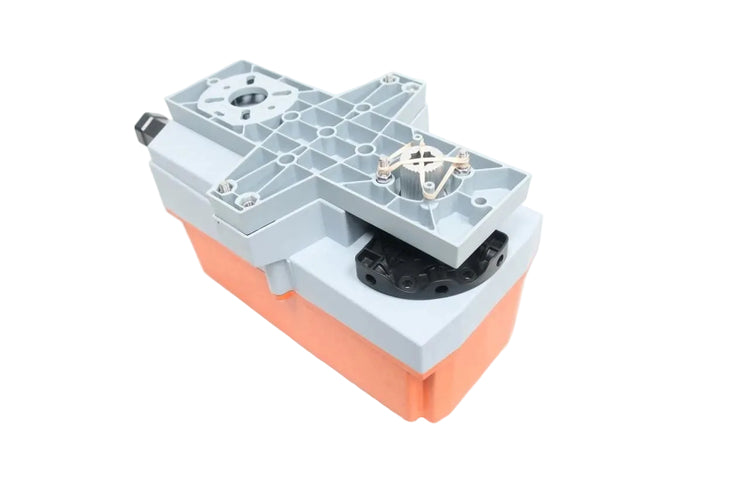

ARX24-3-T N4 | Belimo Non Spring Return Valve Actuator 24V On Off Floating Point NEMA 4X
- Regular price
- $624.00
- Sale price
- $624.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ARX24-3-T N4
Description
The Belimo ARX24-3-T N4 is a non spring return valve actuator designed for reliable on/off and floating point control in hydronic HVAC systems. It operates on AC/DC 24 V power and features a rugged NEMA 4X enclosure with terminal connections for use in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | ARX24-3-T N4 |
| Subcategory | Valve Actuators |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Voltage Range | AC 19.2…28.8 V / DC 21.6…28.8 V |
| Power Consumption (Operation) | 2.5 W |
| Power Consumption (Rest) | 0.5 W |
| Transformer Sizing | 5.5 VA |
| Control Type | On/Off, Floating Point |
| Angle of Rotation | 90°, adjustable |
| Running Time (Motor) | 90 or 150 s / 90° |
| Electrical Connection | Terminal blocks |
| Manual Override | Under cover |
| Degree of Protection | IP66/67, NEMA 4X |
| Noise Level | 45 dB(A) |
| Ambient Temperature | -30…50°C |
| Ambient Humidity | Up to 100% RH |
| Weight | 2.0 lb (0.91 kg) |
Information About ARX24-3-T N4
The ARX24-3-T N4 is part of Belimo’s ARX series of valve actuators designed for dependable operation in harsh HVAC and hydronic environments. It supports simple and robust on/off and floating point control strategies commonly used for valve positioning in commercial systems. The actuator incorporates electronic overload protection throughout its rotation range to safeguard internal components and ensure long service life. A sealed NEMA 4X enclosure, terminal wiring, and optional integrated heating capability allow installation in indoor or outdoor locations exposed to moisture and temperature extremes.
Key Features
- Non Spring Return Operation: Provides powered valve positioning without fail-safe spring action for applications where return on power loss is not required.
- On Off And Floating Point Control: Supports straightforward and reliable control methods widely used in hydronic valve applications.
- Rugged NEMA 4X Enclosure: IP66/67 rated housing protects against dust, water ingress, and corrosion in demanding installations.
- Electronic Overload Protection: Safeguards the actuator throughout the full rotation range to prevent damage from obstruction or excessive load.
- Terminal Block Wiring: Simplifies field installation and supports secure electrical connections in control panels or field-mounted setups.
- Adjustable Mechanical Stops: Allows precise limitation of rotation angle to match valve requirements.
- Manual Override Access: Enables local valve positioning during commissioning or maintenance without external power.
The ARX24-3-T N4 delivers the reliability and precision required for robust non spring return valve control in harsh HVAC and hydronic system environments.
