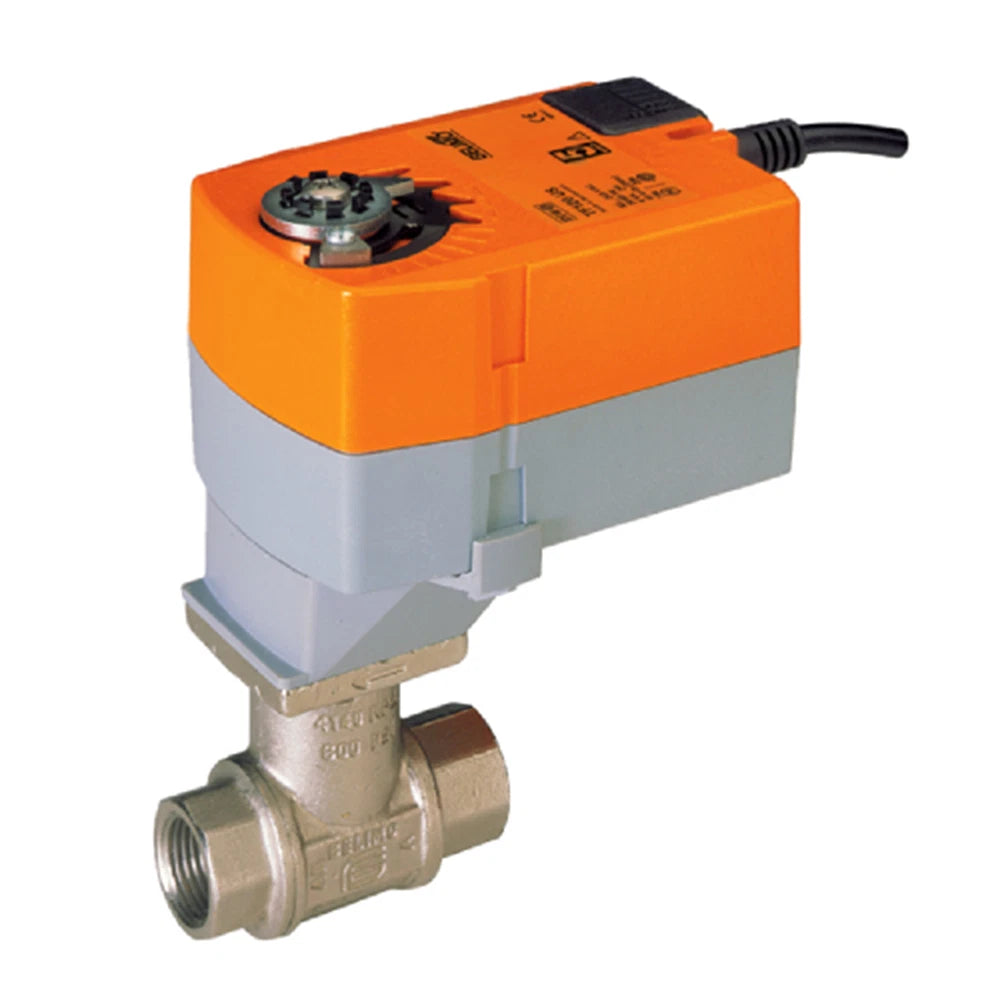

Belimo B212B+TFRB24-SR 0.5-Inch 2-Way Spring Return Control Valve
- Regular price
- $415.00
- Sale price
- $415.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B212B+TFRB24-SR
Description
The Belimo B212B+TFRB24-SR is a 2-way, 0.5-inch characterized control valve assembly designed for modulating hydronic HVAC applications. It combines a chrome-plated brass valve with a 24 VAC/DC spring-return actuator, providing DC 2–10 V control and a Cv rating of 3.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Valves |
| Part Number | B212B+TFRB24-SR |
| Subcategory | Ball Valve |
| Valve Pattern | 2-way |
| Valve Size | 0.5" [15] |
| Cv | 3 |
| Fluid | Chilled or hot water, up to 60% glycol |
| Body Pressure Rating | 600 psi |
| Flow Characteristic | Equal percentage |
| End Fitting | Internal thread |
| Trim | Chrome plated brass |
| Actuator Type | Spring return |
| Voltage AC/DC | AC/DC 24 V |
| Power Consumption (Running) | 2.5 W |
| Power Consumption (Holding) | 1 W |
| Power Consumption for Wire Sizing | 4 VA |
| Control Type | DC 2...10 V |
| Degree of Protection NEMA | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Weight | 2.00 lbs |
Information About B325+LRB24-SR
The B212B+TFRB24-SR combines a Belimo B212B characterized control valve with a TFRB24-SR spring-return actuator for variable-flow heating and cooling systems. The valve features an equal-percentage flow characteristic, internal-thread connections, and a 600 psi body pressure rating for compatible hydronic applications. Its chrome-plated brass trim is designed for use with chilled or hot water containing up to 60% glycol. The actuator provides modulating 2–10 VDC control, 24 V AC/DC operation, and spring-return functionality for fail-safe positioning.
Key Features:
- 2-Way Valve: Provides two-port flow control for hydronic heating and cooling systems.
- 0.5-Inch Size: Uses a 0.5-inch [15] valve body with internal threaded connections.
- Cv 3: Provides a flow coefficient of 3 for the specified valve configuration.
- Equal-Percentage Flow: Provides an equal-percentage flow characteristic for modulating control.
- Chrome-Plated Brass Trim: Uses chrome-plated brass valve trim for compatible hydronic applications.
- Spring Return: Provides automatic actuator return when operating power is removed.
- Modulating Control: Accepts a DC 2–10 V control signal for proportional valve positioning.
- 24 V Operation: Supports AC/DC 24 V power with 2.5 W running consumption.
The B212B+TFRB24-SR delivers the reliability and precision required for modulating hydronic flow control and fail-safe HVAC valve applications.
