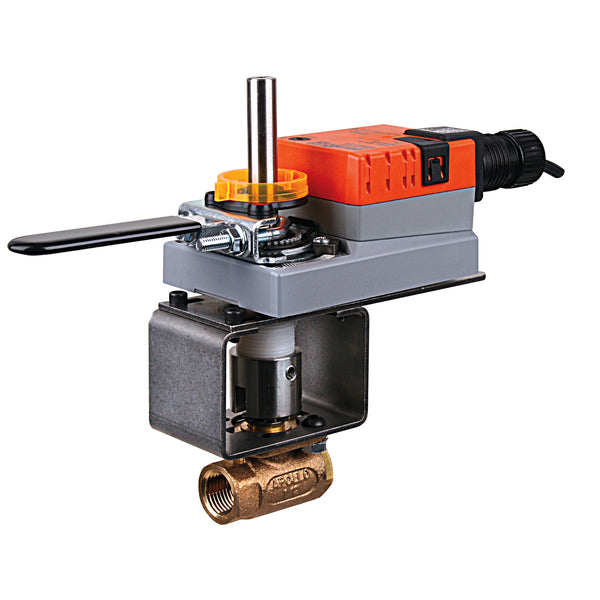

B224VS+NMB24-3-X1 | Belimo 2 Way Ball Valve 1 Inch Cv 43 24VACDC Floating Control
- Regular price
- $1,200.00
- Sale price
- $1,200.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B224VS+NMB24-3-X1
Description
The Belimo B224VS+NMB24-3-X1 is a factory-assembled 2-way ball valve with a non-spring return actuator designed for reliable floating control in HVAC hydronic systems. Operating on 24 VAC/DC power, it provides accurate flow regulation with high Cv capacity for larger piping applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | B224VS+NMB24-3-X1 |
| Subcategory | Ball Valves |
| Valve Type | Ball Valve (VS) |
| Valve Size | 1 in (DN 25) |
| Flow Pattern | 2-way |
| Flow Coefficient | Cv 43 |
| Flow Characteristic | Modified equal percentage |
| Controllable Flow Range | 90° rotation |
| Leakage Rate | ANSI Class VI |
| Body Pressure Rating | 600 psig WOG |
| Close-Off Pressure | 600 psi |
| Max Differential Pressure (Steam) | 35 psi |
| Fluid Compatibility | Chilled water, hot water, up to 60% glycol, steam |
| Fluid Temperature Range (Water) | -22…280°F (-30…138°C) |
| Pipe Connection | NPT female |
| Valve Body Material | Bronze B584-C84400 |
| Ball Material | 316 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Seat Material | RPTFE |
| Actuator Type | Non spring return |
| Control Type | Floating point |
| Nominal Voltage | AC/DC 24 V |
| Power Consumption (Operation) | 2 W |
| Power Consumption (Rest) | 0.2 W |
| Transformer Sizing | 4 VA |
| Angle of Rotation | Max. 95°, adjustable |
| Running Time | 95 s / 90° |
| Protection Rating | IP54, NEMA 2 |
| Weight | 3.7 lb |
Information About B224VS+NMB24-3-X1
The B224VS+NMB24-3-X1 is part of Belimo’s VS series ball valve assemblies engineered for high-capacity flow control in commercial HVAC systems. The bronze valve body combined with stainless steel internal components provides durability, corrosion resistance, and stable performance under high pressure conditions. Factory-fitted with the NMB24 non-fail-safe actuator, the assembly supports floating point control for accurate open/close positioning without spring return action. This configuration is commonly used in hydronic heating and cooling circuits where proportional positioning and tight shutoff are required.
Key Features
- High Cv 43 Flow Capacity: Supports efficient flow control in 1-inch piping systems while maintaining predictable pressure drop characteristics.
- Integrated Valve and Actuator Assembly: Factory-mounted configuration ensures proper alignment, reduced installation time, and consistent operational performance.
- Non Spring Return Actuation: Designed for applications where continuous powered positioning is preferred over fail-safe spring return operation.
- Floating Point Control Logic: Enables precise incremental positioning using open/close control signals from building automation systems.
- ANSI Class VI Tight Shutoff: Provides minimal leakage to support accurate isolation and improved energy efficiency.
- Durable Valve Construction: Bronze body with stainless steel ball and stem, combined with PTFE-based seals, supports long service life.
- Manual Override Capability: External push button allows manual positioning during commissioning or maintenance activities.
The B224VS+NMB24-3-X1 delivers the reliability and precision required for controlled hydronic flow regulation in commercial HVAC heating and cooling applications.
