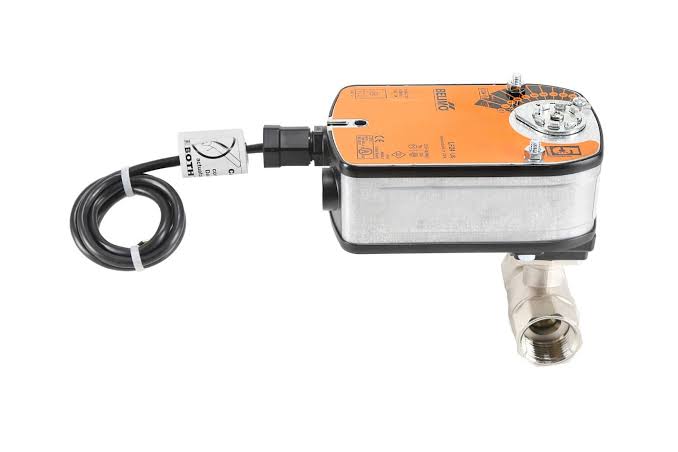

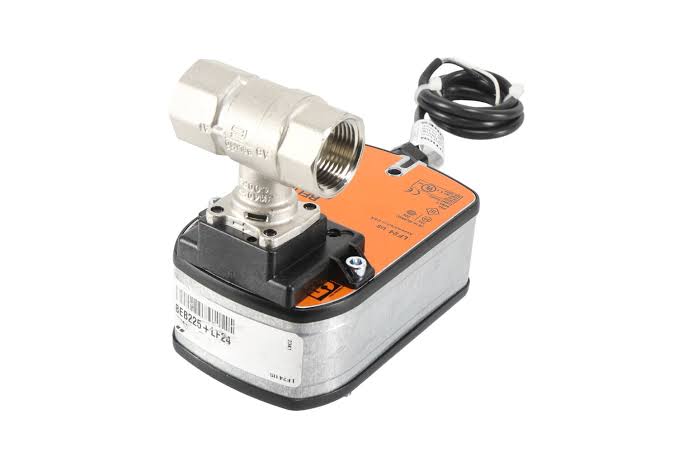

Belimo B225+LF24 US 1-Inch 2-Way Characterized Control Valve
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B225+LF24
Description
The Belimo B225+LF24 US is a 2-way, 1-inch characterized control valve assembly designed for hydronic HVAC heating and cooling applications. It combines a nickel-plated brass valve with stainless steel trim and a 24 V spring-return actuator, providing a Cv rating of 30, equal-percentage flow control, and on/off operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valve |
| Part Number | B225+LF24 US |
| Subcategory | 2-Way Characterized Control Valve |
| Valve Pattern | 2-way |
| Valve Size | 1" [25 mm] |
| Cv | 30 |
| Fluid | Chilled or hot water, up to 60% glycol |
| Body Pressure Rating | 600 psi |
| Close-Off Pressure | 200 psi |
| Flow Characteristic | Equal percentage |
| Controllable Flow Range | 75° |
| Leakage Rate | 0% for A–AB |
| End Fitting | Internal thread, NPT female |
| Valve Body Material | Nickel-plated brass |
| Trim | Stainless steel |
| Stem Seal | EPDM, lubricated |
| Seat | PTFE |
| Characterized Disc | TEFZEL® |
| Ball | Stainless steel |
| Actuator Type | Spring return / fail-safe |
| Voltage | AC/DC 24 V |
| Frequency | 50/60 Hz |
| Power Consumption (Running) | 5 W |
| Power Consumption (Holding) | 2.5 W |
| Transformer Sizing | 7 VA |
| Control Type | On/Off |
| Angle of Rotation | 90° |
| Running Time (Motor) | 75 s / 90° |
| Running Time (Fail-Safe) | <25 s at -20...50°C; <60 s at -30°C |
| Protection Category | IP54 |
| Degree of Protection | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Ambient Temperature | -22...122°F [-30...50°C] |
| Storage Temperature | -40...176°F [-40...80°C] |
| Ambient Humidity | Max. 95% RH, non-condensing |
| Servicing | Maintenance-free |
| Weight | 3.2 lbs |
Information About B225+LF24
The B225+LF24 US combines the Belimo B225 characterized control valve with an LF24 US fail-safe actuator for reliable HVAC water flow control. The valve features a 600 psi body pressure rating, internal female NPT connections, and a 75° controllable flow range with a 0% leakage rate for A–AB. Its characterized disc provides an equal-percentage flow characteristic and is designed for chilled or hot water containing up to 60% glycol. The actuator operates on AC/DC 24 V power and provides 90° rotation with a 75-second motor running time and spring-return fail-safe operation.
Key Features:
- 2-Way Valve: Provides two-port flow control for hydronic heating and cooling systems.
- 1-Inch Size: Features a 1-inch [25 mm] valve body with internal female NPT connections.
- Cv 30: Provides a flow coefficient of 30 for high-capacity hydronic applications.
- Equal-Percentage Flow: Supports stable and precise flow control across the controllable range.
- Stainless Steel Trim: Includes stainless steel stem and ball components for compatible water applications.
- 24 V Fail-Safe Actuator: Operates on AC/DC 24 V power and provides spring-return positioning.
- On/Off Control: Provides two-position actuator control for valve opening and closing.
- 600 psi Pressure Rating: Provides a 600 psi rated valve body pressure capacity.
The B225+LF24 US delivers the reliability and precision required for hydronic HVAC flow control, coil regulation, and fail-safe valve applications.
