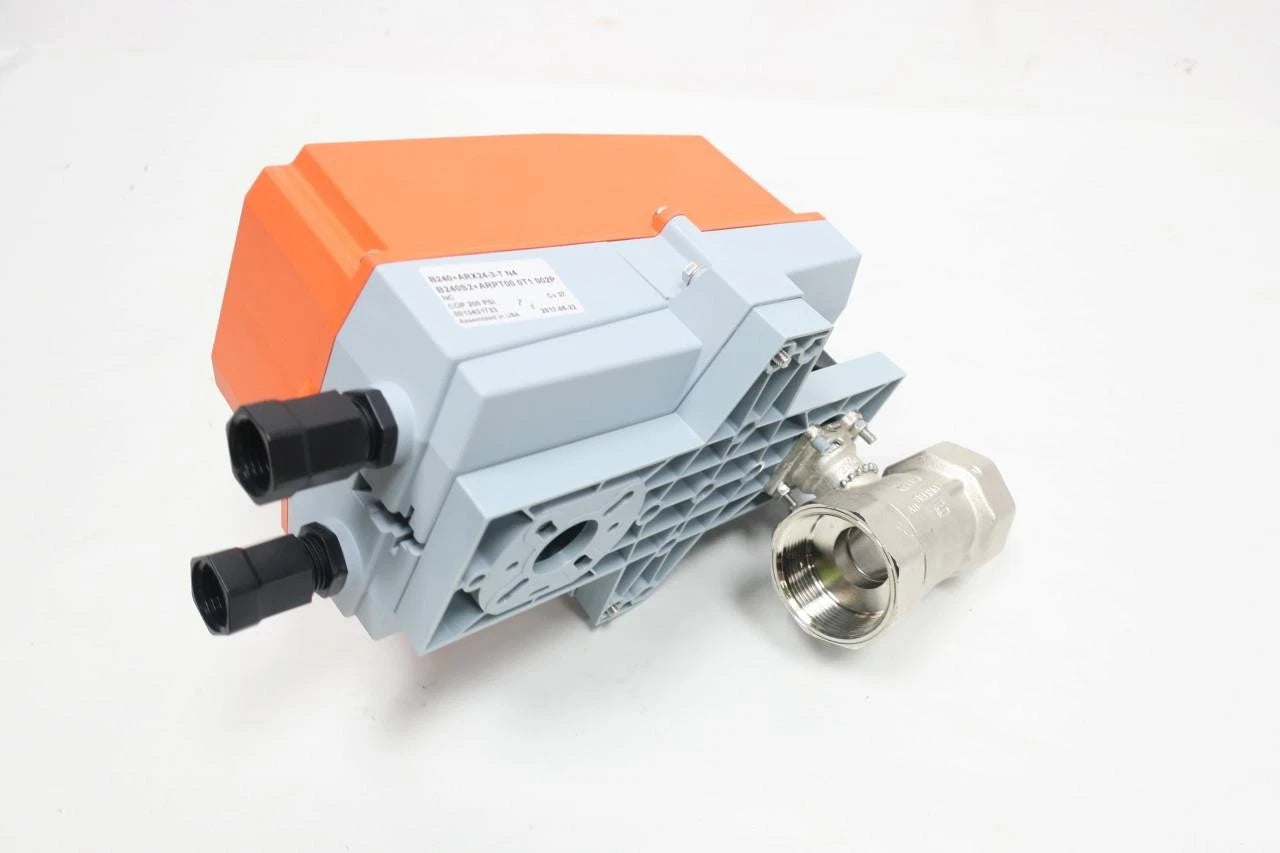

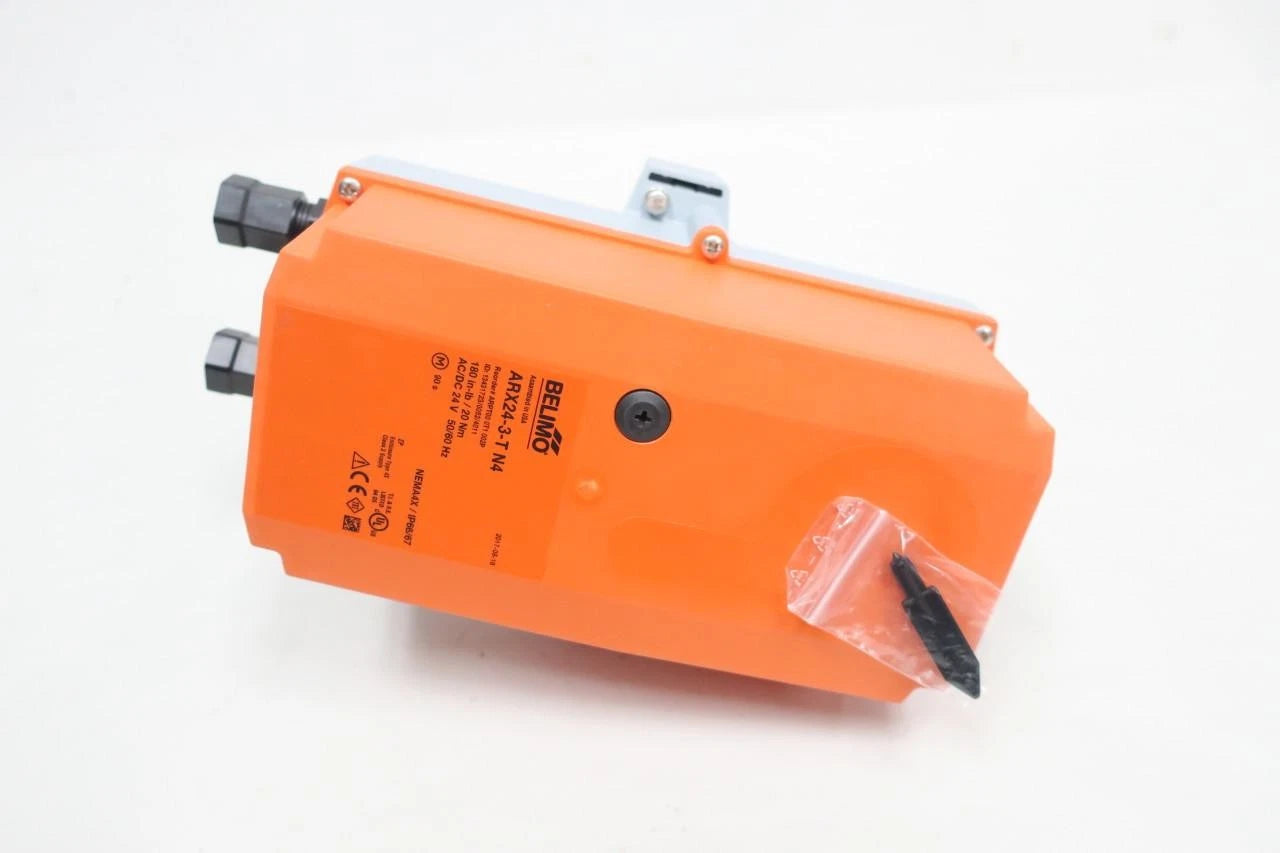

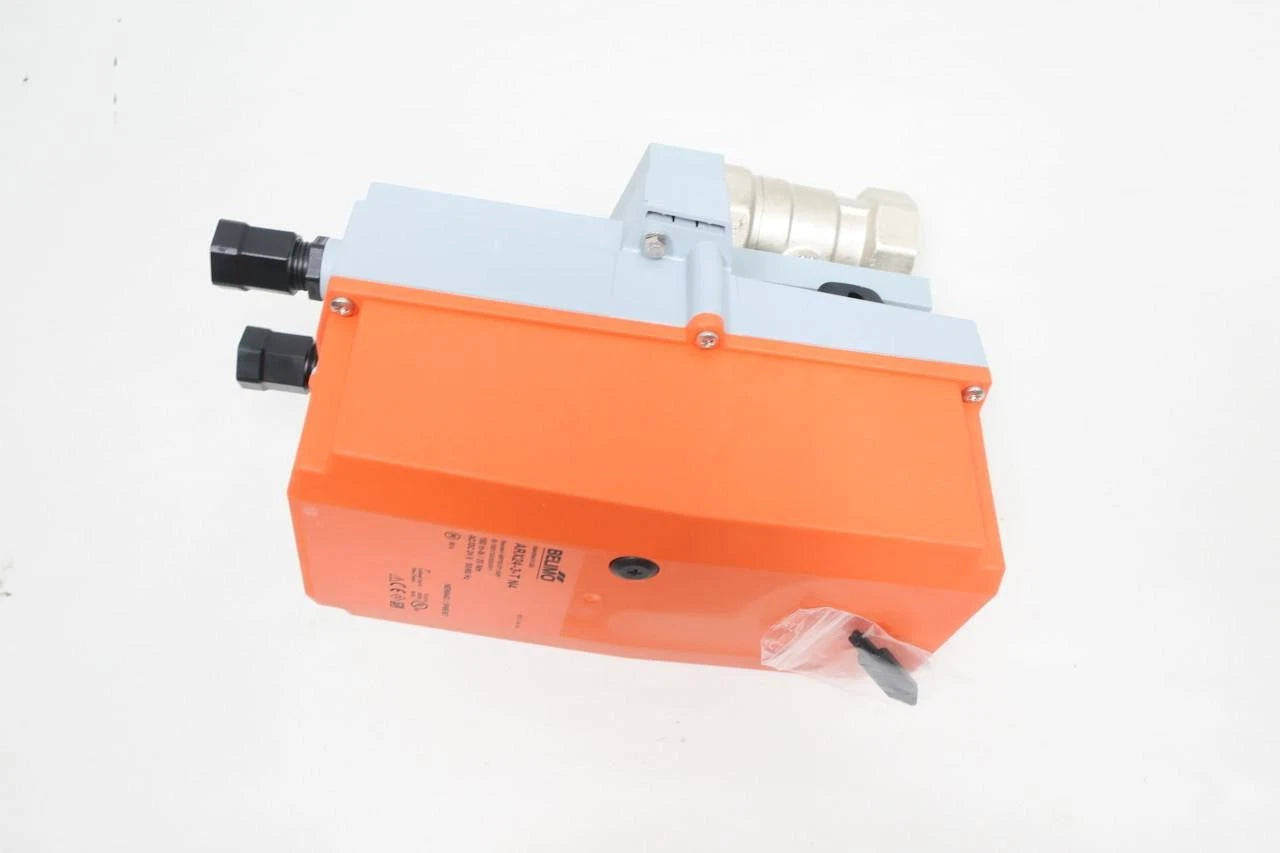

B240+ARX24-3-T N4 | Belimo Two Way Characterized Control Valve 1.5 Inch Cv 37 With NEMA 4X Actuator
- Regular price
- $744.00
- Sale price
- $744.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B240+ARX24-3-T N4
Description
The Belimo B240+ARX24-3-T N4 is a factory-assembled two-way characterized control valve designed for reliable hydronic flow control in HVAC systems. It combines a 1.5 inch valve body with a non fail-safe 24 V actuator featuring on/off and floating point control in a rugged NEMA 4X enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | B240+ARX24-3-T N4 |
| Subcategory | Characterized Control Valves |
| Valve Size | 1.5 in [40 mm] |
| Valve Type | 2-way |
| Cv Rating | 37 |
| Flow Characteristic | Equal percentage |
| Flow Pattern | 2-way |
| Controllable Flow Range | 75° |
| Leakage Rate | 0% (A–AB) |
| Fluid Type | Chilled or hot water, up to 60% glycol |
| Fluid Temperature Range | -18…120°C [0…250°F] |
| Body Pressure Rating | 400 psi |
| Close-Off Pressure | 200 psi |
| Pipe Connection | NPT female |
| Valve Body Material | Nickel-plated brass |
| Stem Material | Stainless steel |
| Seat Material | PTFE |
| Nominal Voltage | AC/DC 24 V |
| Control Type | On/Off, Floating Point |
| Power Consumption (Operation) | 2.5 W |
| Power Consumption (Rest) | 0.5 W |
| Transformer Sizing | 5.5 VA |
| Actuator Rotation | 90°, adjustable |
| Running Time (Motor) | 90 or 150 s / 90° |
| Degree of Protection | IP66/67, NEMA 4X |
| Ambient Temperature | -30…50°C |
| Weight | 3.9 lb |
Information About B240+ARX24-3-T N4
The B240+ARX24-3-T N4 is part of Belimo’s characterized control valve assemblies developed for precise and energy-efficient hydronic control. The valve incorporates an equal percentage flow characteristic and a TEFZEL® characterized disc to support stable control across varying load conditions. Its integrated ARX24-3-T N4 actuator provides non fail-safe operation with on/off and floating point control, supporting straightforward integration into building automation systems. Factory assembly ensures correct valve-to-actuator alignment, reduces installation effort, and supports long-term reliability in demanding indoor or outdoor environments.
Key Features
- Two Way Characterized Valve Design: Provides accurate hydronic flow control with an equal percentage characteristic for stable system performance.
- Non Fail-Safe Actuator Operation: Powered positioning without spring return supports applications where fail-safe action is not required.
- On Off And Floating Point Control: Enables simple and robust control strategies commonly used in hydronic HVAC systems.
- Rugged NEMA 4X Enclosure: IP66/67 rated actuator housing protects against moisture, dust, and corrosion in harsh installations.
- Zero Leakage Performance: Precision valve construction ensures tight shutoff and reliable flow isolation.
- Electronic Overload Protection: Protects actuator components throughout the full rotation range for extended service life.
- Manual Override Access: Allows local valve positioning during commissioning or maintenance without external power.
The B240+ARX24-3-T N4 delivers the reliability and precision required for dependable two-way hydronic flow control in demanding HVAC applications.
