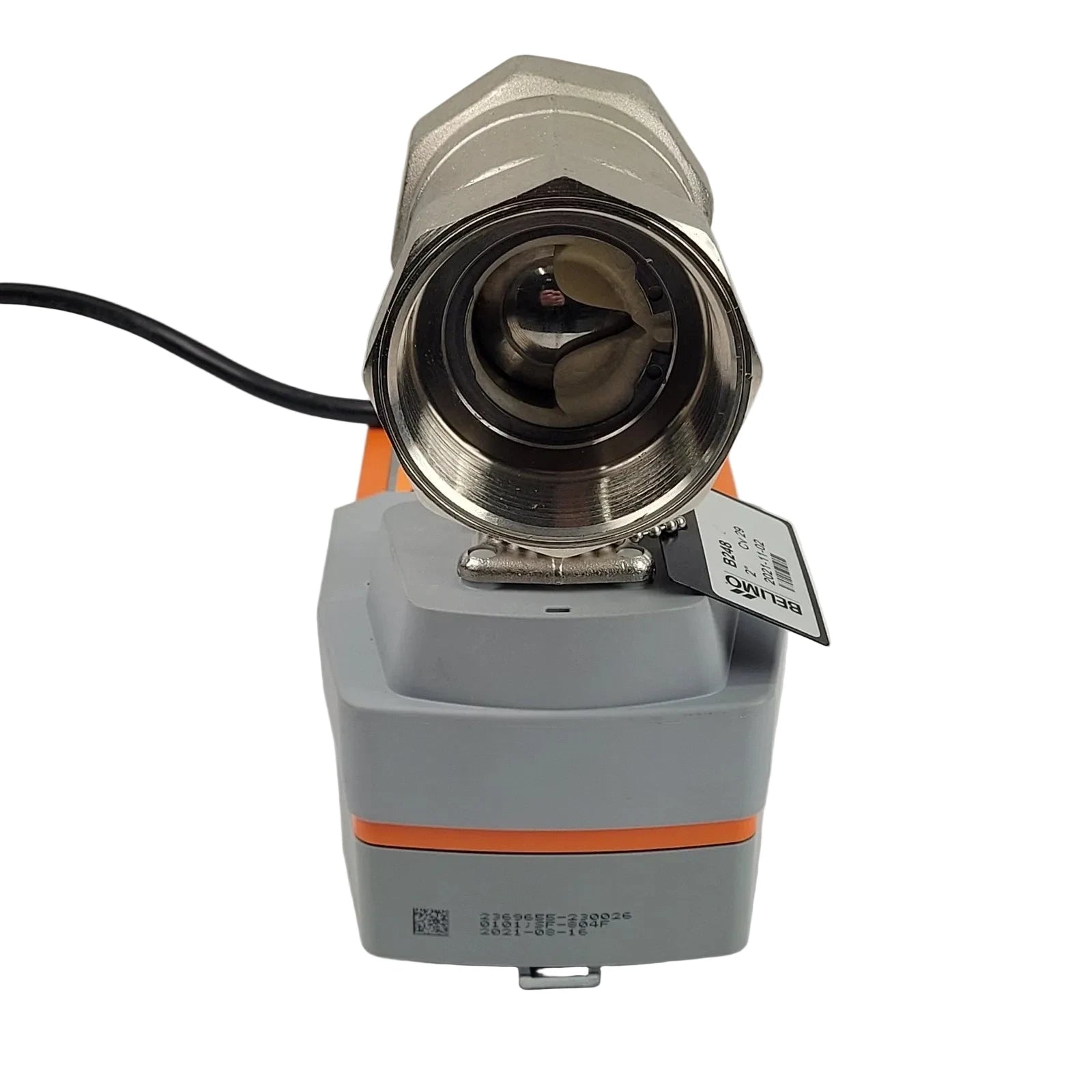

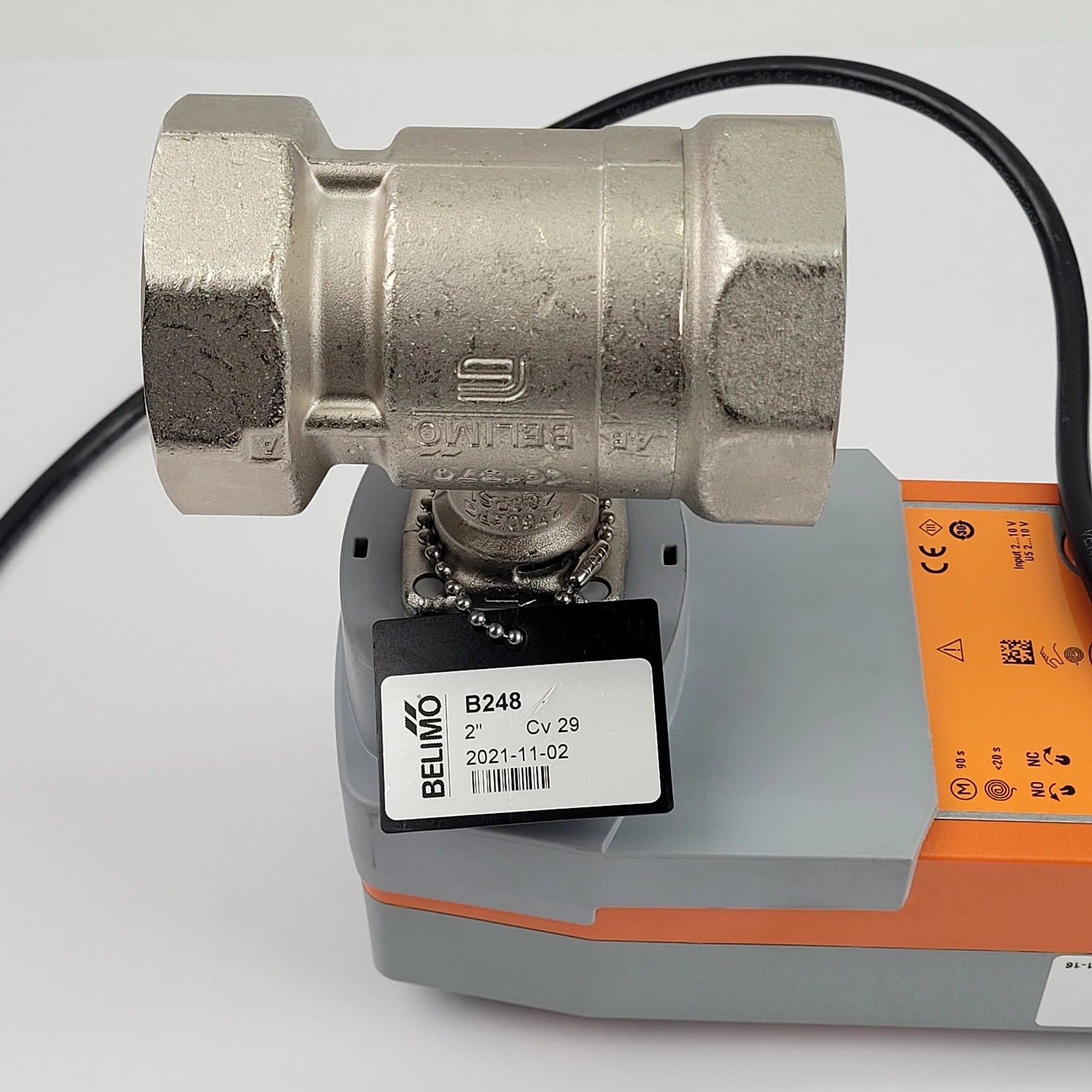

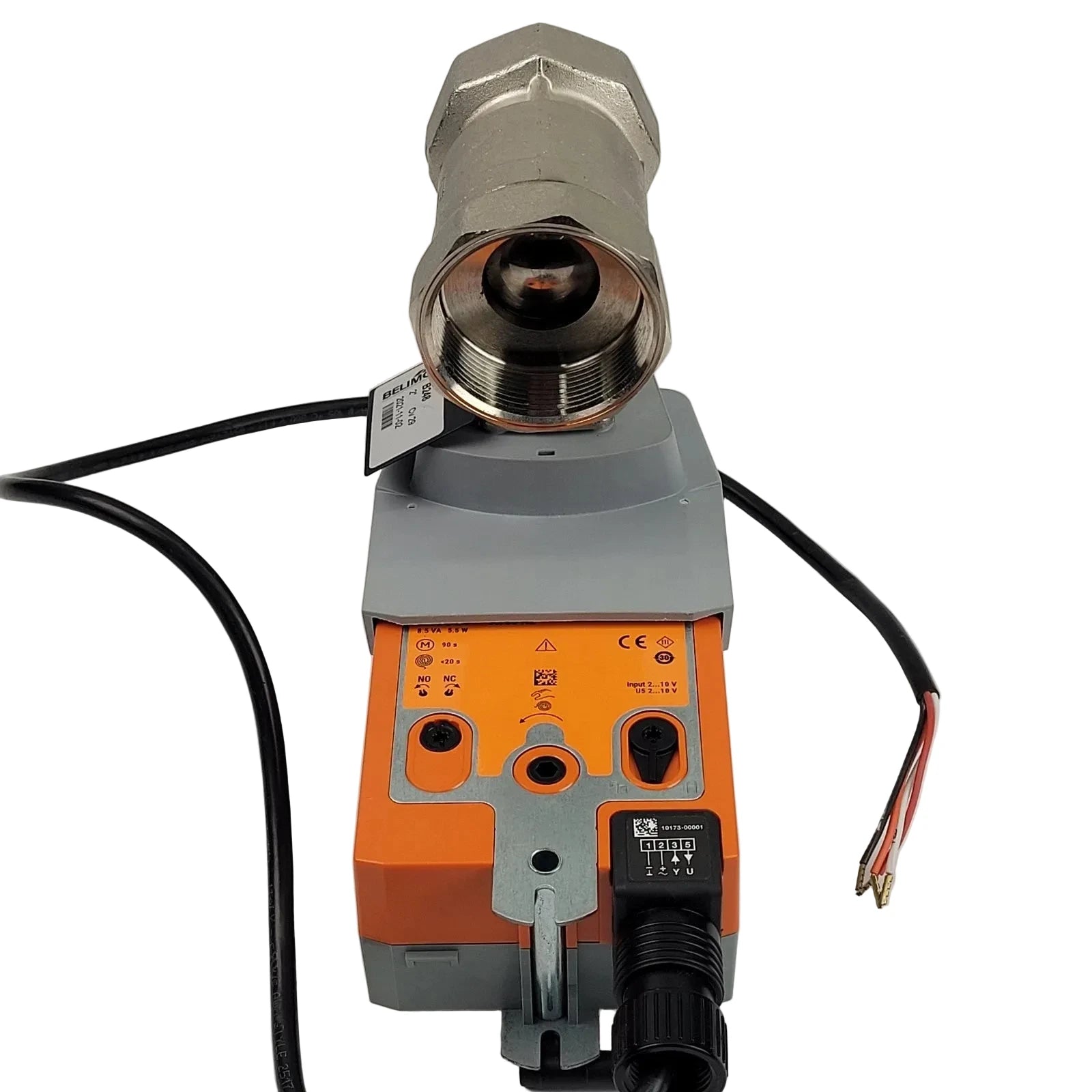

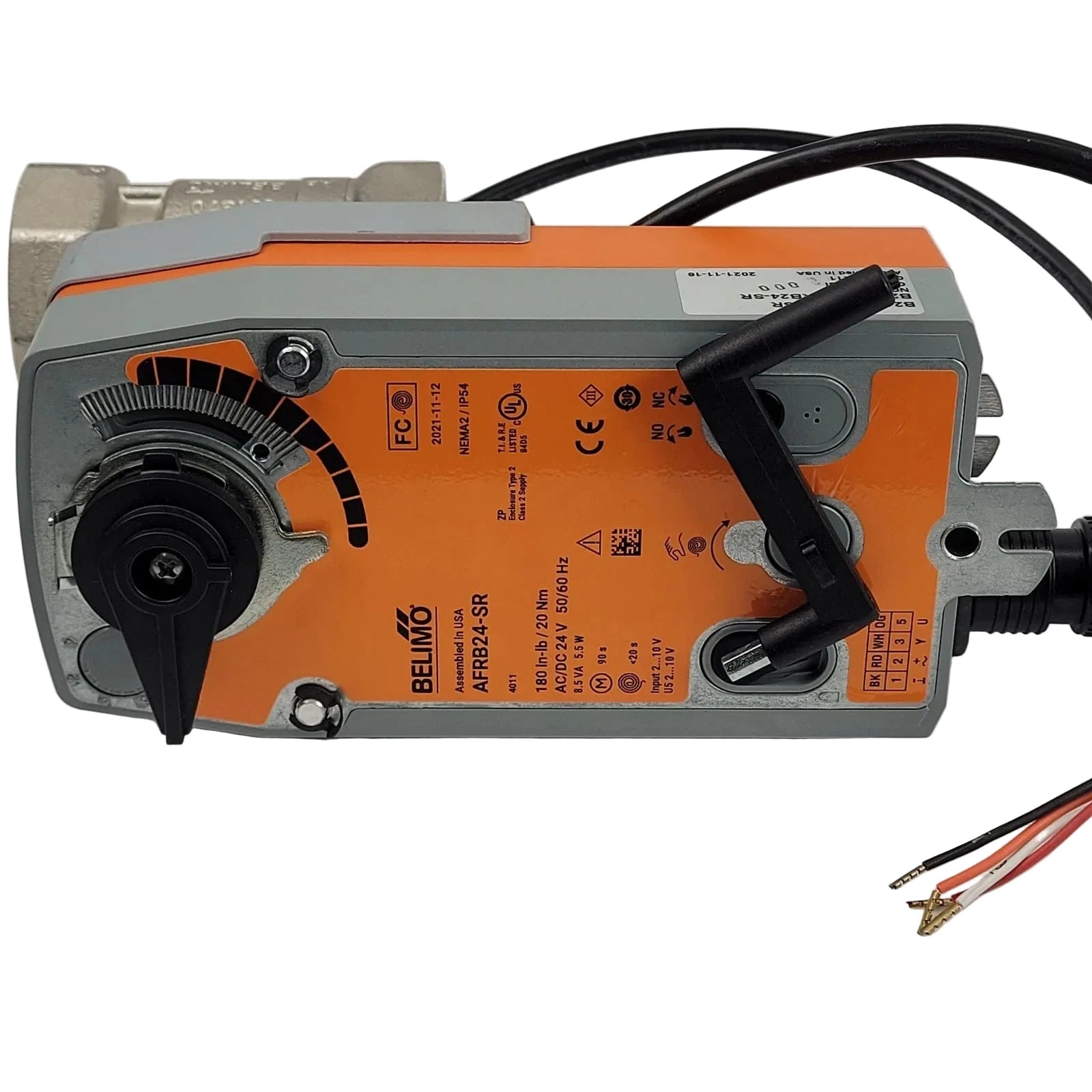

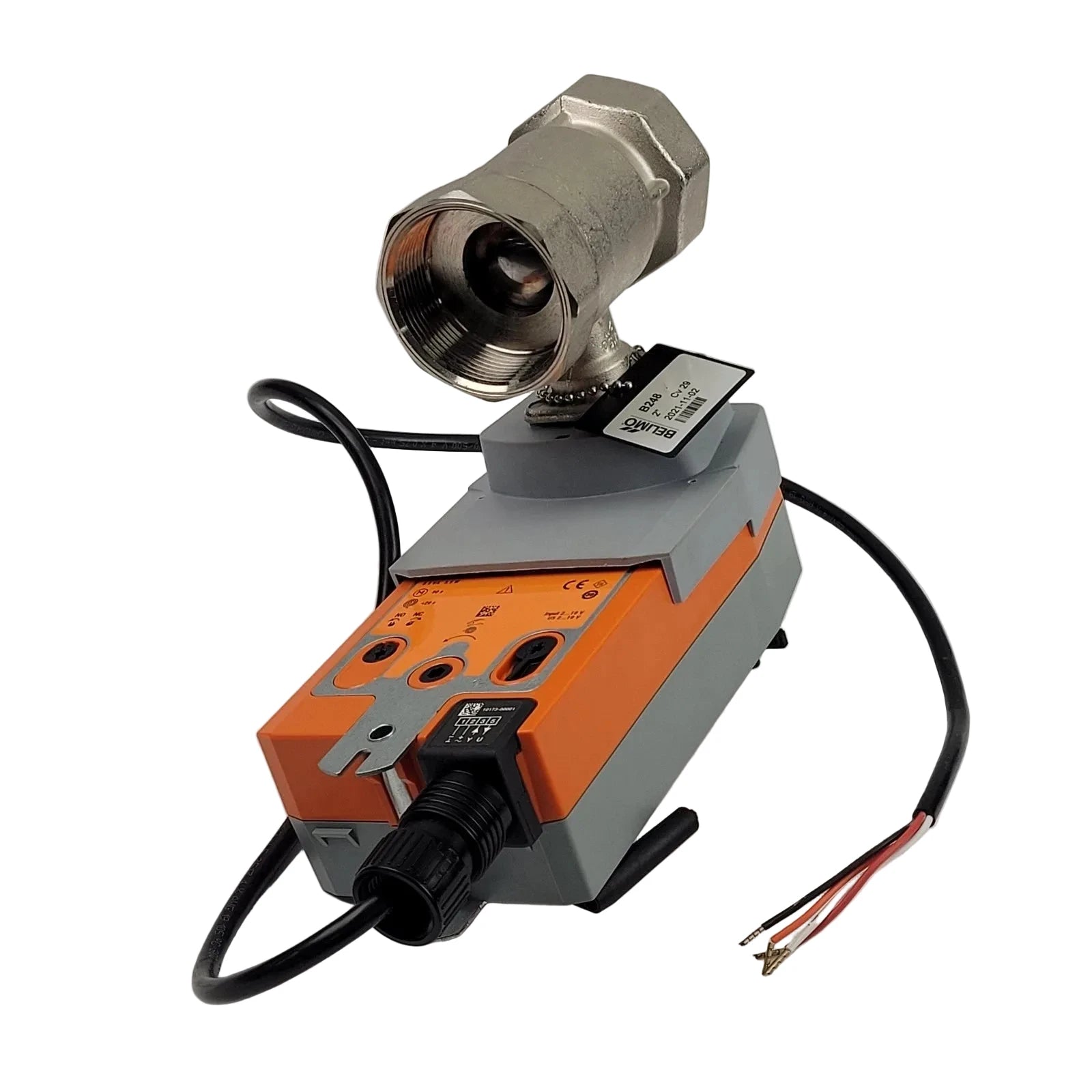

Belimo B248+AFRB24-SR 2" 2-Way Characterized Control Valve
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability

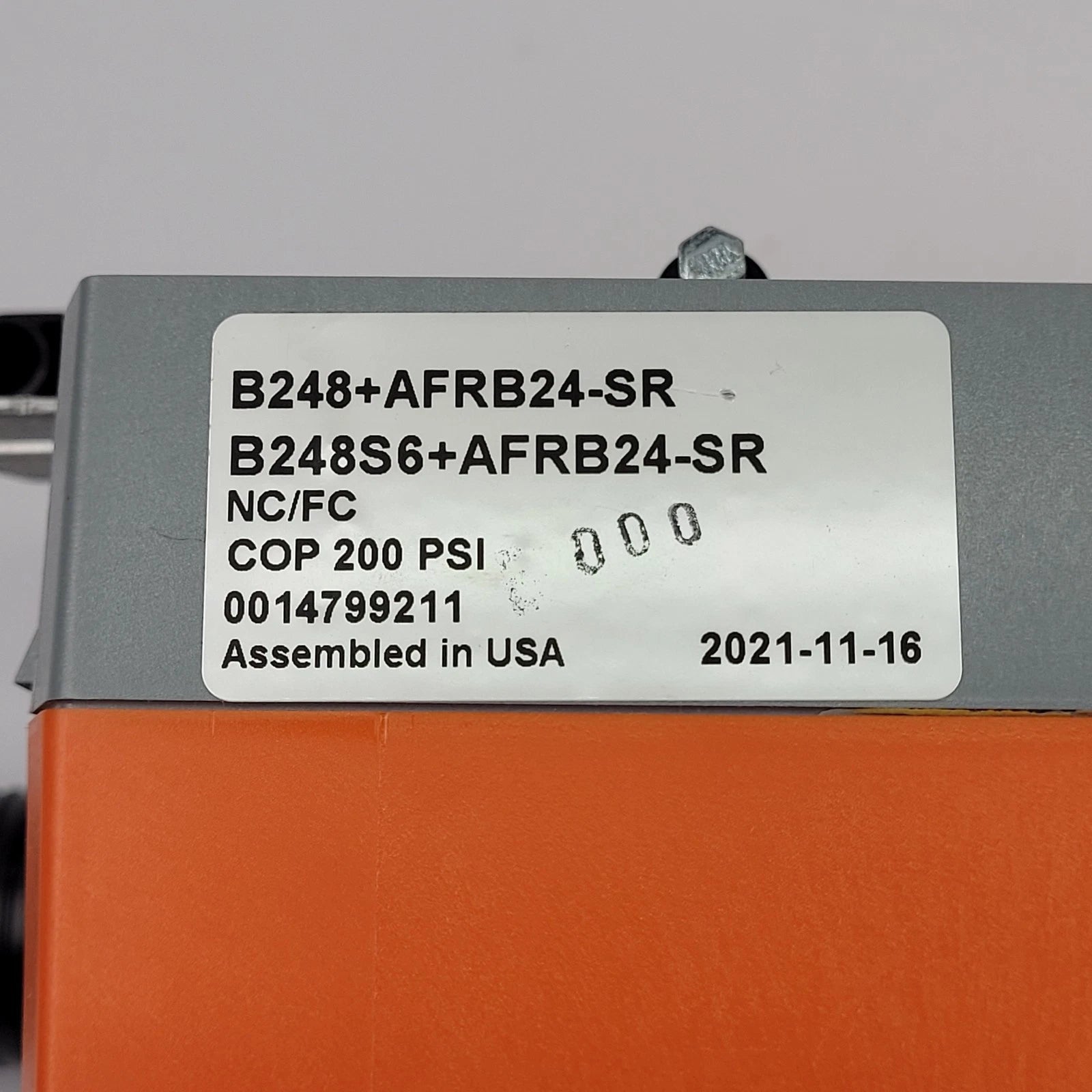

Product Description P/N: B248+AFRB24-SR
Description
The Belimo B248+AFRB24-SR is a 2-way, 2-inch characterized control valve with a spring-return modulating actuator for hydronic HVAC systems. It provides a 29 Cv flow coefficient and proportional 2–10 VDC control, with a 24 VAC/DC power supply and 180 in-lb actuator torque.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Valves |
| Part Number | B248+AFRB24-SR |
| Subcategory | Ball Valve |
| Valve Pattern | 2-way |
| Valve Size | 2 in [50 mm] |
| Flow Coefficient | 29 Cv |
| Flow Characteristic | Equal percentage |
| Valve Type | Characterized Control Valve (CCV) |
| End Fitting | Internal thread |
| Trim Material | Stainless steel |
| Fluid | Chilled or hot water, up to 60% glycol |
| Body Pressure Rating | 400 psi |
| Actuator Type | Electric, spring return, modulating |
| Mounting | Direct mount |
| Power Supply | AC/DC 24 V |
| Control Signal | 2–10 VDC / 4–20 mA |
| Torque | 180 in-lb |
| Running Time | <95 seconds |
| Spring Return Time | <20 seconds |
| Power Consumption (Running) | 5.5 W |
| Power Consumption (Holding) | 3 W |
| Power Consumption for Wire Sizing | 8.5 VA |
| NEMA Rating | NEMA 2 |
| Enclosure Type | UL Enclosure Type 2 |
| Weight | 8.00 lbs |
Information About B248+AFRB24-SR
The B248+AFRB24-SR combines a characterized control valve with a direct-mounted spring-return electric actuator for heating and cooling applications. Its stainless steel ball and stem are designed for chilled or hot water service with glycol concentrations up to 60%. The actuator supports 2–10 VDC or 4–20 mA proportional control and provides a spring-return function with a return time of less than 20 seconds. The assembly uses 2-inch internally threaded connections and is rated for a maximum body pressure of 400 psi.
Key Features:
- Valve Pattern: 2-way characterized control valve for hydronic flow regulation.
- Flow Coefficient: Provides a 29 Cv rating for the 2-inch valve assembly.
- Stainless Steel Trim: Uses a stainless steel ball and stem for the valve trim.
- Spring Return: Provides automatic spring-return positioning when actuator power is removed.
- Proportional Control: Supports 2–10 VDC and 4–20 mA control signals for modulating operation.
- Actuator Torque: Produces 180 in-lb of torque for valve positioning.
- Power Supply: Operates from AC/DC 24 V power.
- Fluid Compatibility: Suitable for chilled or hot water systems containing up to 60% glycol.
The B248+AFRB24-SR delivers the reliability and precision required for proportional hydronic flow control in HVAC heating and cooling systems.
