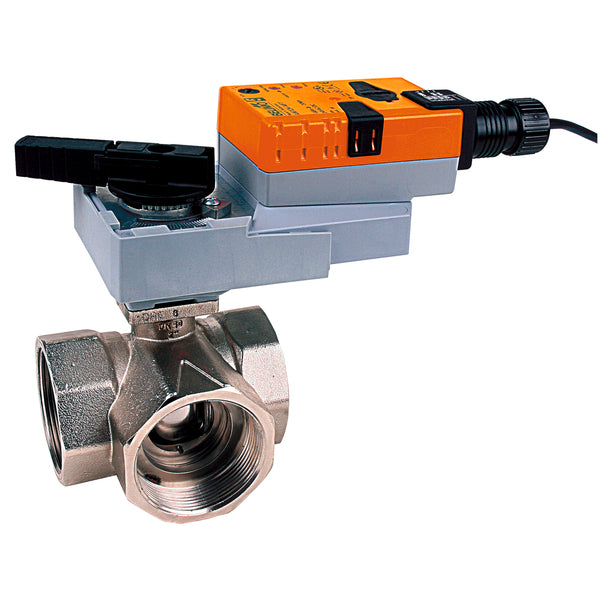

Belimo B340+ARB24-SR Characterized Control Valve with Modulating Actuator
Part #:
B340+ARB24-SR
Manufactured by:
Belimo
- Regular price
- $727.00
- Sale price
- $727.00
- Regular price
-
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Belimo B340+ARB24-SR is a 3-way Characterized Control Valve assembly with a modulating non-spring return actuator. It ...
Read more
We accept:
Couldn't load pickup availability
IQElectro 2-Year Warranty
Warranty for Product #: B340+ARB24-SR
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
Product Description P/N: B340+ARB24-SR
Description / Specifications
Description
Belimo B340+ARB24-SR is a pre-assembled 3-way Characterized Control Valve with a modulating non-spring return actuator for hydronic HVAC systems. The assembly provides proportional control of hot or chilled water flow using a 24VAC/DC actuator with a 2–10VDC control signal.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Valves |
| Part Number | B340+ARB24-SR |
| Subcategory | Control Valve |
| Product Type | Characterized Control Valve with Actuator |
| Valve Model | B340 |
| Actuator Model | ARB24-SR |
| Valve Configuration | 3-Way |
| Valve Size | 1-1/2 in (DN40) |
| Flow Coefficient (Cv) | 37 |
| End Connection | Internal NPT Female |
| Application | Hot and Chilled Water Flow Control |
| Actuator Type | Non-Spring Return |
| Supply Voltage | 24VAC/DC |
| Frequency | 50/60Hz |
| Control Signal | 2–10VDC |
| Position Feedback | 2–10VDC |
| Control Type | Modulating |
| Valve Body Material | Nickel-Plated Forged Brass |
| Ball Material | Stainless Steel |
| Maximum Media Temperature | 250°F (120°C) |
| Weight | 6.40 lbs |
Information About B340+ARB24-SR
Key Features:
- Characterized Flow Control: Provides controlled flow characteristics for stable hydronic system operation.
- 3-Way Configuration: Supports compatible mixing or diverting HVAC applications.
- Modulating Operation: Uses a 2–10VDC signal for proportional valve positioning.
- Position Feedback: Provides a 2–10VDC feedback signal for position monitoring.
- Non-Spring Return: Maintains its last actuator position when supply power is removed.
- Hydronic Compatibility: Designed for hot and chilled water HVAC applications.
- Durable Valve Construction: Uses a forged brass body with stainless steel internal components.
- Pre-Assembled Design: Combines the valve and actuator into a ready-to-install control assembly.
The B340+ARB24-SR delivers precise modulating flow control for compatible commercial hydronic HVAC systems.
